Pipe sleeve with 6 fastening straps
Item no. 7202209 | EAN 4012195856689
- Product description
-

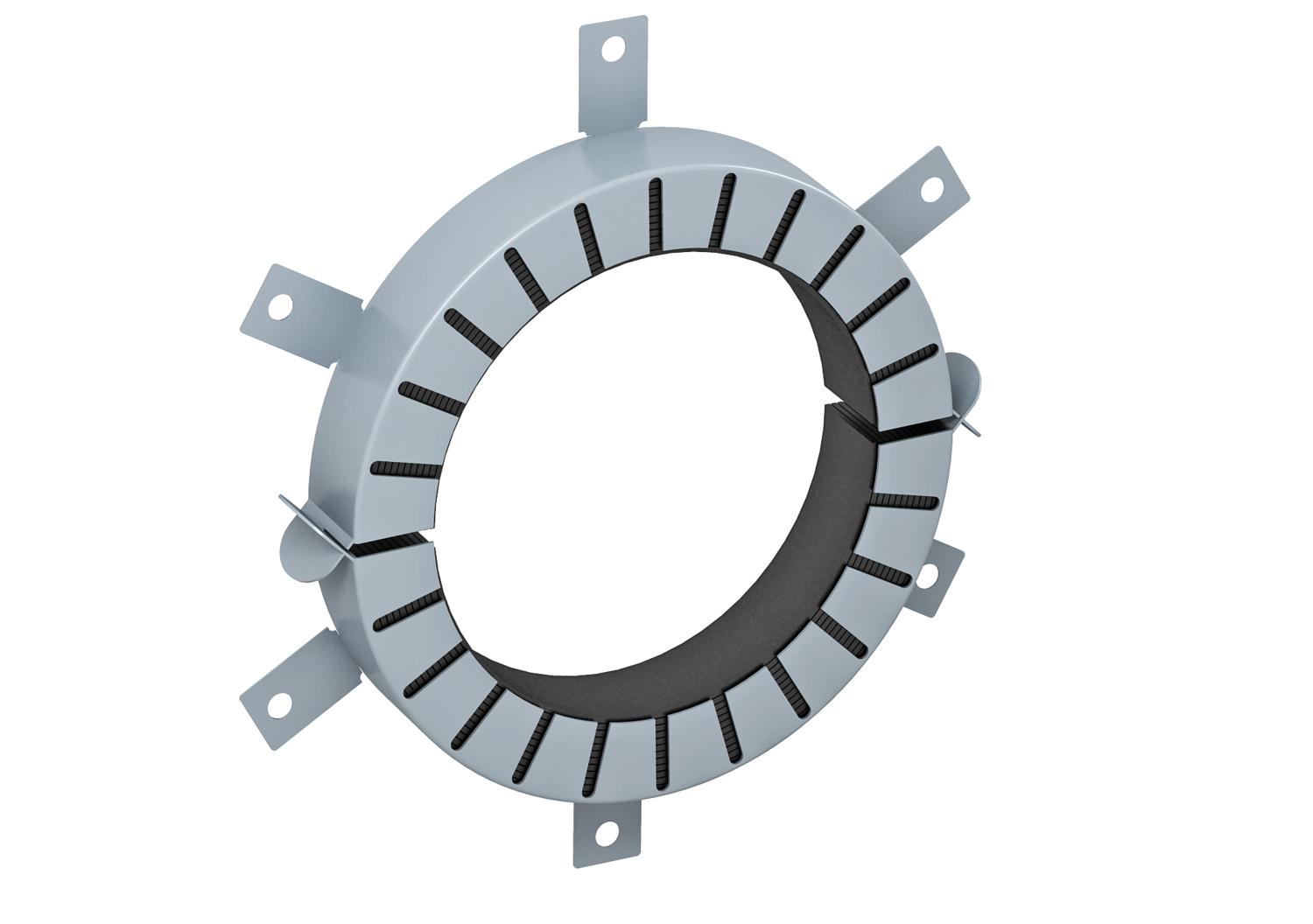

Product descriptionPipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
-
- Technical data
-
Technical data

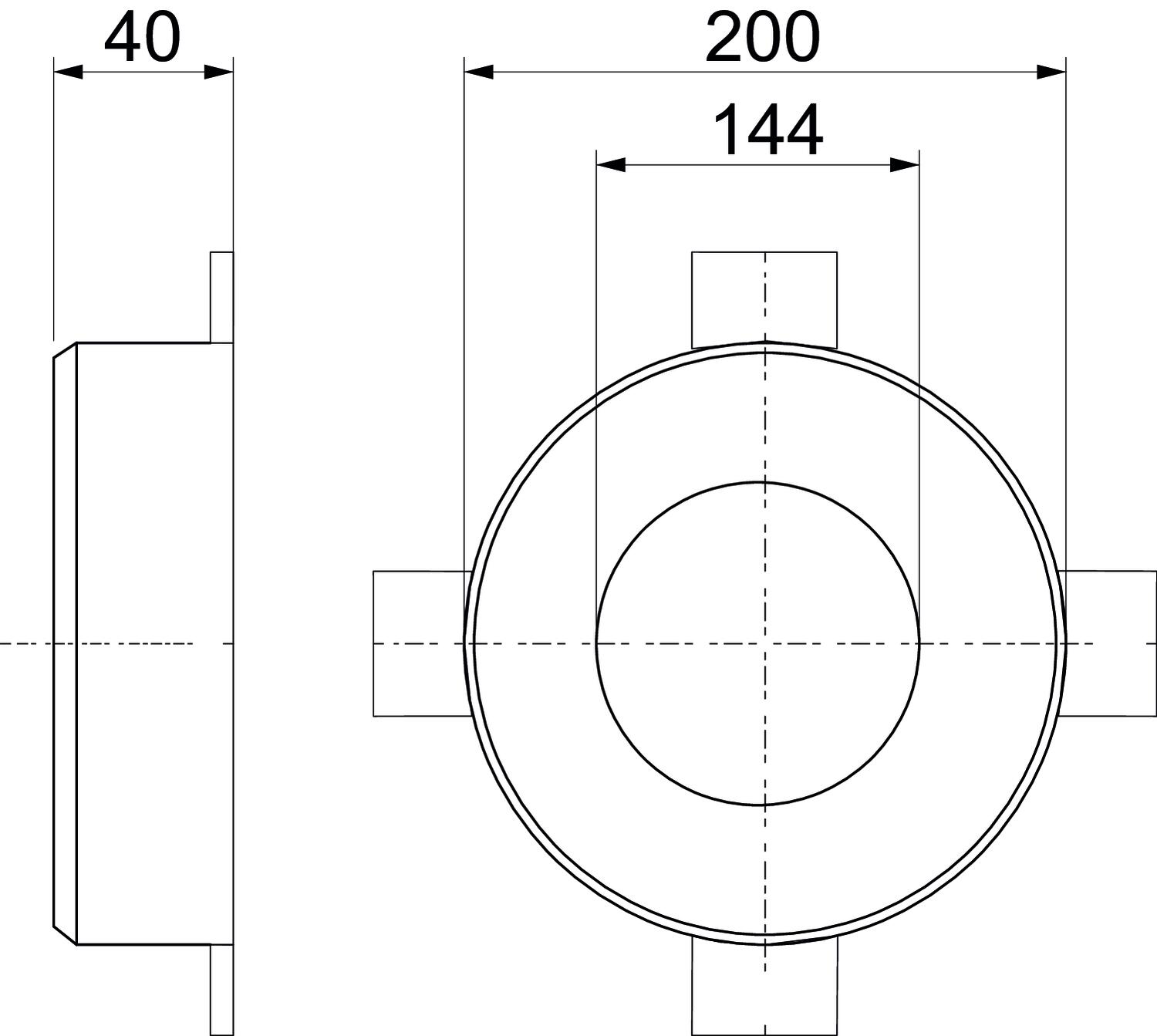

Accessories required yes Colour Grey Dimension Ø140mm Dimension d 144 mm Dimension d min. 200 mm Dimension h 40 mm For pipe diameter, max. 142 mm For pipe diameter, min. 140 mm Height 40 mm Length 200 mm Material Intumescent material Width 200 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Insulation layer creator in a cartridge
DSX-K 7202300 1 piece
Identification plate DE
KS-S DE 7205425 1 piece - Downloads
-
Data sheet TCX-140 / 7202209 , 0.22MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity TCX-140 / 7202209 , 0.11MB , pdfDeclaration of performance TCX-140 / 7202209 , 0.73MB , pdfDeclaration of performance TCX-140 / 7202209 , 0.78MB , pdfREACH Declaration of conformity TCX-140 / 7202209 , 0.12MB , pdfRoHS Declaration of conformity TCX-140 / 7202209 , 0.12MB , pdfApproval certificate European Technical Approval, PYROCOMB® , 0.13MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfSafety data sheet Safety data sheet, PYROCOMB® pipe sleeve , 0.06MB , pdf
