- Product description
-
Product description

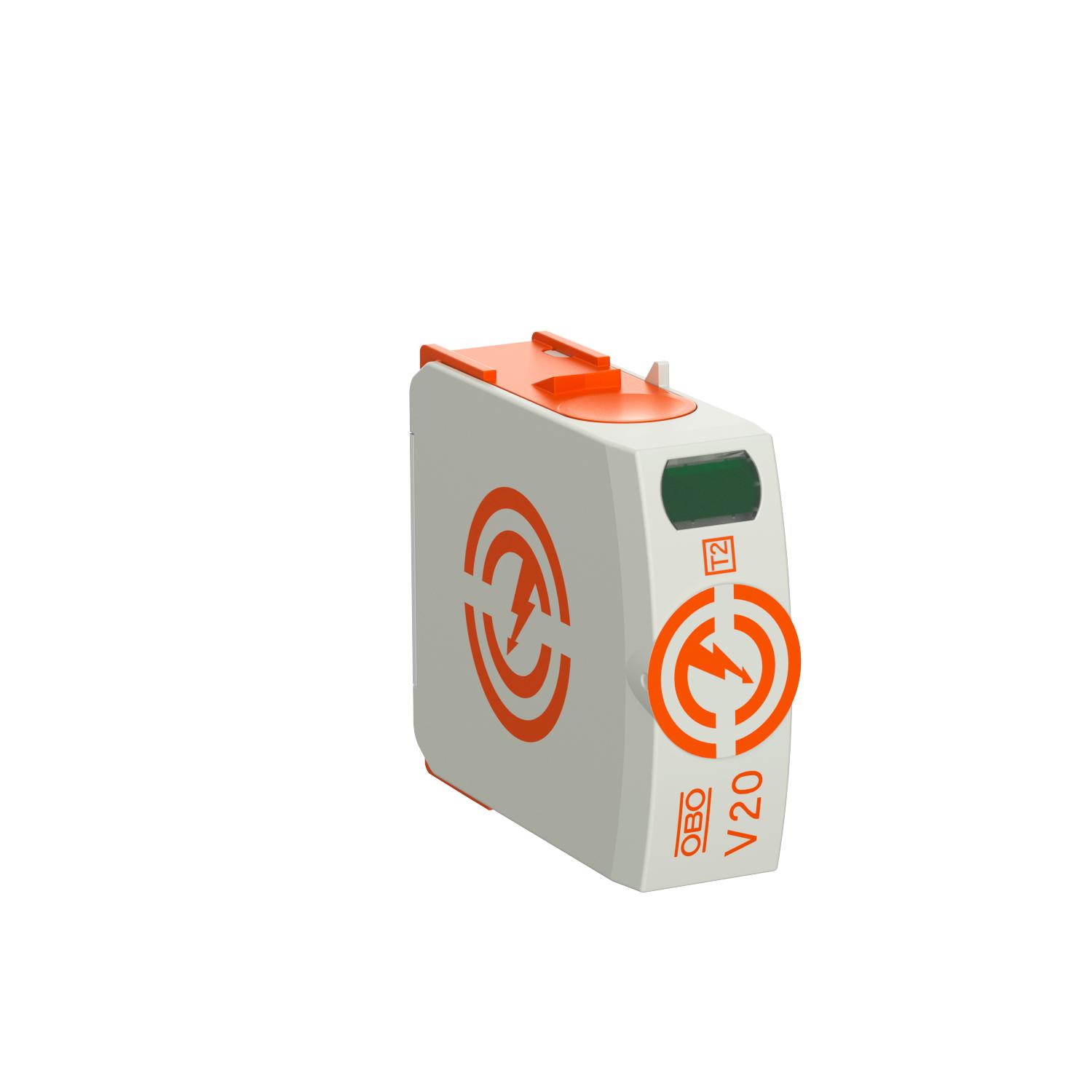

Surge arrester, type 2
• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors

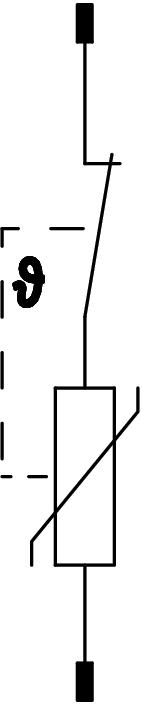

• Modular, plug-in arrester with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic (UL 94 V-0)
- Technical data
-
Technical data
Approvals VDE Blow-out no Dimension 75V Housing material surge protection components PA UL 94 V-0 Installation type On basic element Integrated back-up fuse no Maximum continuous voltage (L-N) 75 V Maximum continuous voltage AC 75 Maximum discharge current (8/20 μs) 40 kA Maximum discharge current (8/20 μs) [L-N] 40 kA Minimum distance 1,5 mm Network form Other Nominal discharge current (8/20 µs) 20 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal voltage AC (50/60 Hz) 60 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 1 Pole version 1 Protection level [L-N] ≤0,5 Protection rating IP20 Remote signalling no Residual voltage [L-N] @ 1 kA 0,3 kV Residual voltage [L-N] @ 5 kA 0,4 kV Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff Short-circuit resistant yes Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II SPD to UL 1449 Type 4 Test class, type 2 yes - All types
- Downloads
-
Data sheet V20-0-75 / 5095360 , 0.26MB , pdfDeclaration of conformity V20-0-75 / 5095360 , 0.11MB , pdfLabel approval VDE symbol approval, V20 , 0.12MB , pdfLabel approval UL certificate, V20 and V50 , 0.26MB , pdfLabel approval ÖVE certificate V20 series , 0.43MB , PDFMounting instructions Mounting instructions, V20-...-75 , 0.06MB , pdfMounting instructions Info tecniche V20-...-75 , 0.08MB , pdf
