Plug-in seal for pipes, light grey
Item no. 2011546 | EAN 4012195246954
- Product description
-
Product descriptionPlug-in seal for junction boxes for direct insertion of metric pipes
-
- Technical data
-
Technical data

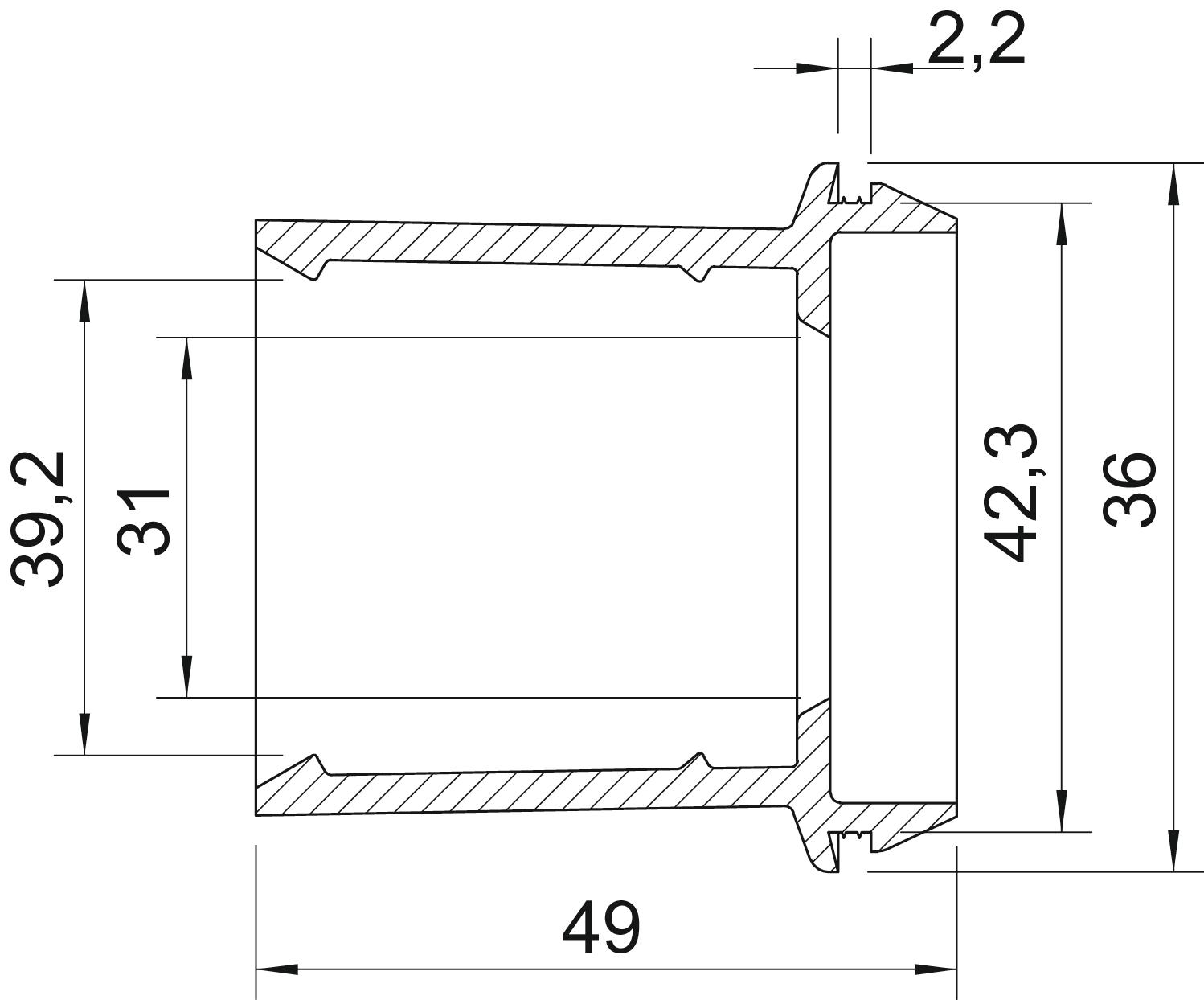

Colour Light grey; RAL 7035 Dimension Ø40/32-40 Dimension A 2,2 mm Dimension D1 46 mm Dimension D2 42,3 mm Dimension D3 31 mm Dimension D4 39,2 mm Dimension L 49 mm for diameter, max. 40 mm for diameter, min. 32 mm for wall thickness, max. 2,2 for wall thickness, min. 2,2 Halogen-free yes Material Thermoplastic elastomer Nominal diameter 40 mm Protection rating IP55 Size M40 Version for Open - All types
-
All types
- Downloads
-
Data sheet EDR 40 32-40 LGR / 2011546 , 0.19MB , pdfEU declaration of conformity EDR 40 32-40 LGR / 2011546 , 0.05MB , pdfREACH Declaration of conformity EDR 40 32-40 LGR / 2011546 , 0.12MB , pdfRoHS Declaration of conformity EDR 40 32-40 LGR / 2011546 , 0.12MB , pdf
