Pressure clip for 8 cables
Item no. 2204020 | EAN 4012196624249
- Product description
-
Product description

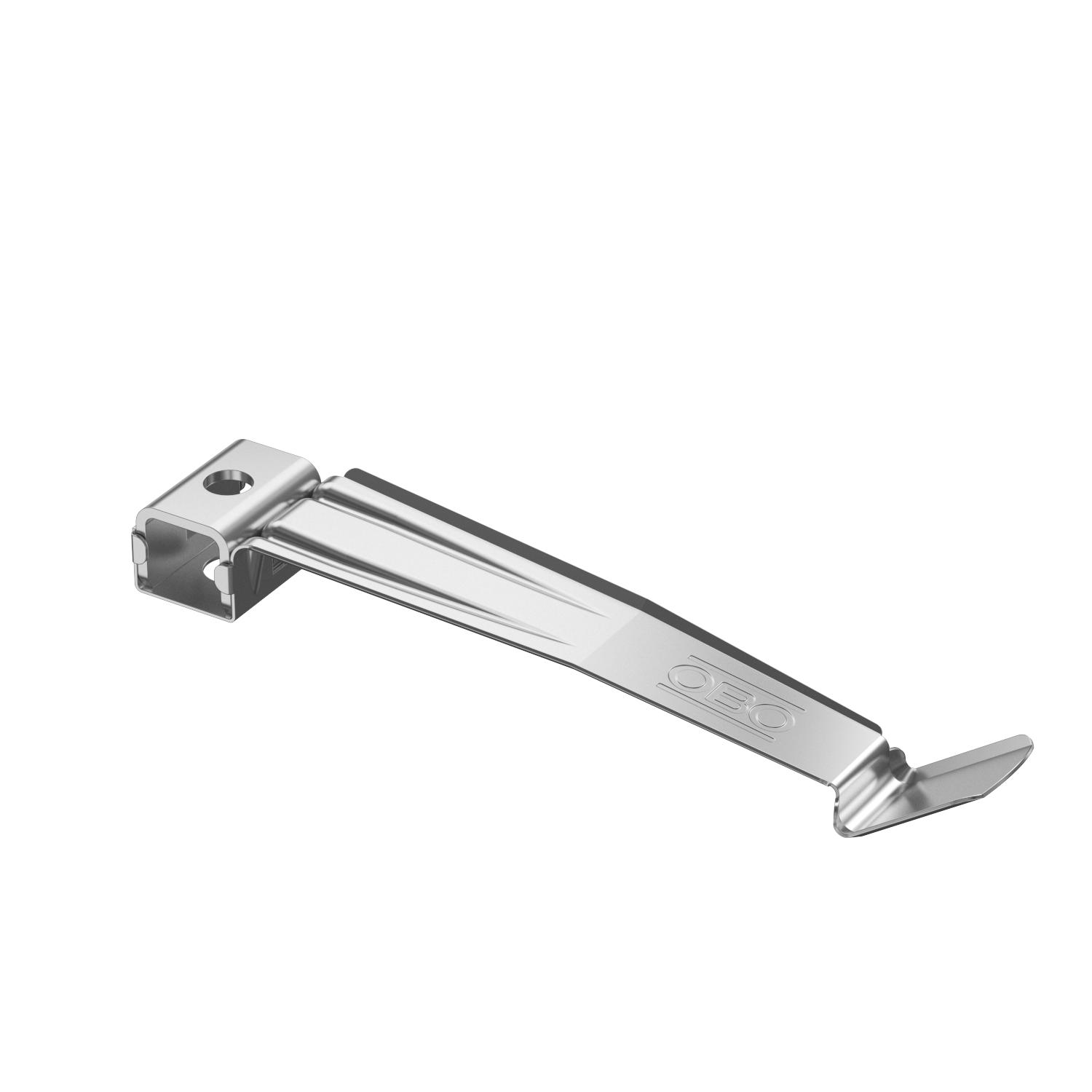

The metal pressure clip is halogen and fire load-free, and maintains a good mechanical stability even in fires. The pressure clip is also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 Part 12. The spacer 2033 D 15 x 3 G (must be ordered separately) increases the clamping height of pressure clips from 10 to 13 mm. The pressure clips are suitable for fireproof mounting above suspended fire protection ceilings in accordance with DIN 4102.
-
- Technical data
-
Technical data

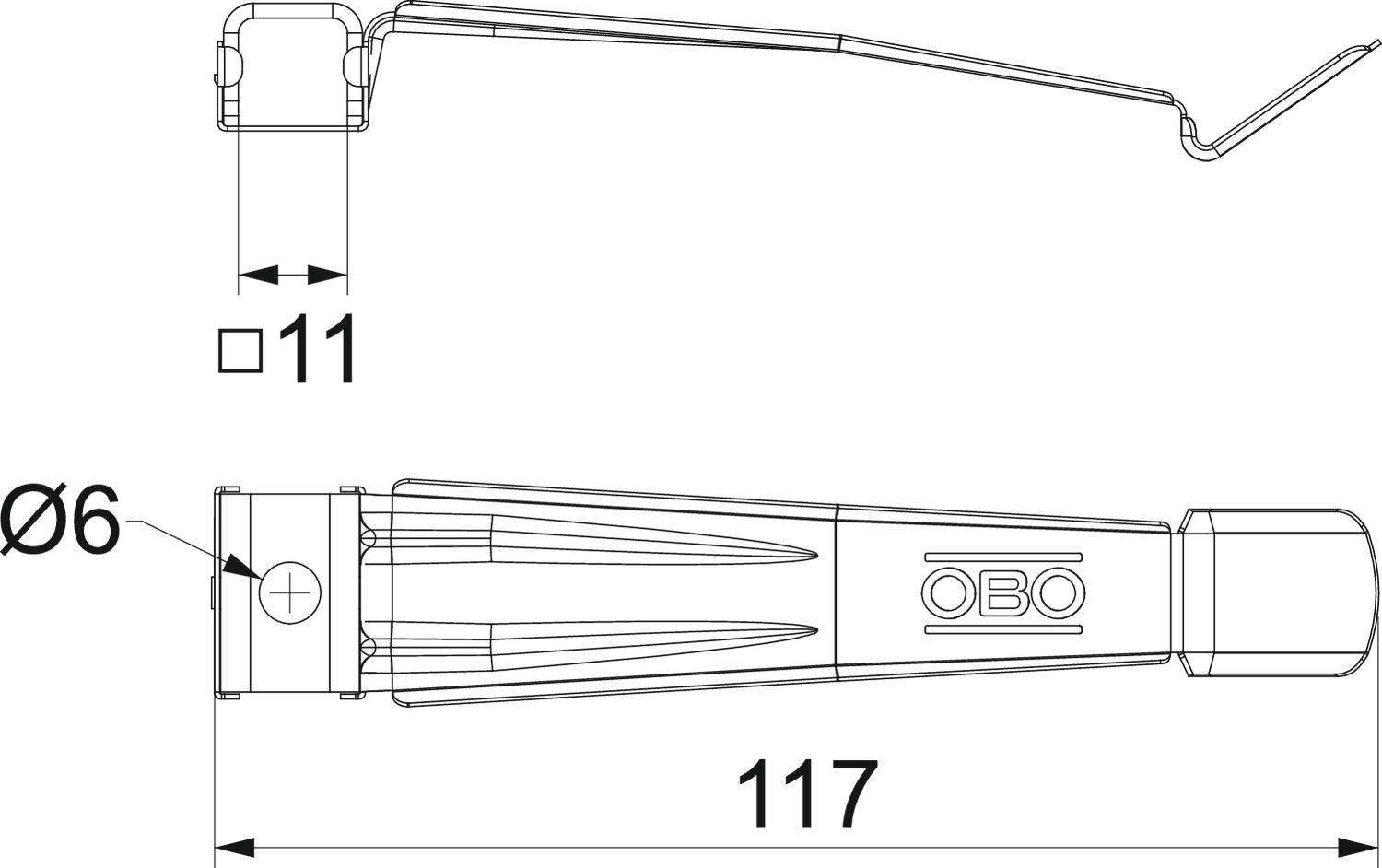

Dimension 8xNYM3x1,5 Flame-resistant version no Halogen-free yes Maintain electrical functions yes Material Stainless steel No. of conductors NYM 3 x 1.5 8 Surface Bright, treated With anchor no - All types
- Downloads
-
Data sheet 2035 M A2 / 2204020 , 0.25MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 2035 M A2 / 2204020 , 0.05MB , pdf
