Pressure clip for 8 cables 8
morepic-1 morepic-2

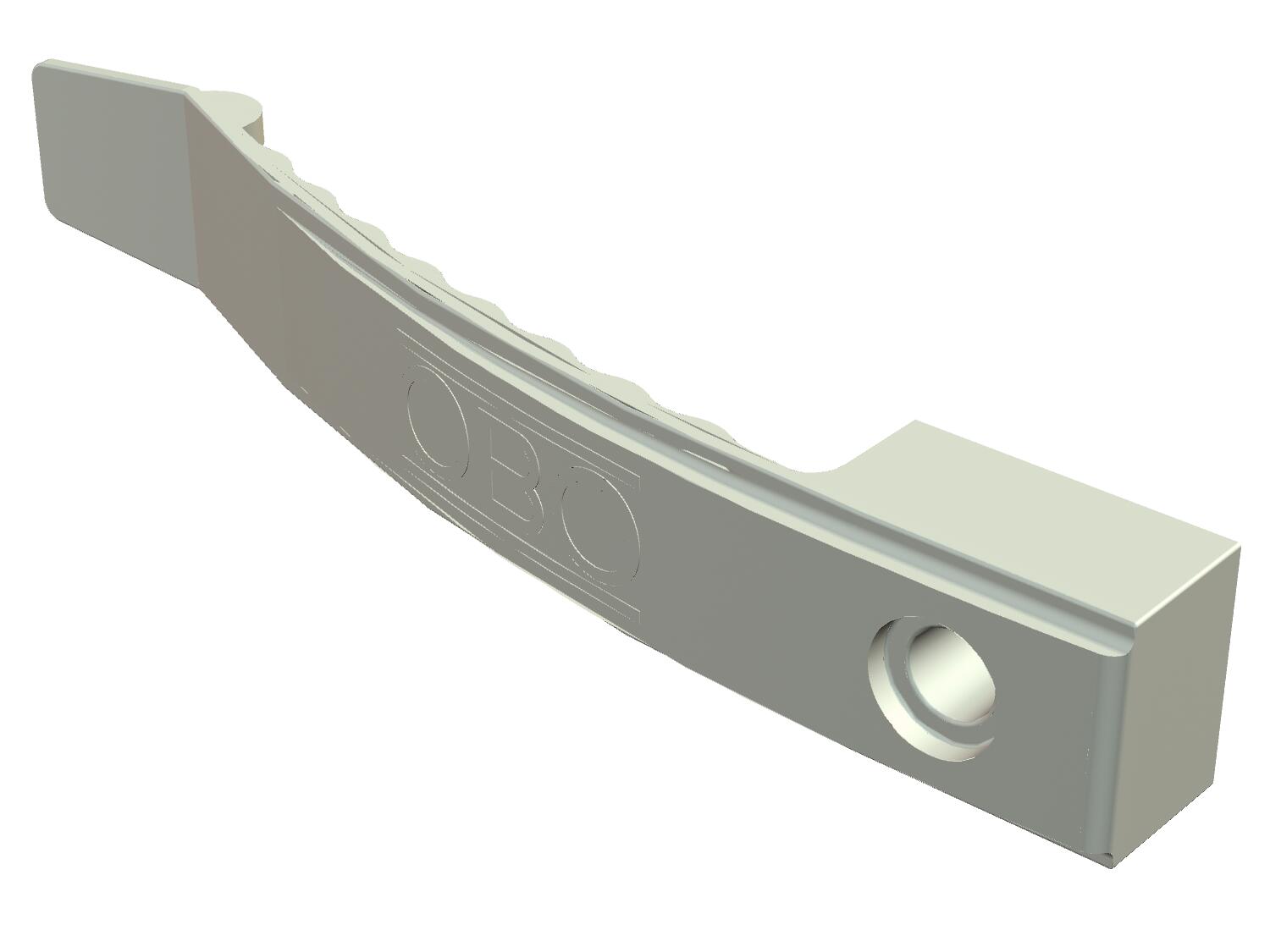

Pressure clip for 8 cables

Item no. 2204975 | EAN 4012195597674

8
Product description
Product description
Standard version for general use, e.g. on intermediate ceilings and partition walls.

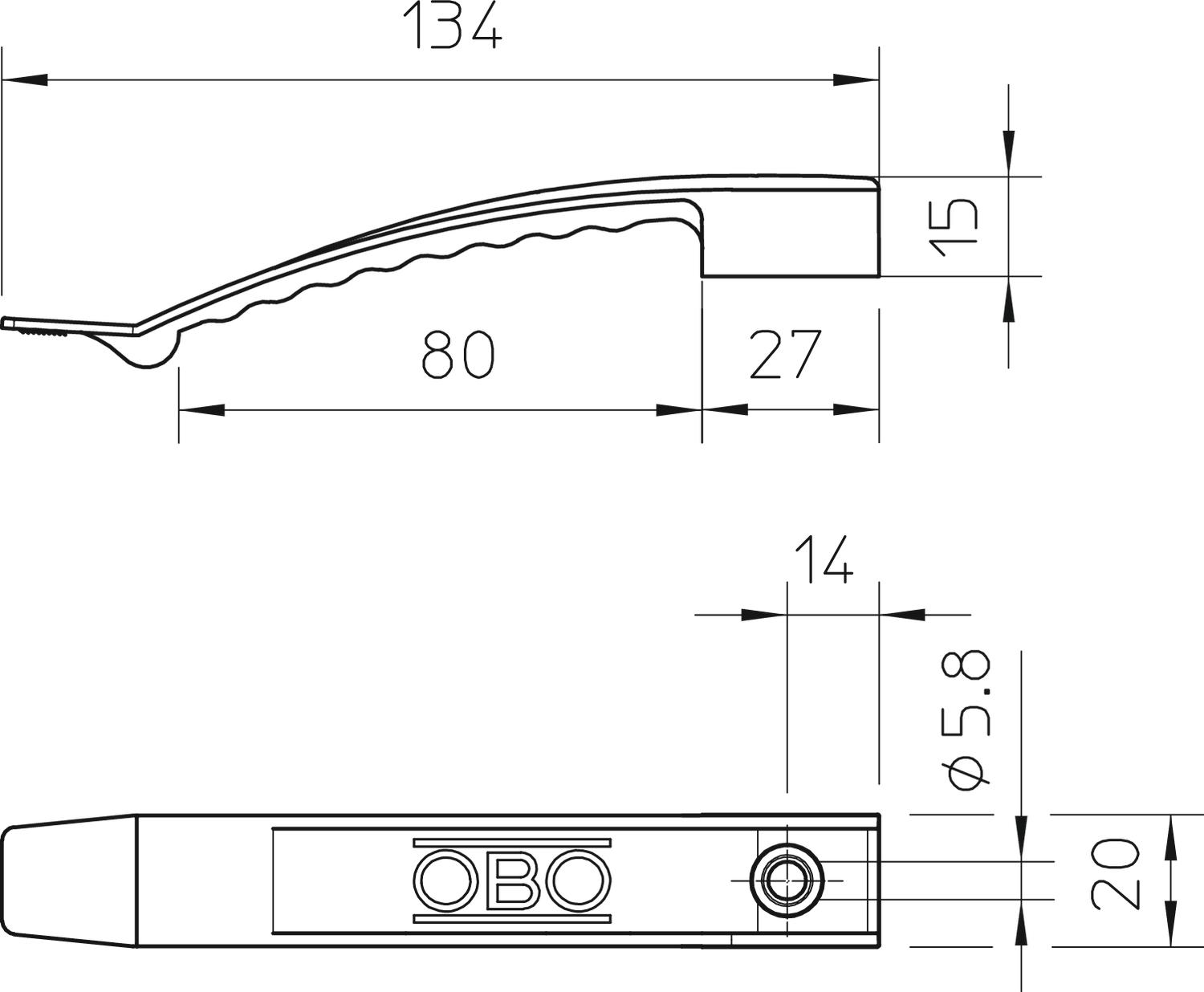

Clamping height 9 mm – with spacer 13 mm.
Fastening hole: 6 mm Ø.
2032 for max. 8 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 1x8 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 8
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2032 SP 8 2204975
100 piece
2032 8 2205017
50 piece
Downloads

Download

Download
Download

EU declaration of conformity 2032 SP / 2204975 , 0.06MB , pdf
Download
REACH Declaration of conformity 2032 SP / 2204975 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2032 SP / 2204975 , 0.13MB , pdf
Download

2032 SP / 2204975
Download
