Pressure ISO clip 3051, single, pure white 14 | 24 | Pure white; RAL 9010
morepic-1 morepic-2

Pressure ISO clip 3051, single, pure white

Item no. 2102048 | EAN 4012195584773

14 mm
24 mm
Product description
Product description
With adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 24 mm
Clamping range D, min. 14 mm
Colour Pure white; RAL 9010

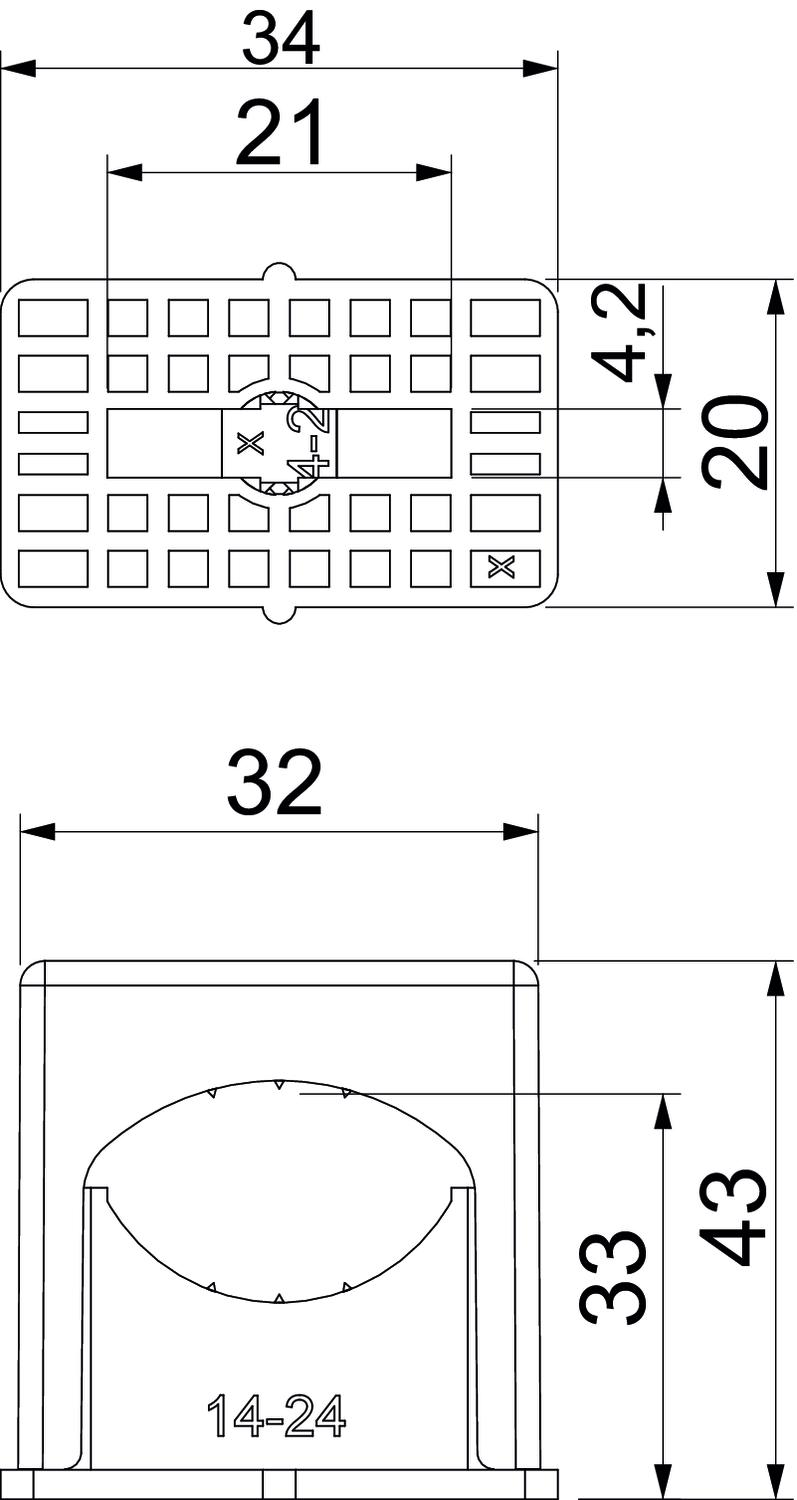

Dimension 14-24mm
Dimension a 34 mm
Dimension a1 (mm) 21 mm
Dimension b 20 mm
Dimension b1 4,2 mm
Dimension c 32 mm
Dimension d 33 mm
Dimension e 43 mm
Expandable no
Fastening type Screw hole
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Number of cables/pipes 1
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
3051 LGR 14 mm 24 mm Light grey; RAL 7035 2101033
50 piece
3051 RW 14 mm 24 mm Pure white; RAL 9010 2102048
50 piece
