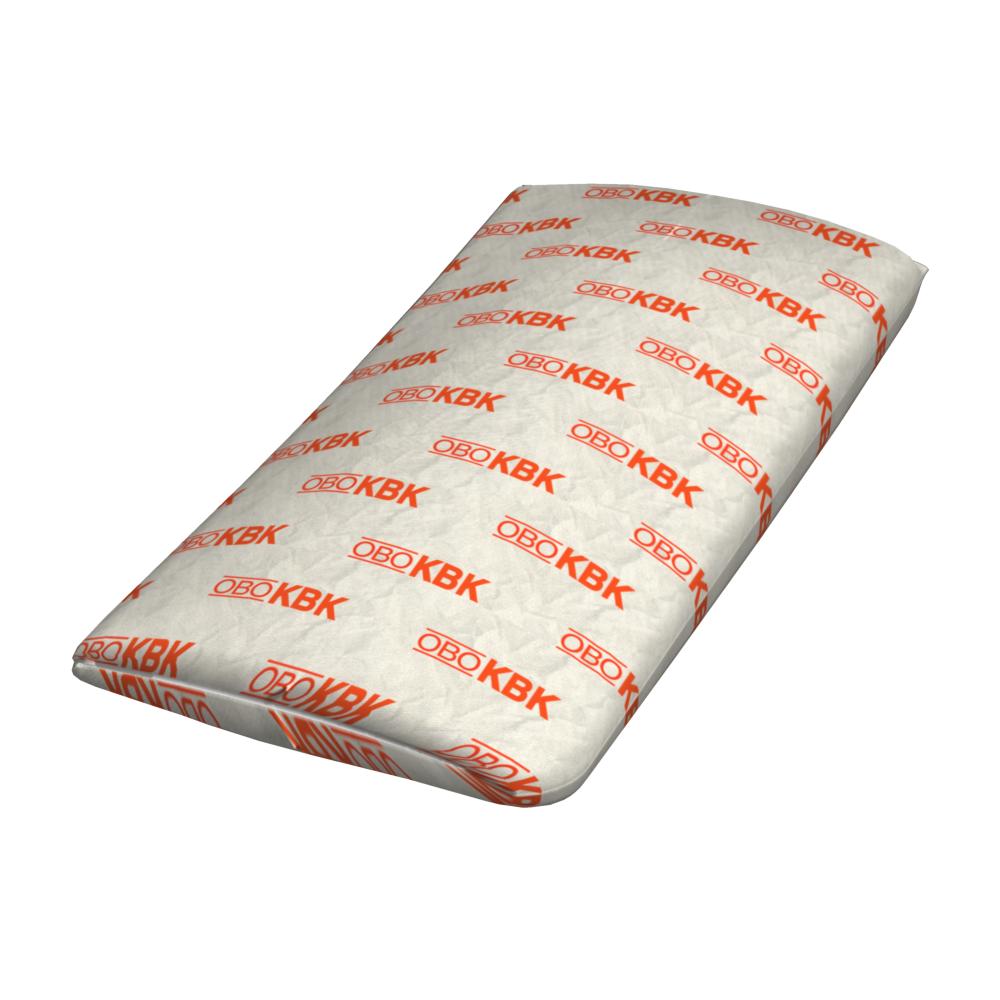

PYROBAG® fire protection cushion
Item no. 7202741 | EAN 4012196460755
- Product description
-
Product descriptionCable fire protection cushions made of dense, closely knit and mechanically solid glass mesh with a special filling. Free from mineral fibres, weatherproof and water-resistant. For interior application.
Can be stored for an unlimited period of time in dry, frost-free rooms.
-
- Technical data
-
Technical data

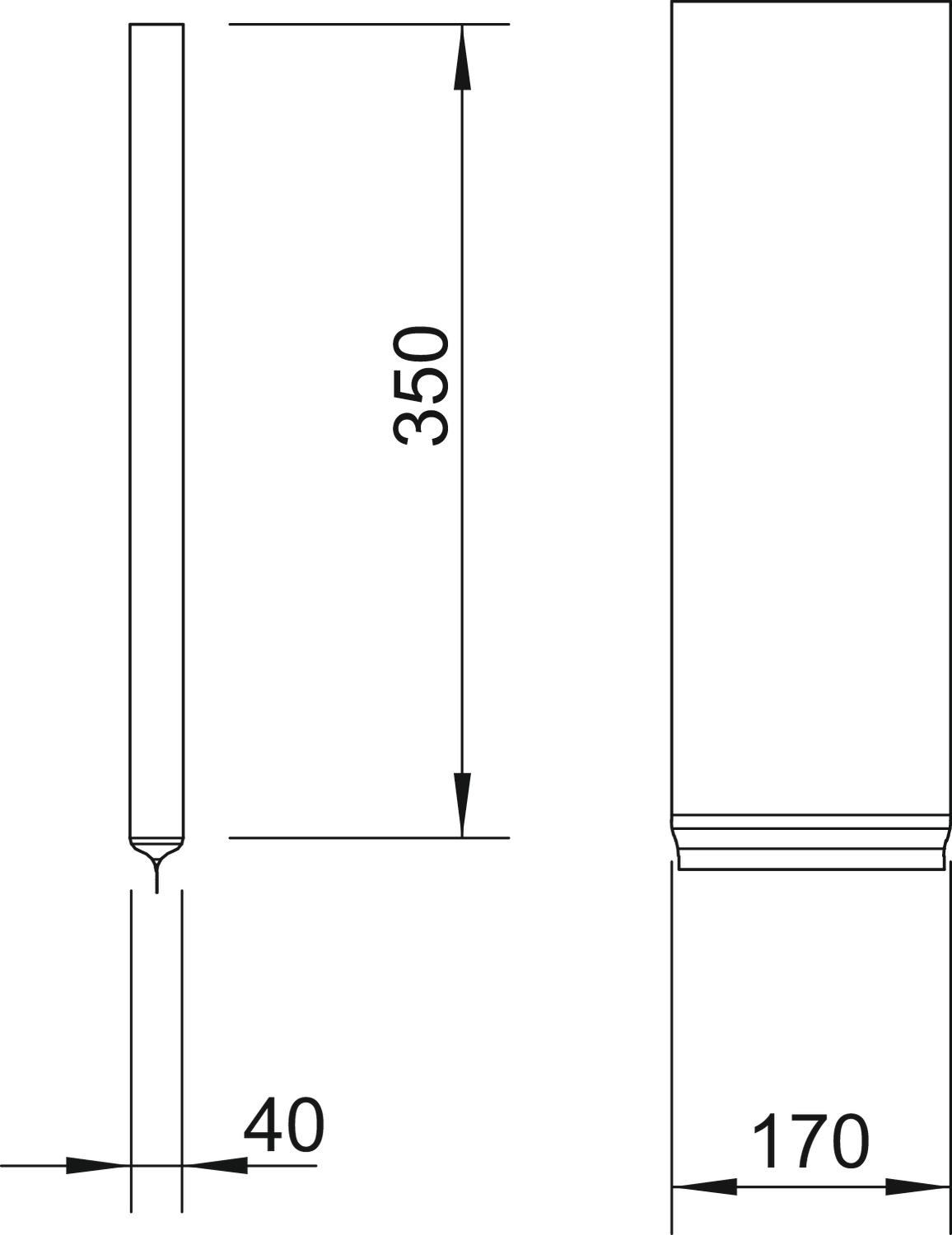

Accessories required yes Colour Grey Contents 0,63 kg Dimension 350x170x40mm Dimension B 170 mm Dimension d min. 40 mm Fire protection version Cushion insulation Height 40 mm Length 350 mm Material Glass mesh with special fire protection filling Shape Rectangular Width 170 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Calcium silicate plate
KSI-P1 7202283 1 piece
Calcium silicate plate
KSI-P2 7202904 1 piece
Calcium silicate plate
KSI-P3 7202912 1 piece
Identification plate DE
KS-S DE 7205425 1 piece - Downloads
-
Data sheet KBK-3 / 7202741 , 0.16MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity KBK-3 / 7202741 , 0.11MB , pdfDeclaration of performance KBK-3 / 7202741 , 0.76MB , pdfREACH Declaration of conformity KBK-3 / 7202741 , 0.12MB , pdfRoHS Declaration of conformity KBK-3 / 7202741 , 0.12MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions PYROBAG® bag insulation , 3.13MB , pdfSafety data sheet Safety data sheet, PYROBAG® fire protection cushion , 0.11MB , pdf
