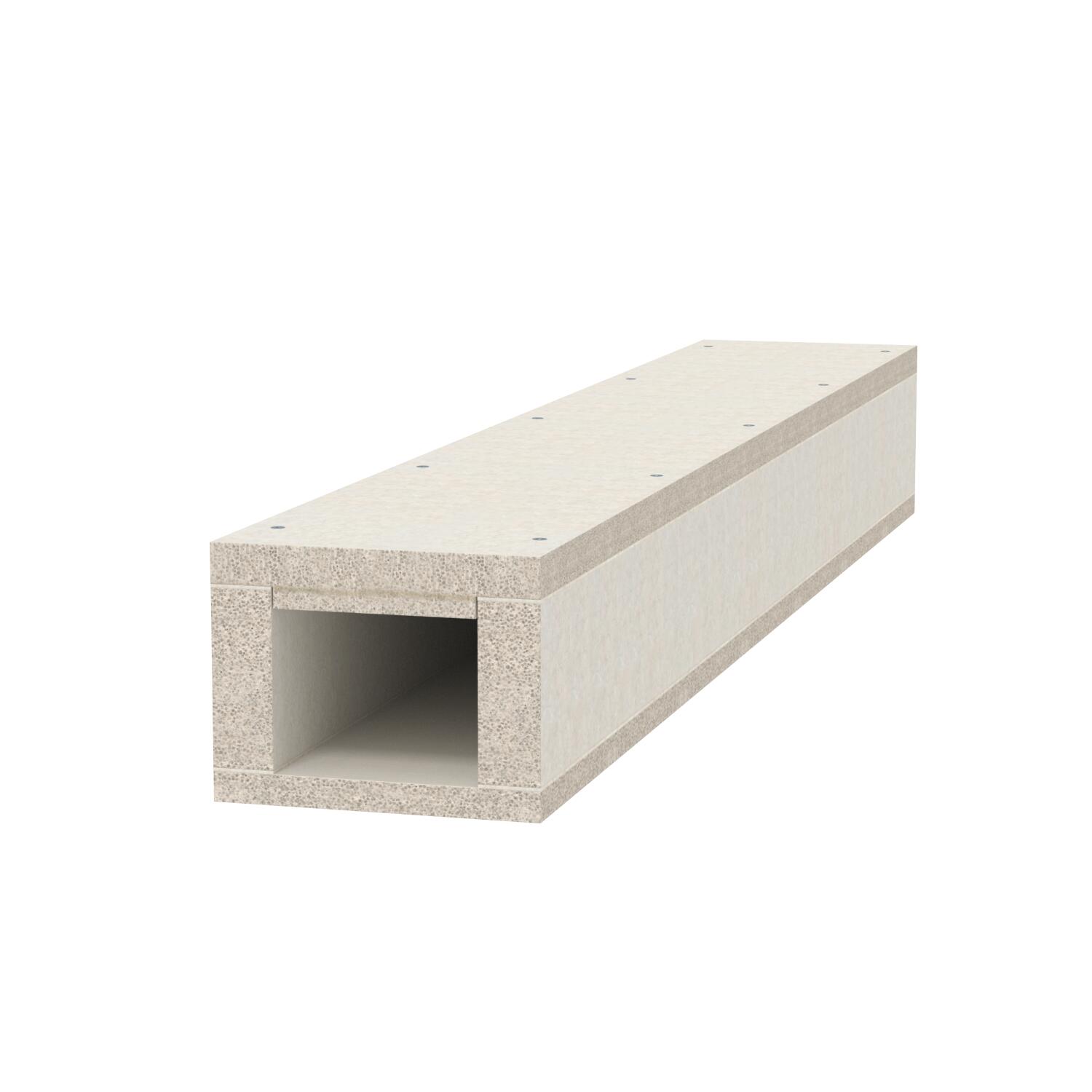

PYROLINE® Con D fire protection duct EI30 - EI60

Item no. 7215800 | EAN 4012196836390

1000 mm
Product description
Product description
Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI30 - EI60 classification as installation duct according to EN 13501-2 on the basis of tests in accordance with EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 60
Colour Grey
Cover fastening Screw

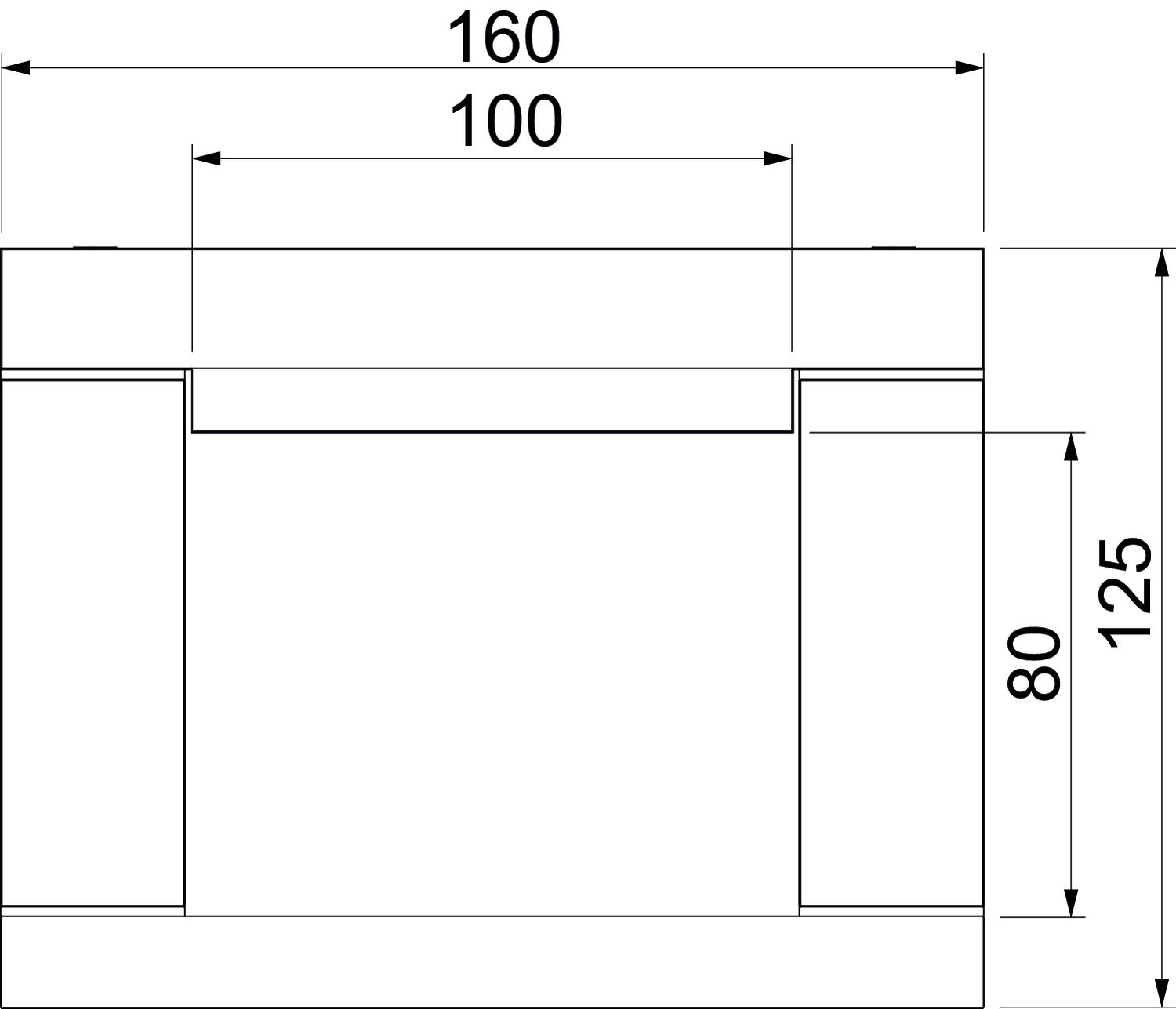

Dimension 1000x100x80
Dimension b 100 mm
Dimension B 160 mm
Dimension H 125 mm
Dimension h 80 mm
Jacketing Without
Length 1000 mm
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Number of flammable sides 3
With perforation no
All types

All types

Types Length Dimension B Dimension b Dimension H Dimension h Item no. Quantity SSU
PLCD D060810 1000 mm 160 mm 100 mm 125 mm 80 mm 7215800
1 m
PLCD D061220 1000 mm 260 mm 200 mm 165 mm 120 mm 7215804
1 m
Accessories

System accessories

Products Types Item no. Quantity SSU

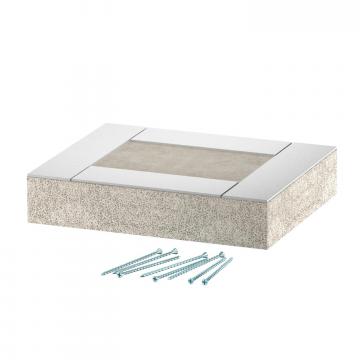

EI60 end piece for PLCD D060810 fire protection duct EI60 end piece for PLCD D060810 fire protection duct PLCD E060810 7215840
1 piece

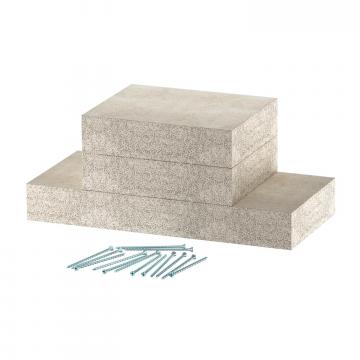

EI60 wall connection collar for PLCD D060810 fire protection duct EI60 wall connection collar for PLCD D060810 fire protection duct PLCD W060810 7215820
1 piece
Insulation layer creator in a cartridge Insulation layer creator in a cartridge DSX-K 7202300
1 piece

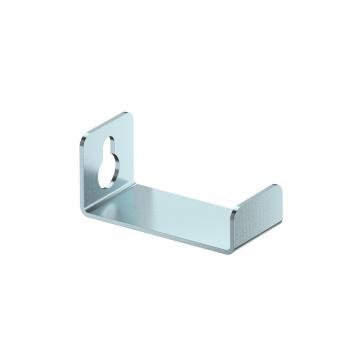

Separating bracket for wall mounting Separating bracket for wall mounting PLCD-SB0810 7215480
25 piece

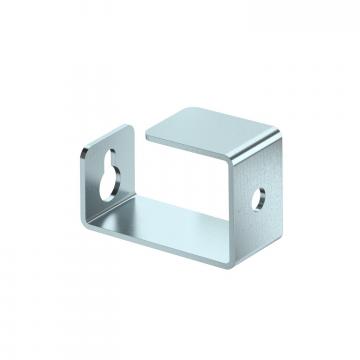

Separating clamp for ceiling mounting Separating clamp for ceiling mounting PLCD-SC0810 7215490
25 piece

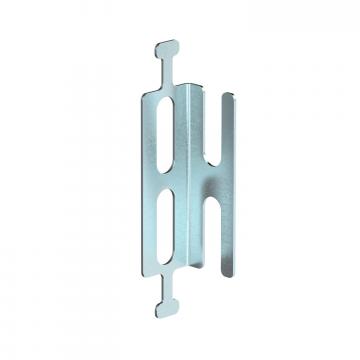

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm LHS 20 7215288
10 piece

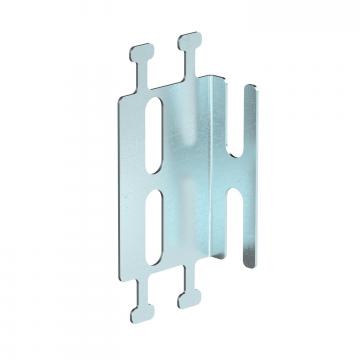

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm LHS 40 7215290
10 piece

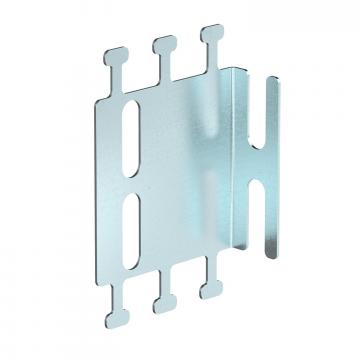

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm LHS 60 7215292
10 piece
Downloads

Download

EU declaration of conformity PLCD D060810 / 7215800 , 0.11MB , pdf
