PYROLINE® Con D PLC fire protection duct EI90 1000 | 180 | 100 | 140 | 80
morepic-1 morepic-2

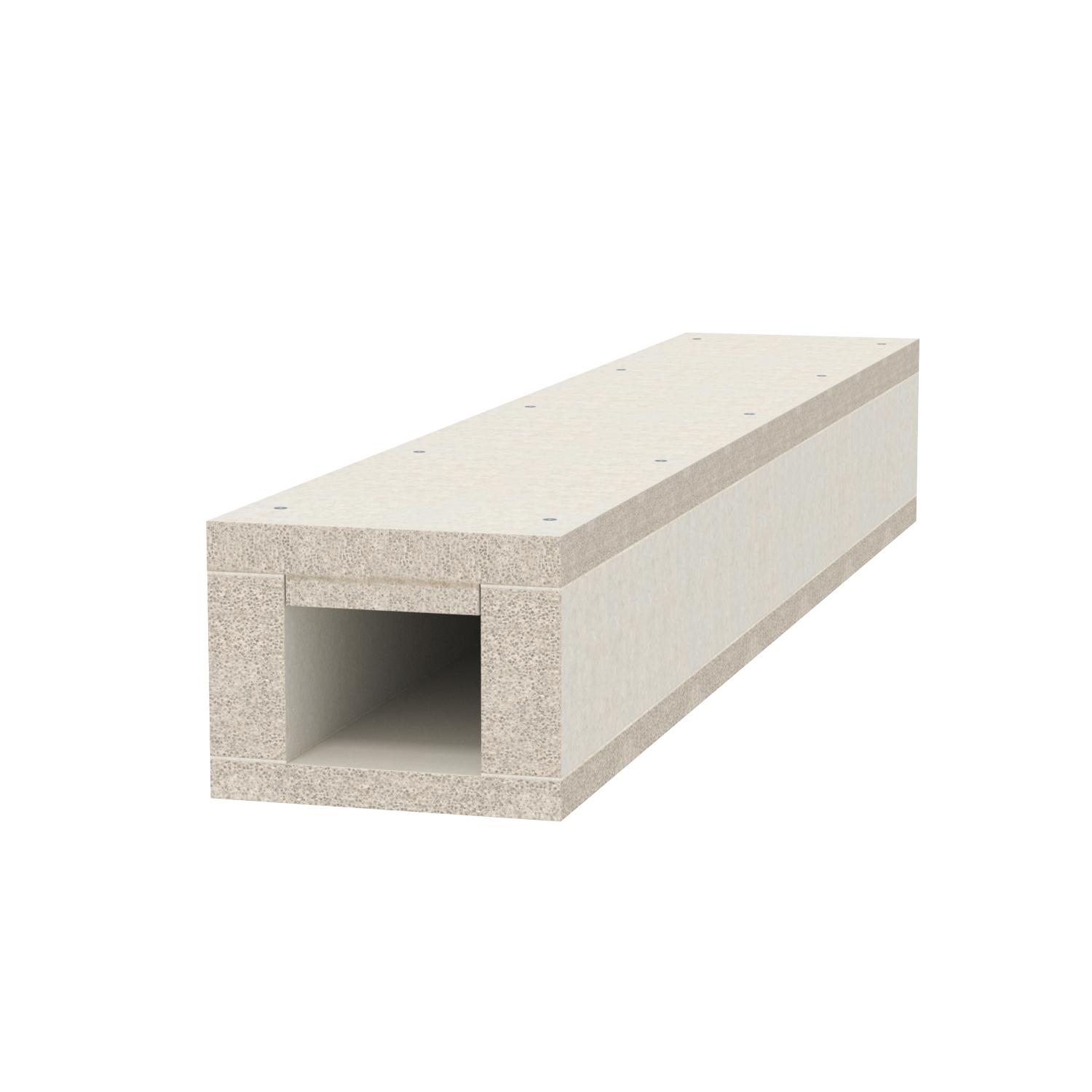

PYROLINE® Con D PLC fire protection duct EI90

Item no. 7215810 | EAN 4012196836444

1000 mm
Product description
Product description
Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI60 classification as installation duct according to EN 13501-2 on the basis of tests according to EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 90
Colour Grey
Cover fastening Screw

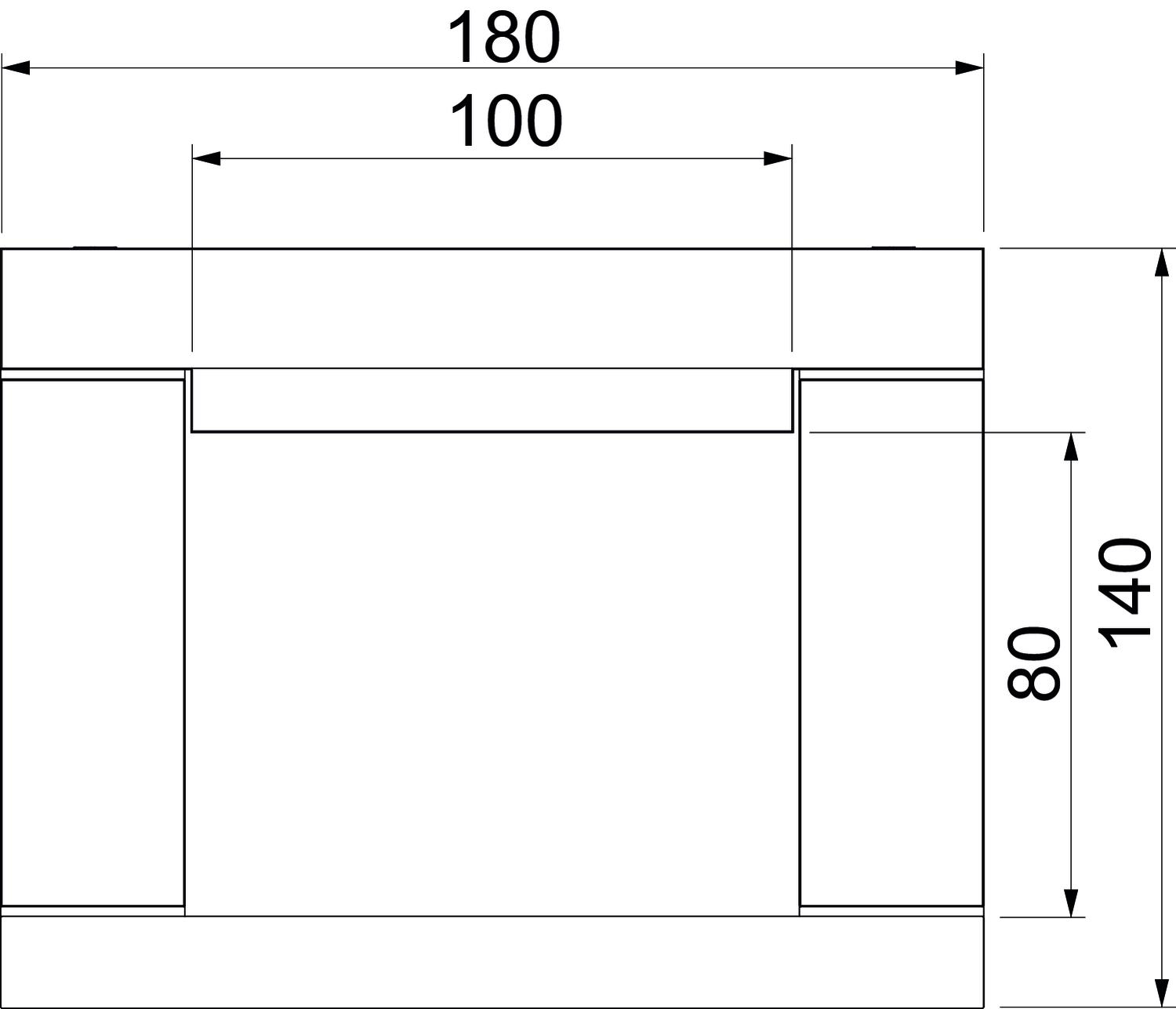

Dimension 1000x100x80
Dimension b 100 mm
Dimension B 180 mm
Dimension H 140 mm
Dimension h 80 mm
Jacketing Without
Length 1000 mm
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Number of flammable sides 3
With perforation no
All types

All types

Types Length Dimension B Dimension b Dimension H Dimension h Item no. Quantity SSU
PLCD D090810 1000 mm 180 mm 100 mm 140 mm 80 mm 7215810
1 m
PLCD D091220 1000 mm 280 mm 200 mm 180 mm 120 mm 7215814
1 m
Accessories

System accessories

Products Types Item no. Quantity SSU

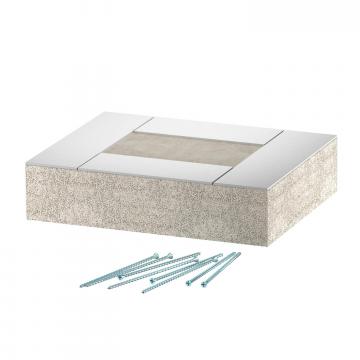

EI90 end piece for PLCD D090810 fire protection duct EI90 end piece for PLCD D090810 fire protection duct PLCD E090810 7215850
1 piece
EI90 wall connection collar for PLCD D090810 fire protection duct EI90 wall connection collar for PLCD D090810 fire protection duct PLCD W090810 7215830
1 piece
Insulation layer creator in a cartridge Insulation layer creator in a cartridge DSX-K 7202300
1 piece
Separating bracket for wall mounting Separating bracket for wall mounting PLCD-SB0810 7215480
25 piece
Separating clamp for ceiling mounting Separating clamp for ceiling mounting PLCD-SC0810 7215490
25 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm LHS 20 7215288
10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm LHS 40 7215290
10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm LHS 60 7215292
10 piece
Downloads

Download

EU declaration of conformity PLCD D090810 / 7215810 , 0.11MB , pdf
Download

No invitation to tender text is available for this product.
