PYROLINE® Con D PLC fire protection duct EI90 1000 | 280 | 200 | 180 | 120

PYROLINE® Con D PLC fire protection duct EI90

Item no. 7215814 | EAN 4012196836451

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

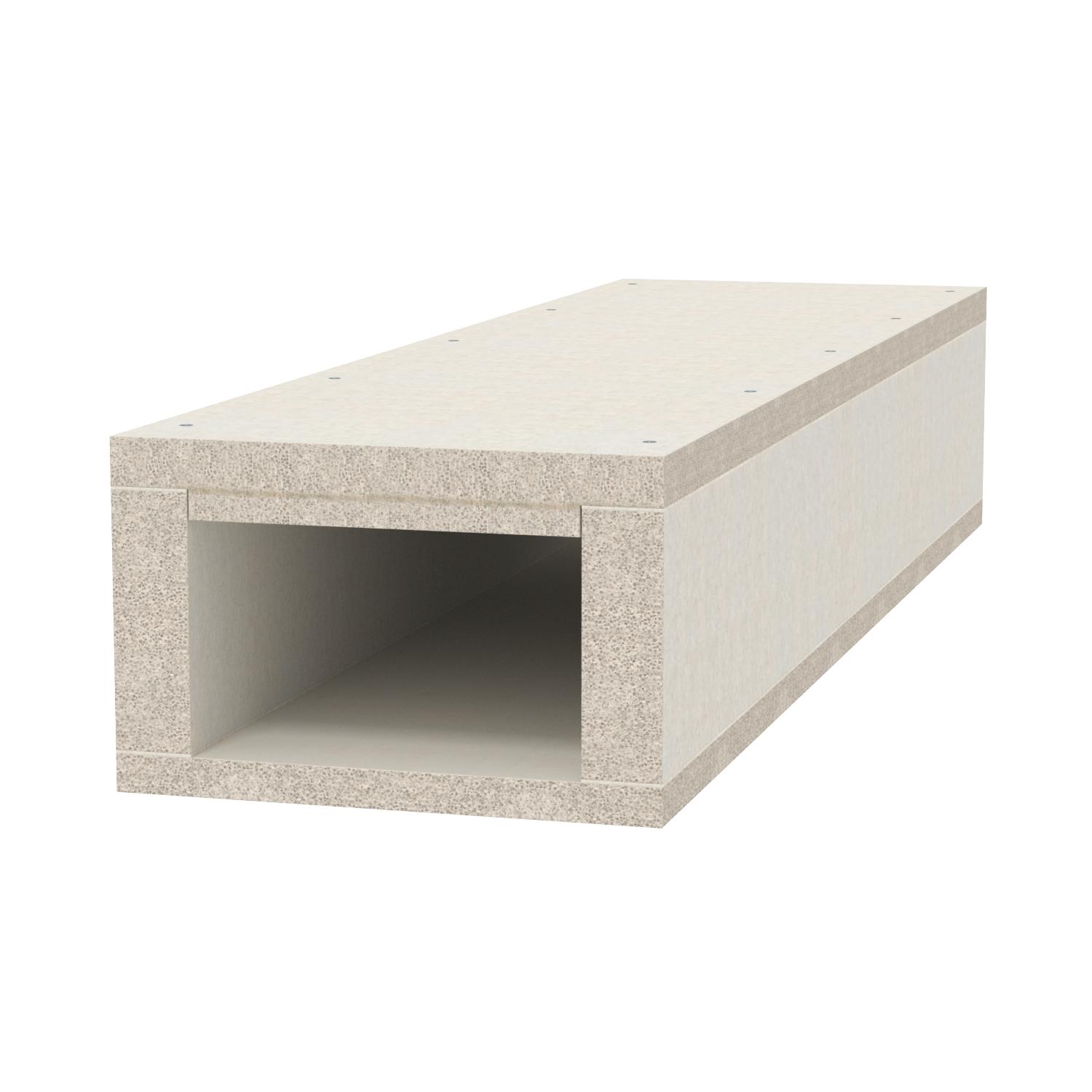

Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI60 classification as installation duct according to EN 13501-2 on the basis of tests according to EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.

Technical data

Technical data

Classification EI − installation duct	90
Colour	Grey
Cover fastening	Screw

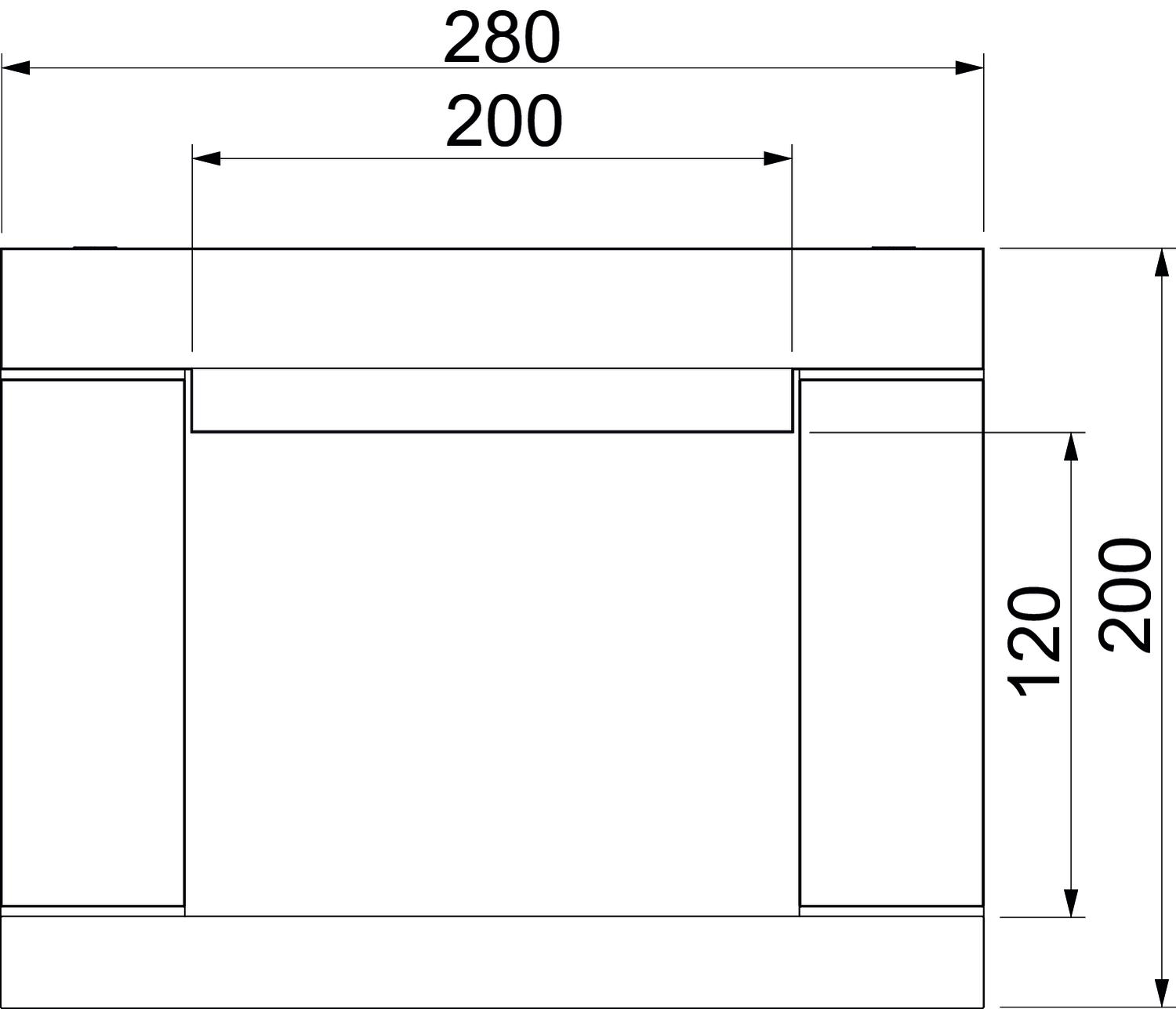

Dimension	1000x200x120
Dimension B	280 mm
Dimension b	200 mm
Dimension h	120 mm

Dimension H	180 mm
Jacketing	Without
Length	1000 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	3
With perforation	no

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.	Quantity	SSU
PLCD D090810	1000 mm	180 mm	100 mm	140 mm	80 mm	7215810	m	1 m
PLCD D091220	1000 mm	280 mm	200 mm	180 mm	120 mm	7215814	m	1 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
EI60 end piece for PLCD D060810 fire protection duct	PLCD E060810	7215840	piece	1 piece

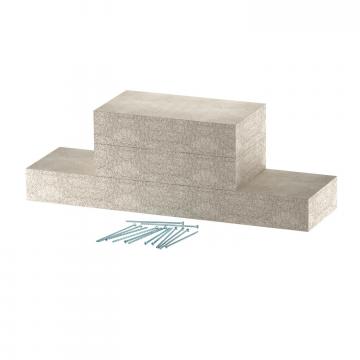

EI90 wall connection collar for PLCD D091220 fire protection duct	PLCD W091220	7215834	piece	1 piece
Insulation layer creator in a cartridge	DSX-K	7202300	piece	1 piece

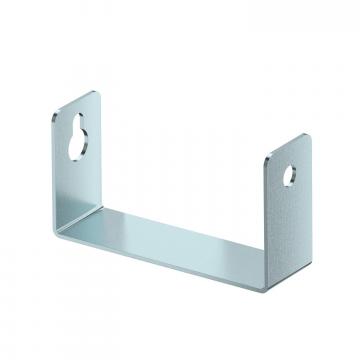

Separating bracket for wall mounting	PLCD-SB1220	7215484	piece	25 piece

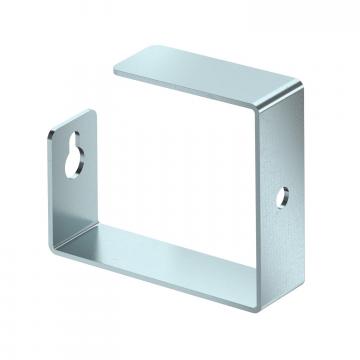

Separating clamp for ceiling mounting	PLCD-SC1220	7215494	piece	25 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288	piece	10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290	piece	10 piece
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm	LHS 60	7215292	piece	10 piece
