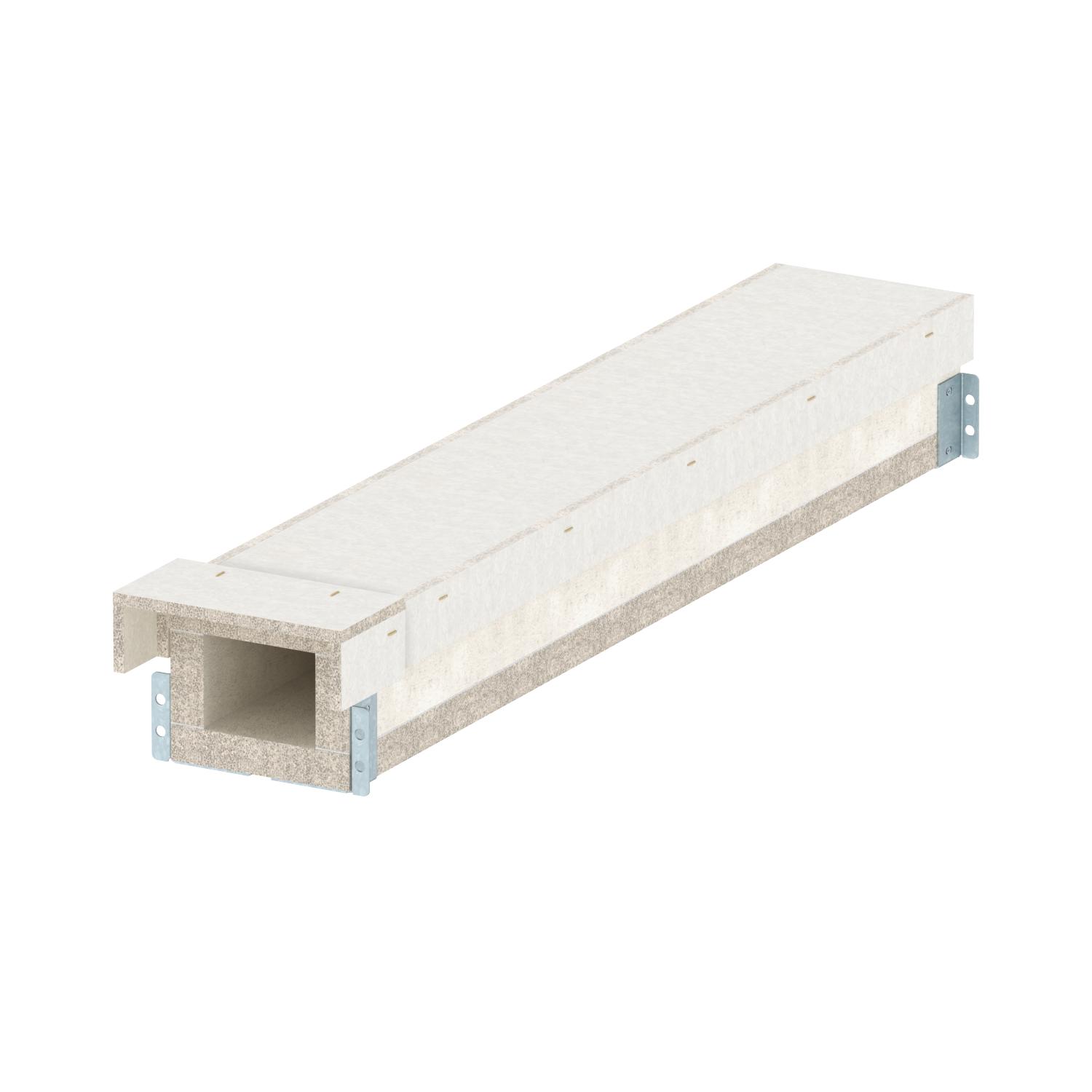

PYROLINE® Con S PLC fire protection duct EI30 - EI60

Item no. 7217860 | EAN 4012196836628

1000 mm
Product description
Product description
Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI30 - EI60 classification as installation duct according to EN 13501-2 on the basis of tests in accordance with EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct on wall brackets or as ceiling mounting with suspended supports and brackets or on a U transverse profile suspended with threaded rods. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Including connection screws and sealing strips.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Classification EI − installation duct 60
Colour Grey
Cover fastening Loose

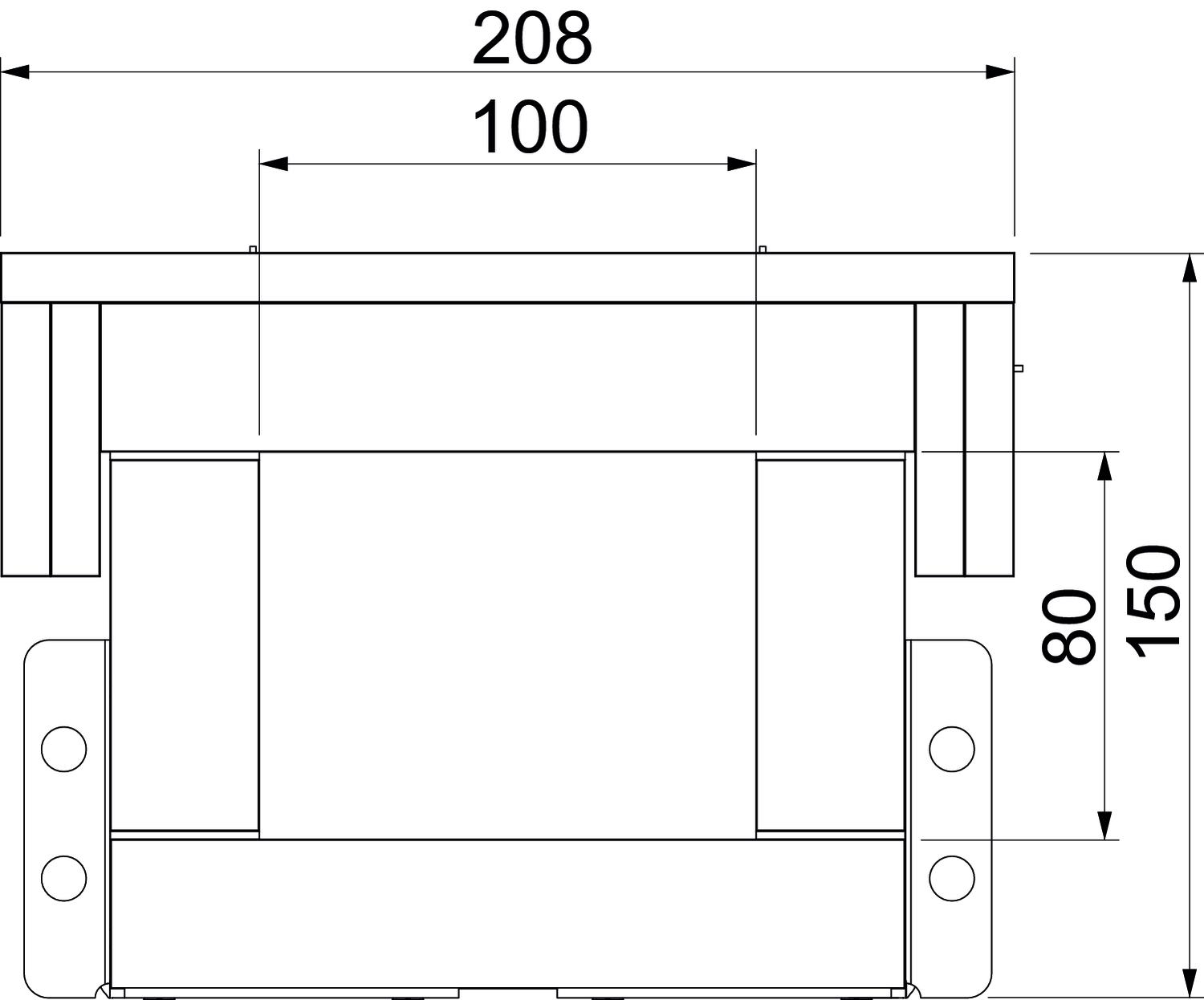

Dimension 1000x100x80
Dimension B 208 mm
Dimension b 100 mm
Dimension H 150 mm
Dimension h 80 mm
Jacketing Without
Length 1000 mm
Material Fibreglass lightweight concrete
Material of the insulation Glass-fibre lightweight concrete
Number of flammable sides 4
With perforation no
All types

All types

Types Length Dimension B Dimension b Dimension H Dimension h Item no. Quantity SSU
PLCS D060810 1000 mm 208 mm 100 mm 150 mm 80 mm 7217860
1 m
PLCS D061220 1000 mm 308 mm 200 mm 190 mm 120 mm 7217864
1 m
Accessories

System accessories

Products Types Item no. Quantity SSU

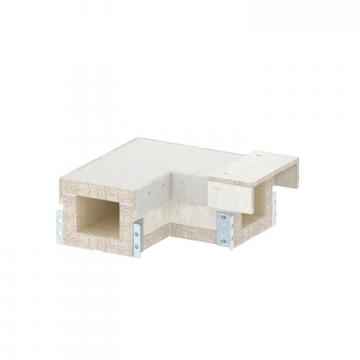

EI60 90° bend for PLCS D060810 fire protection duct EI60 90° bend for PLCS D060810 fire protection duct PLCS B060810 7217880
1 piece

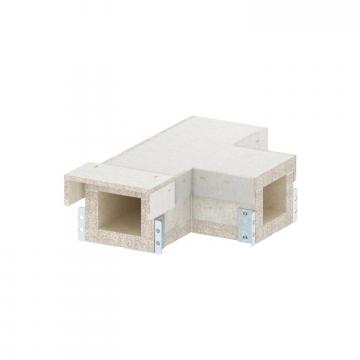

EI60 T piece for PLCS D060810 fire protection duct EI60 T piece for PLCS D060810 fire protection duct PLCS T060810 7217900
1 piece

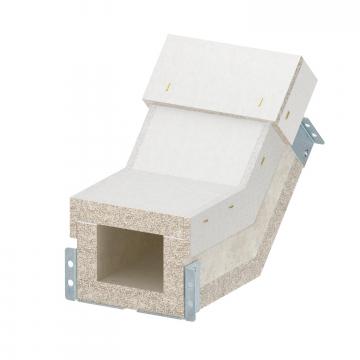

Rising vertical bend EI60 for PLCS D060810 fire protection duct Rising vertical bend EI60 for PLCS D060810 fire protection duct PLCS VR060810 7217920
1 piece

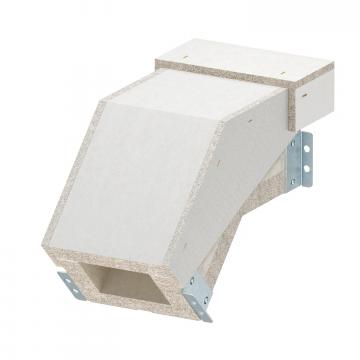

Falling vertical bend EI60 for PLCS D060810 fire protection duct Falling vertical bend EI60 for PLCS D060810 fire protection duct PLCS VF060810 7217940
1 piece

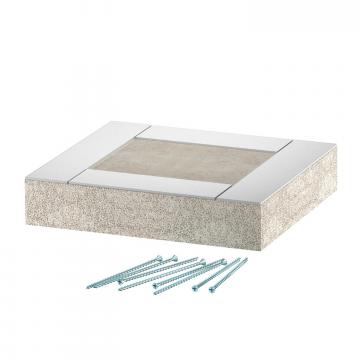

EI60 end piece for PLCS D060810 fire protection duct EI60 end piece for PLCS D060810 fire protection duct PLCS E060810 7217980
1 piece

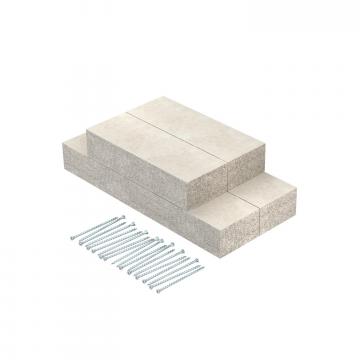

EI60 wall connection collar for PLCS D060810 fire protection duct EI60 wall connection collar for PLCS D060810 fire protection duct PLCS W060810 7217960
1 piece
Insulation layer creator in a cartridge Insulation layer creator in a cartridge DSX-K 7202300
1 piece
Separating retainer 45 FS Separating retainer 45 FS TSG 45 FS 6062033
3 m
Separating retainer 60 FS Separating retainer 60 FS TSG 60 FS 6062068
3 m
Downloads

Download

EU declaration of conformity PLCS D060810 / 7217860 , 0.11MB , pdf
