PYROLINE® Con S PLC fire protection duct EI90 1000 | 348 | 200 | 230 | 120

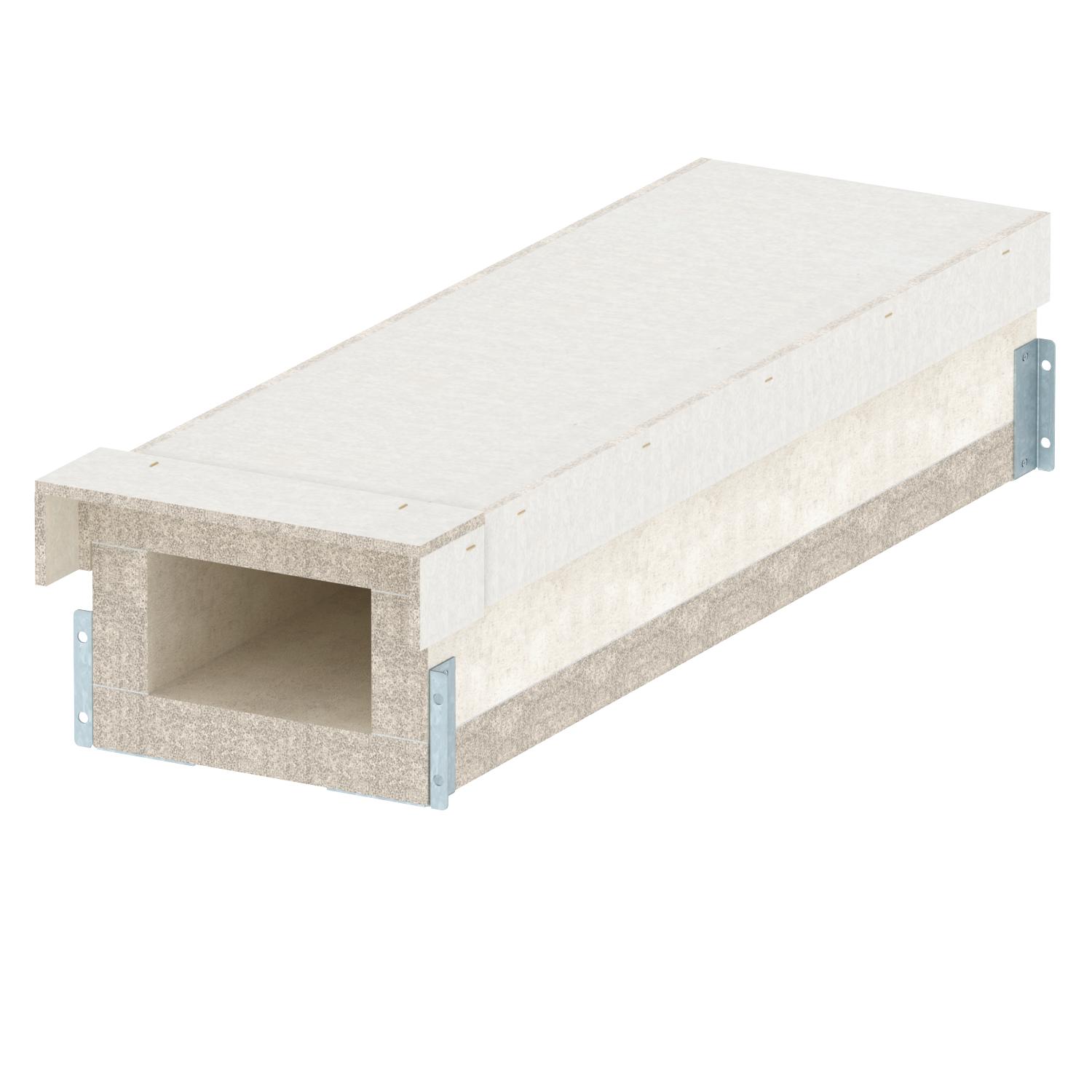

PYROLINE® Con S PLC fire protection duct EI90

Item no. 7217874 | EAN 4012196836673

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI60 classification as installation duct according to EN 13501-2 on the basis of tests according to EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct on wall brackets or as ceiling mounting with suspended supports and brackets or on a U transverse profile suspended with threaded rods. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Including connection screws and sealing strips.

Technical data

Technical data

Classification EI − installation duct	90
Colour	Grey
Cover fastening	Loose
Dimension	1000x200x120

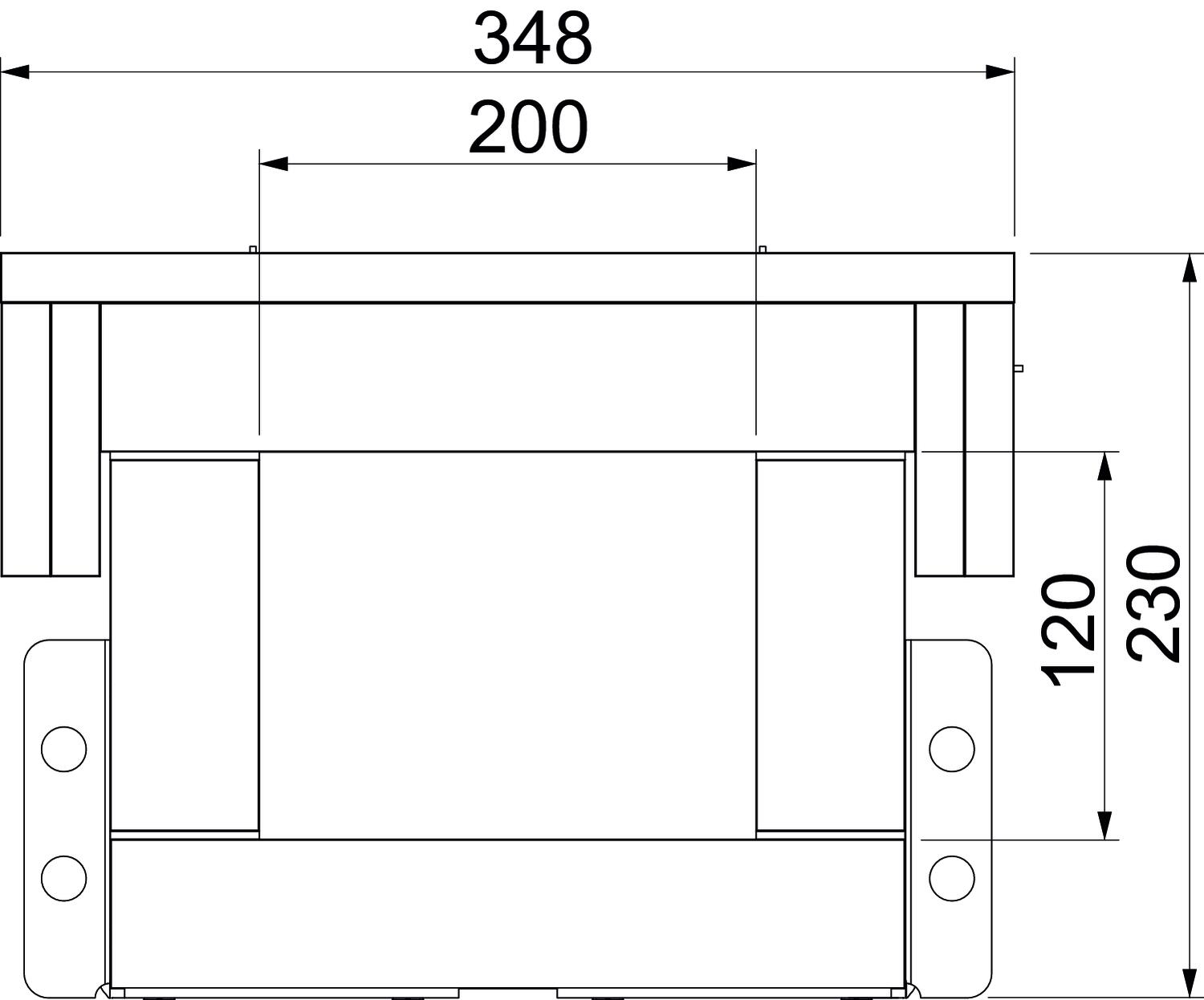

Dimension B	348 mm
Dimension b	200 mm
Dimension H	230 mm

Dimension h	120 mm
Jacketing	Without
Length	1000 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	4
With perforation	no

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.	Quantity	SSU
PLCS D090810	1000 mm	248 mm	100 mm	190 mm	80 mm	7217870	m	1 m
PLCS D091220	1000 mm	348 mm	200 mm	230 mm	120 mm	7217874	m	1 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
EI90 90° bend for PLCS D091220 fire protection duct	PLCS B091220	7217894	piece	1 piece

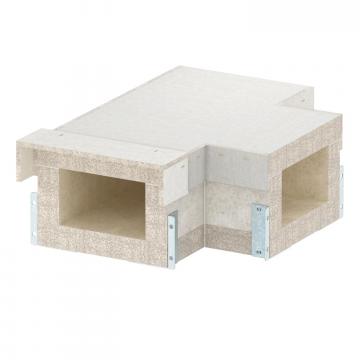

EI90 T piece for PLCS D091220 fire protection duct	PLCS T091220	7217914	piece	1 piece

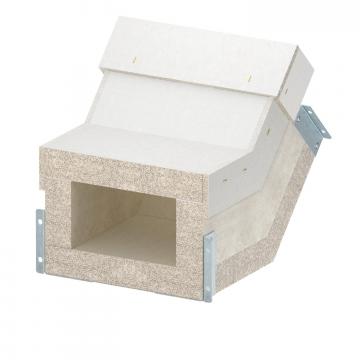

Rising vertical bend EI90 for PLCS D091220 fire protection duct	PLCS VR091220	7217934	piece	1 piece

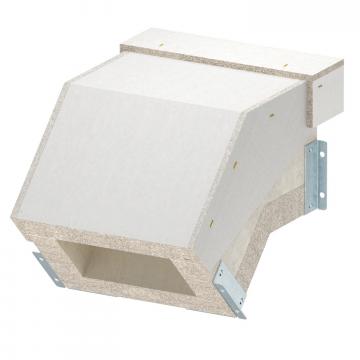

Falling vertical bend EI90 for PLCS D091220 fire protection duct	PLCS VF091220	7217954	piece	1 piece

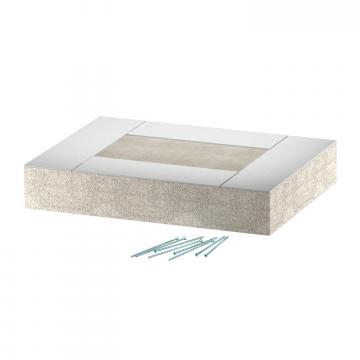

EI90 end piece for PLCS D091220 fire protection duct	PLCS E091220	7217994	piece	1 piece

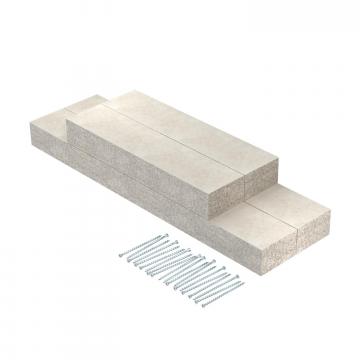

EI90 wall connection collar for PLCS D091220 fire protection duct	PLCS W091220	7217974	piece	1 piece
Insulation layer creator in a cartridge	DSX-K	7202300	piece	1 piece
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
