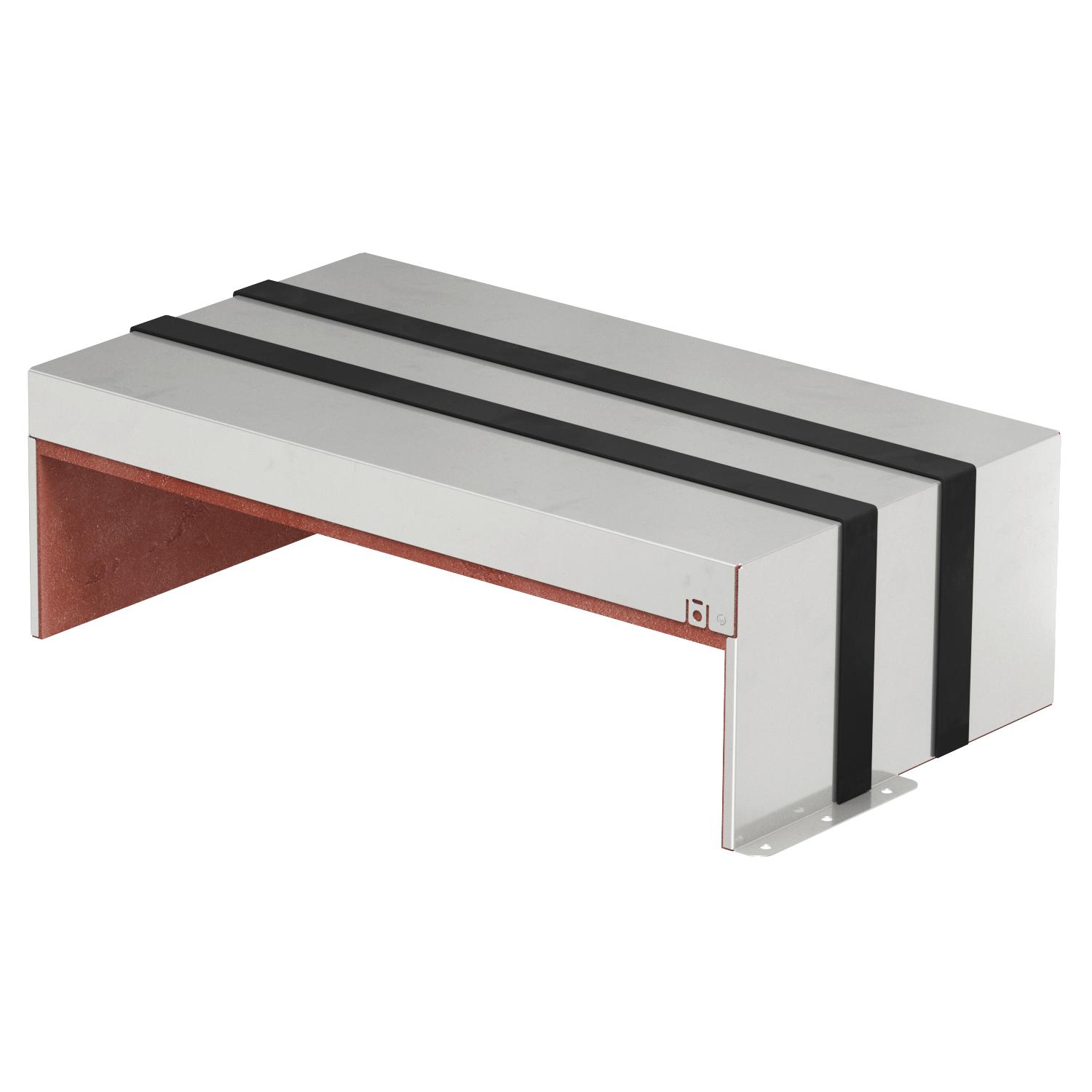

PYROPLUG® MagicBox, three-sided, interior height 110 mm
Item no. 7204166 | EAN 4012196811960
- Product description
-
Product descriptionFire protection box as insulation system, made of single-part stainless steel housing with intumescent fire protection inlays. Can be used in walls, on raw floors, beneath system floors and as insulation of rising sections in ceilings. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.
-
- Technical data
-
Technical data

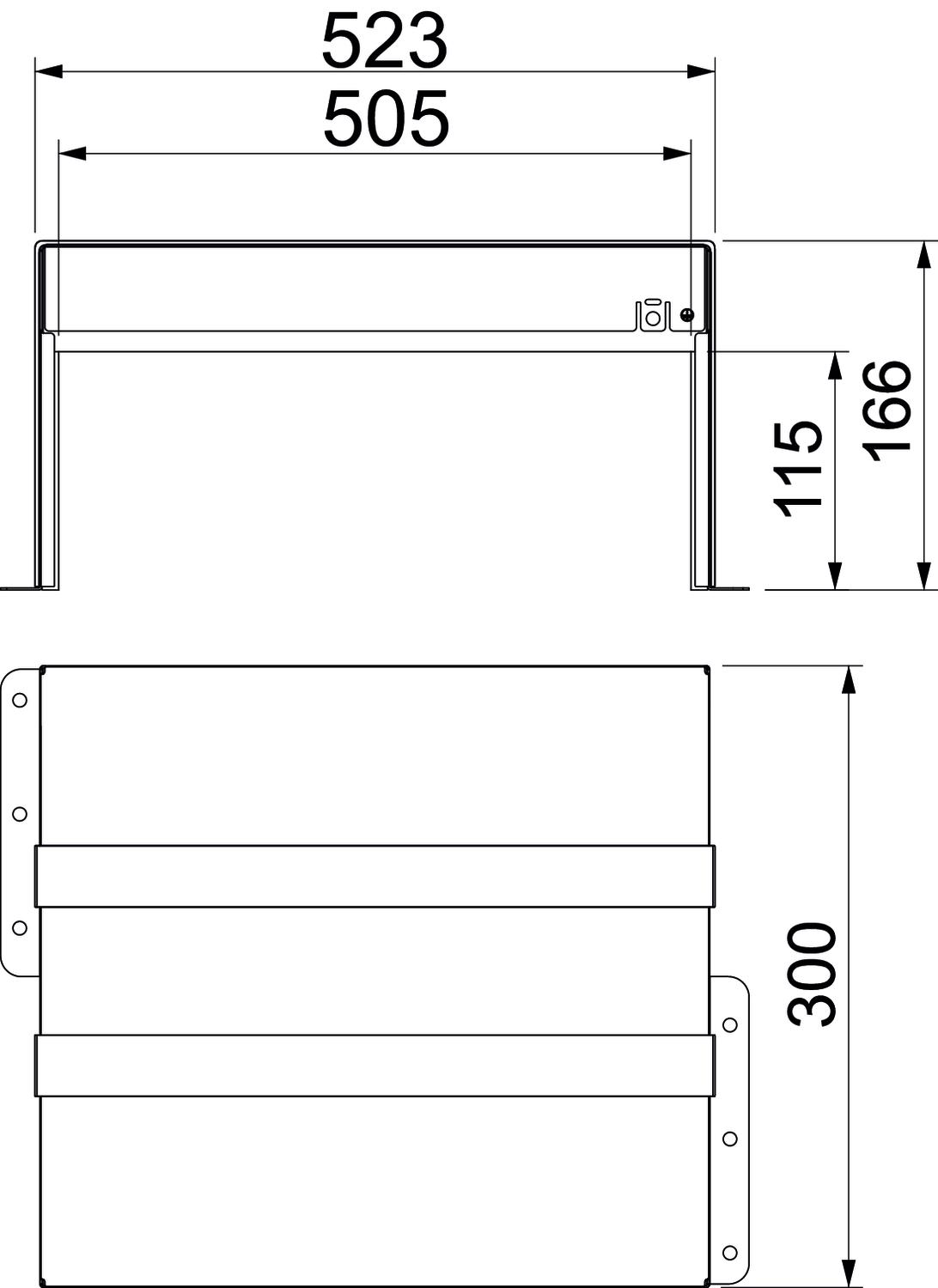

Accessories required yes Dimension 300x523x166 Dimension d 505 mm Dimension d min. 523 mm Fire protection version Box body Height 166 mm Internal height 115 mm Internal width 505 mm Length 300 mm Material Stainless steel Shape Rectangular Surface Bright, treated Width 523 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
2-component fire protection foam PYROSIT® NG
FBS-S 7203800 1 piece
Identification plate DE
KS-S DE 7205425 1 piece - Downloads
-
Data sheet PMB 150-3 A2 / 7204166 , 0.21MB , pdfBrochure PYROPLUG® MagicBox , 0.88MB , pdfEU declaration of conformity PMB 150-3 A2 / 7204166 , 0.11MB , pdfDeclaration of performance PMB 150-3 A2 / 7204166 , 0.73MB , pdfApproval certificate Insulation PYROPLUG® MagicBox , 2.09MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions PYROPLUG® MagicBox , 3.60MB , pdfNo invitation to tender text is available for this product.
