PYROPLUG® MagicBox, three-sided, interior height 60 mm 65 | 105

PYROPLUG® MagicBox, three-sided, interior height 60 mm

Item no. 7204030 | EAN 4012196812042

Item no. / Types

Internal height	65 mm

Internal width

Product description

Product description

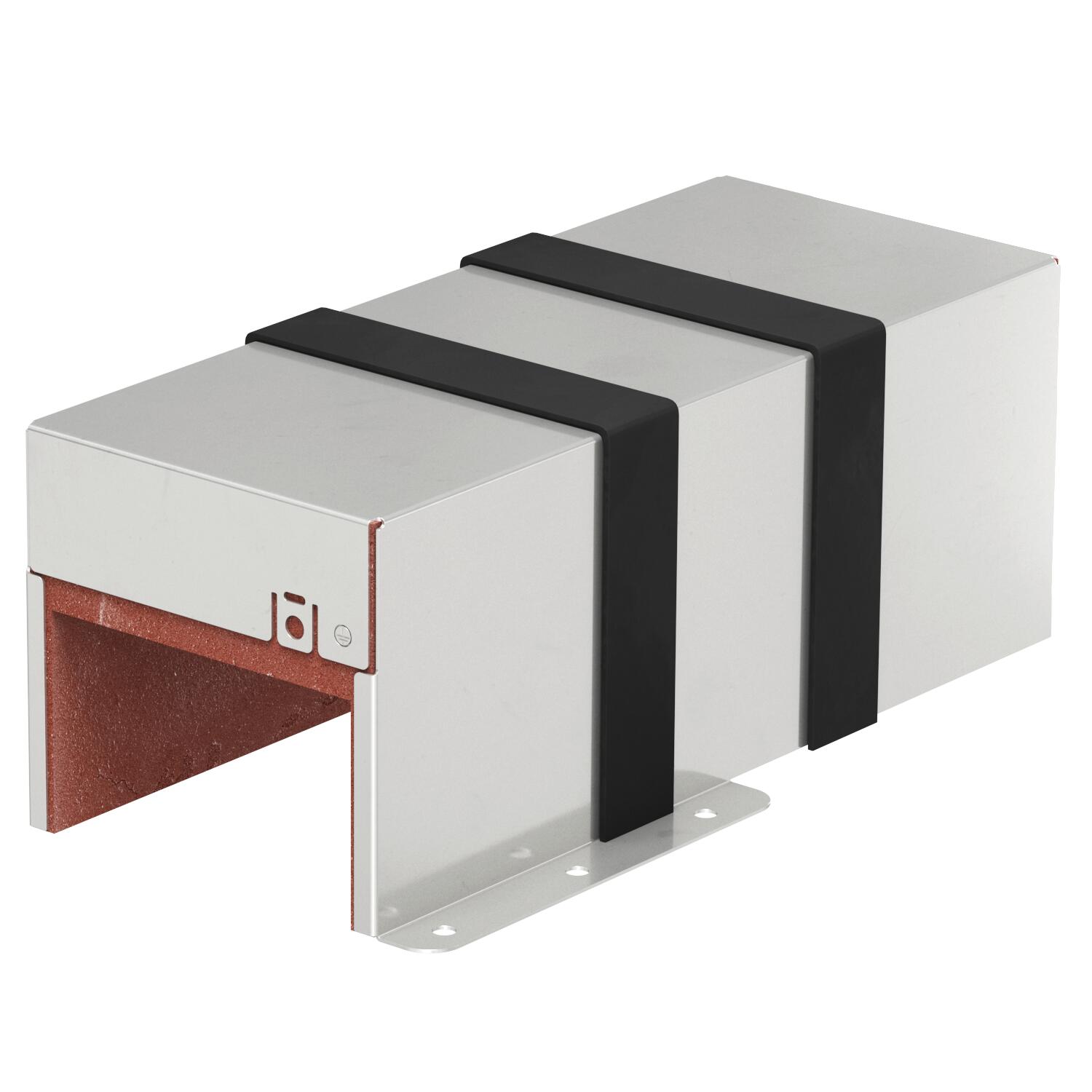

Fire protection box as insulation system, made of single-part stainless steel housing with intumescent fire protection inlays. Can be used in walls, on raw floors, beneath system floors and as insulation of rising sections in ceilings. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Technical data

Technical data

Accessories required	yes

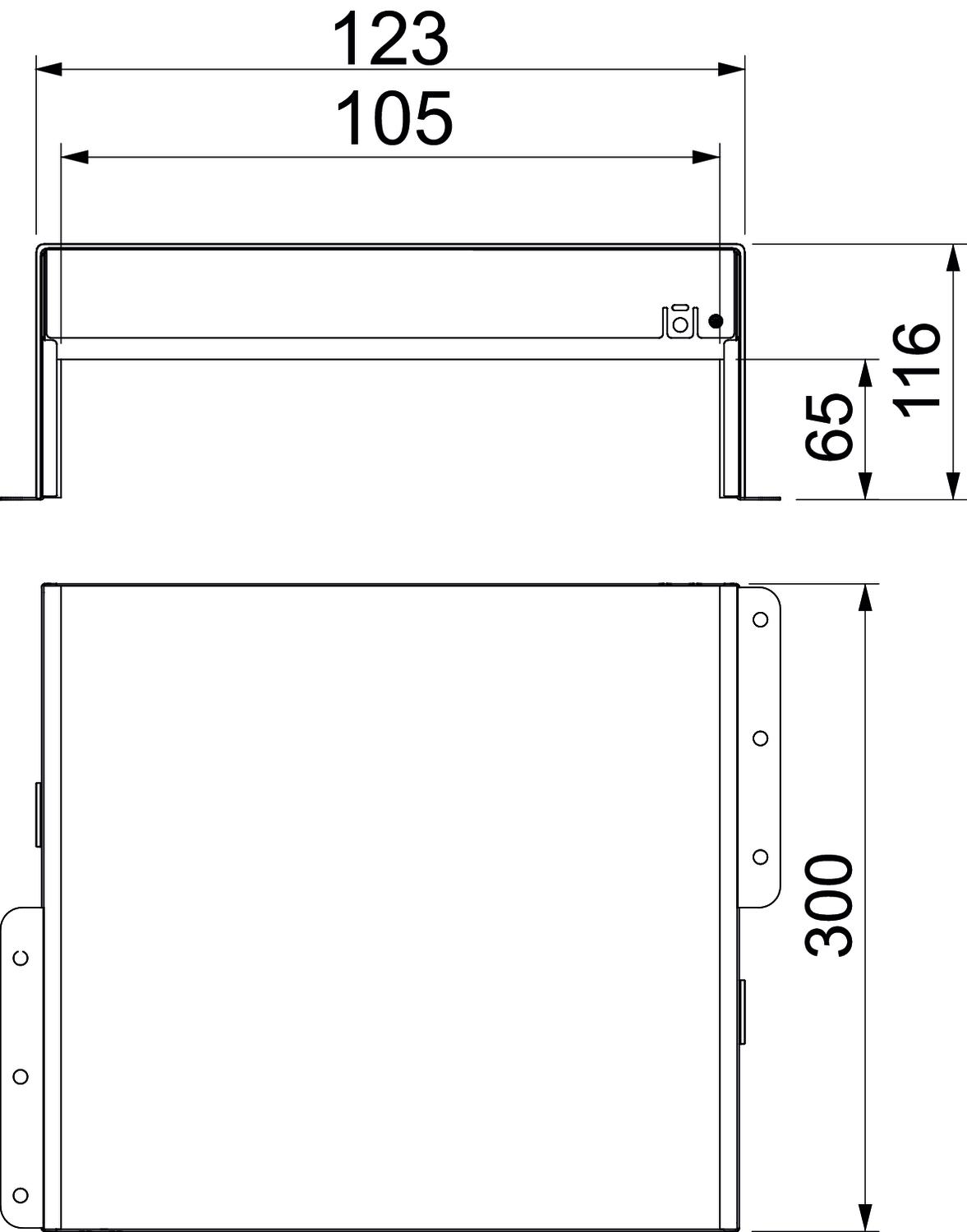

Dimension	300x123x116
Dimension d	105 mm
Dimension d min.	123 mm
Fire protection version	Box body
Height	116 mm
Internal height	65 mm

Internal width	105 mm
Length	300 mm
Material	Stainless steel
Shape	Rectangular
Surface	Bright, treated
Width	123 mm

All types

All types

Types	Internal height	Internal width	Item no.	Quantity	SSU
PMB 610-3 A2	65 mm	105 mm	7204030	piece	1 piece
PMB 620-3 A2	65 mm	205 mm	7204034	piece	1 piece
PMB 630-3 A2	65 mm	305 mm	7204038	piece	1 piece
PMB 640-3 A2	65 mm	405 mm	7204042	piece	1 piece
PMB 650-3 A2	65 mm	505 mm	7204046	piece	1 piece
PMB 660-3 A2	65 mm	605 mm	7204050	piece	1 piece
