Quick clip, aluminium
Item no. 2149950 | EAN 4012196409297
- Product description
-

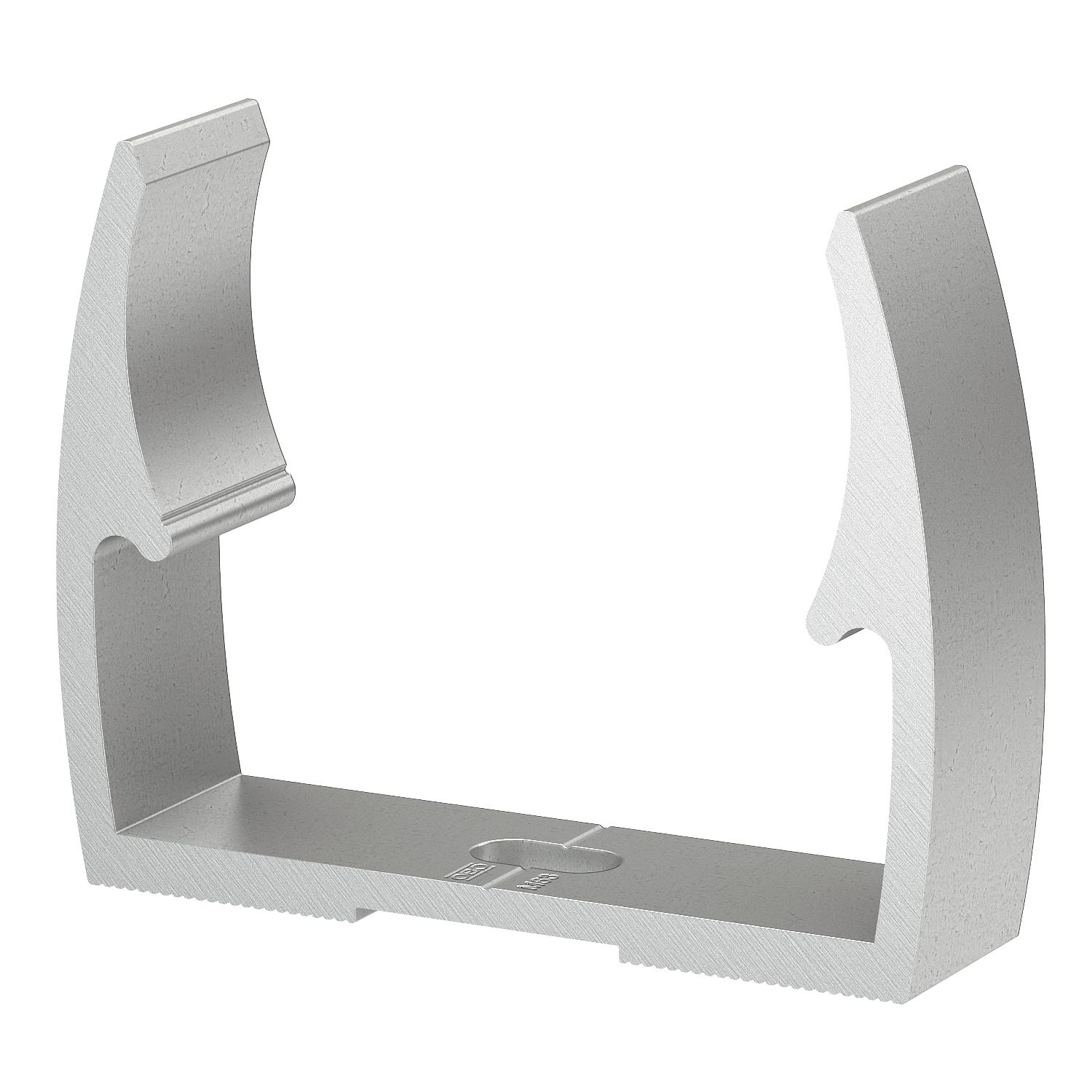

Product descriptionOBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
-
- Technical data
-
Technical data

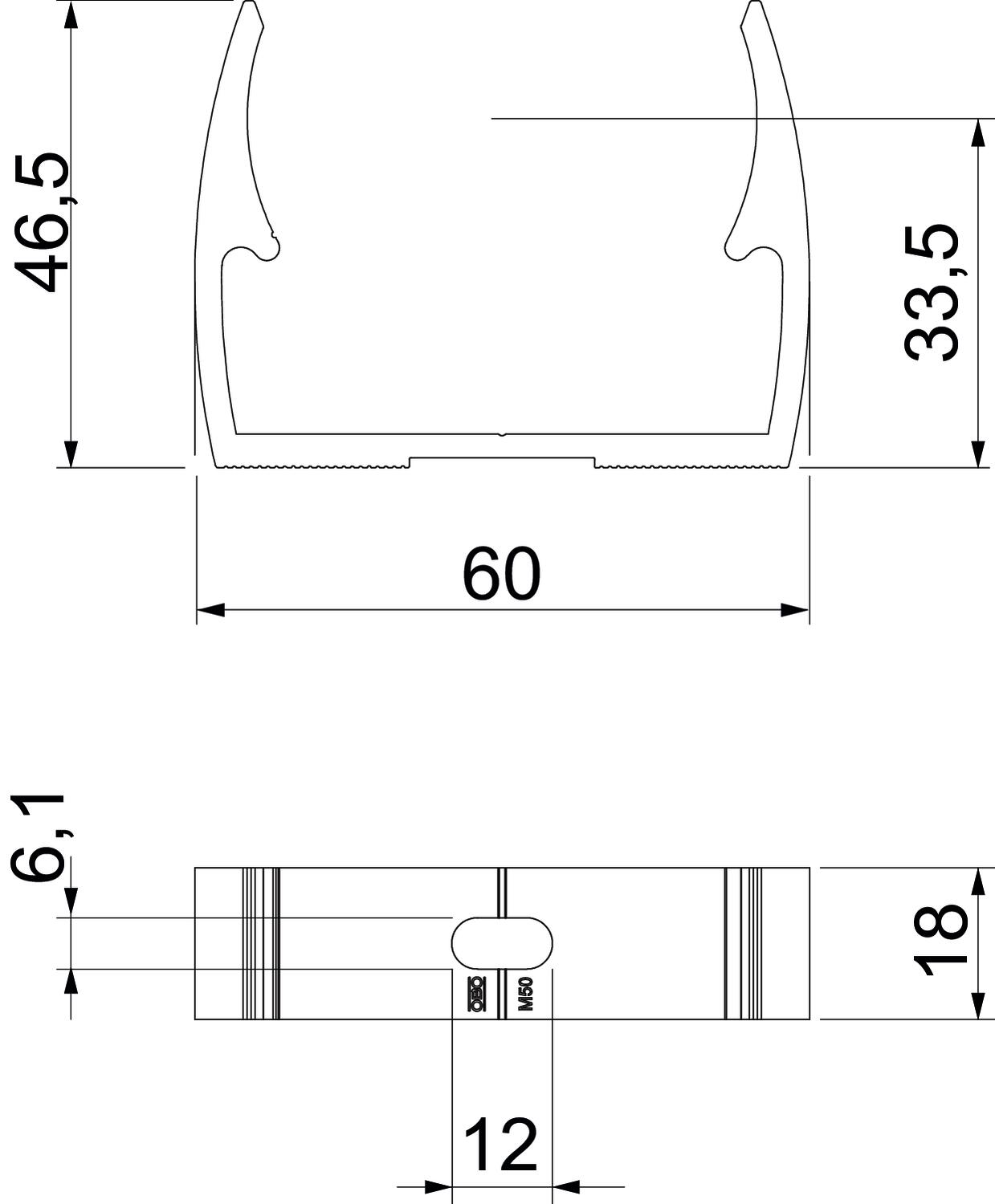

Clamping range D, max. 50 mm Clamping range D, min. 50 mm Closed no Dimension M50 Dimension A 60 mm Dimension B 18 mm Dimension E 6,1 mm Dimension F 12 mm Dimension H 46,5 mm Dimension h 33,5 mm Expandable no Fastening type Screw hole Halogen-free no Material Aluminium Nominal size/text 50 Number of cables/pipes 1 UV-resistant yes With inlay no - All types
- Downloads
-
Data sheet ALQ M50 / 2149950 , 0.17MB , pdfEU declaration of conformity ALQ M50 / 2149950 , 0.10MB , pdfREACH Declaration of conformity ALQ M50 / 2149950 , 0.12MB , pdfRoHS Declaration of conformity ALQ M50 / 2149950 , 0.12MB , pdf
