- Product description
-

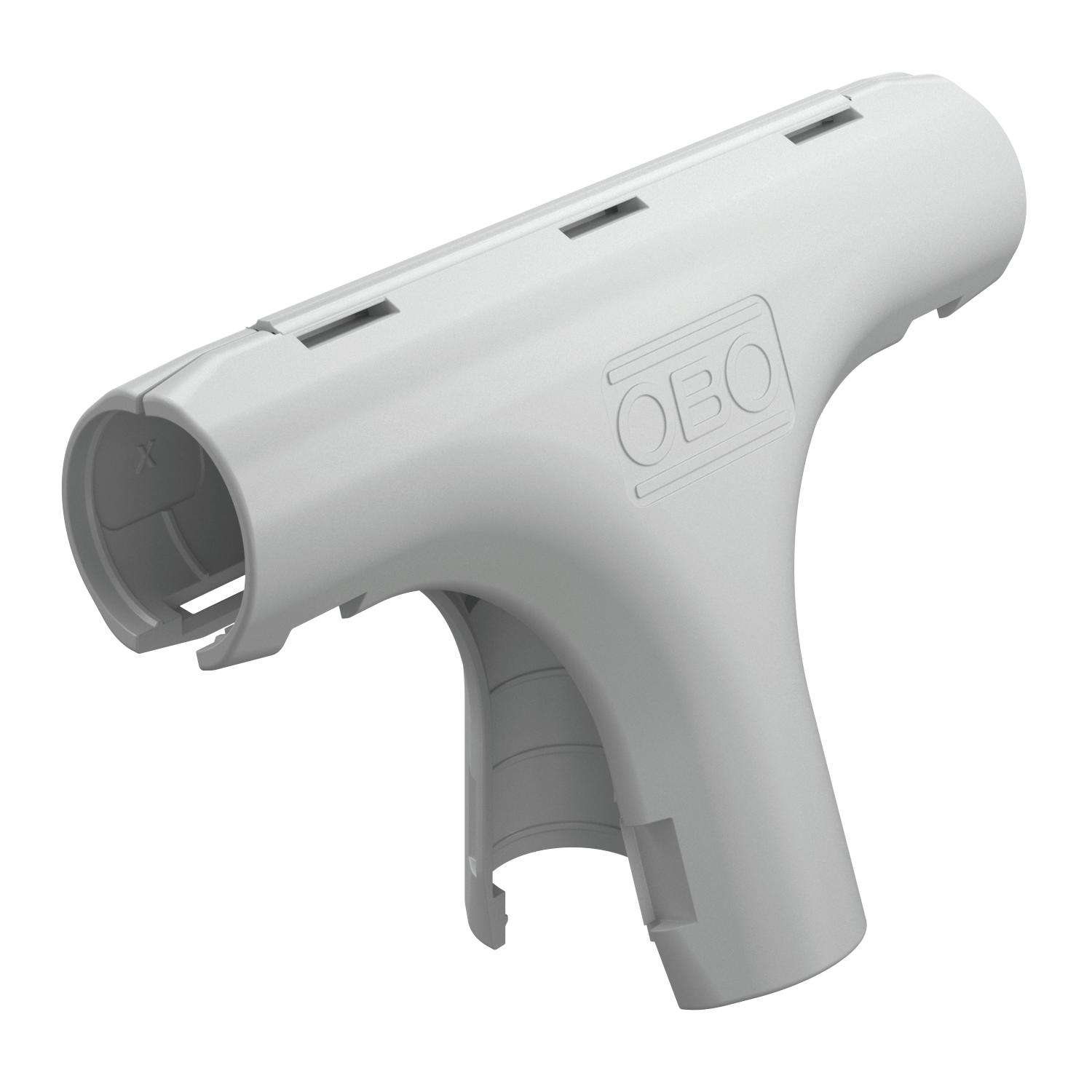

Product descriptionFitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
- Technical data
-
Technical data

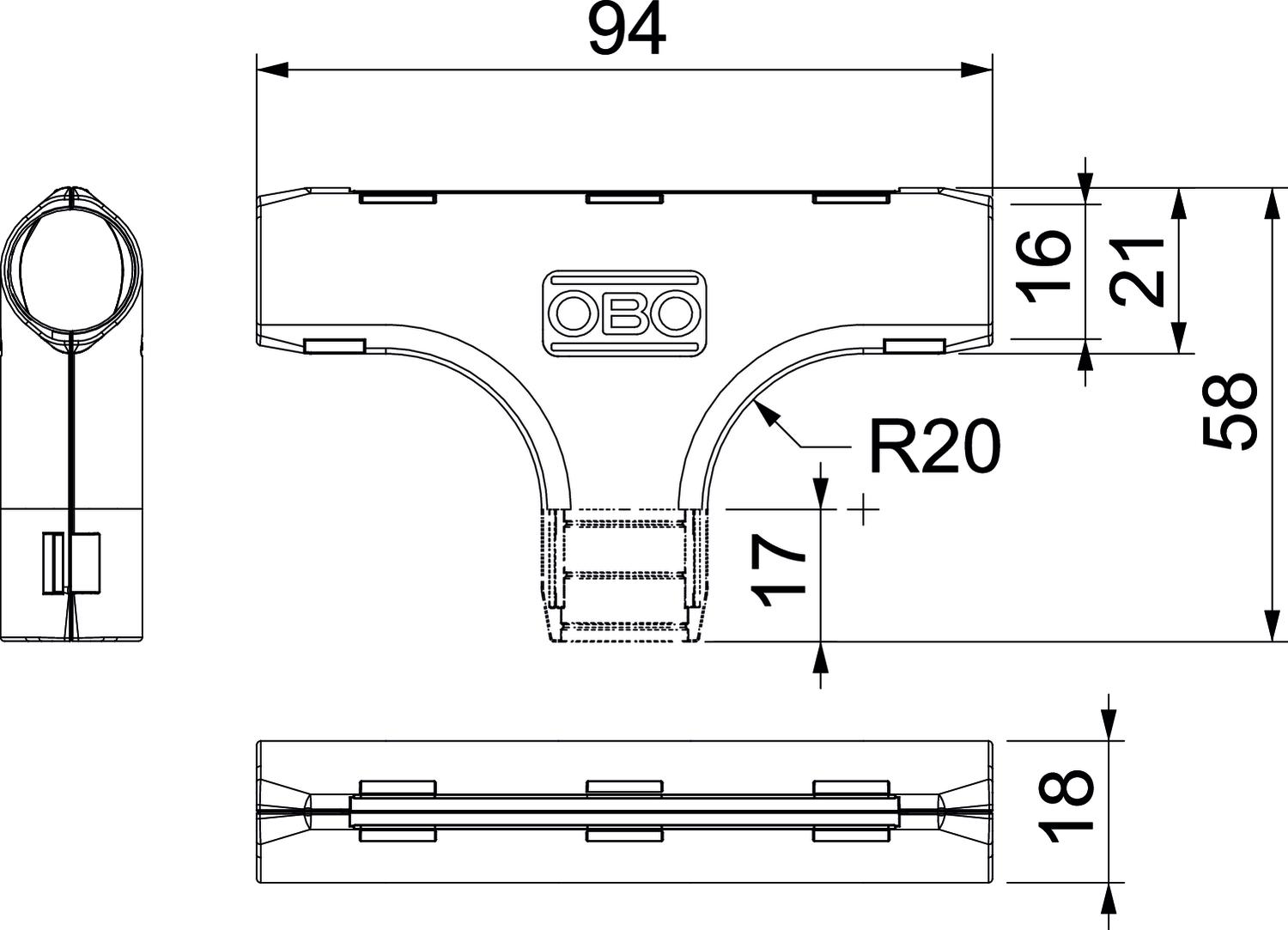

Brushed surface no Colour Light grey; RAL 7035 Dimension M16 Dimension B 21 mm Dimension B2 94 mm Dimension d 16 mm Dimension L 58 mm Dimension L1 17 mm Dimension R 20 mm Halogen-free yes Material Polypropylene Permitted temperature range, max. 60 °C Polished surface no Shape T piece Size M16 Version for Connector With sleeve no - All types
- Downloads
-
Data sheet 3000 TMS M16 LGR / 2153839 , 0.26MB , pdfBrochure Quick Pipe , 1.41MB , pdf
