- Product description
-

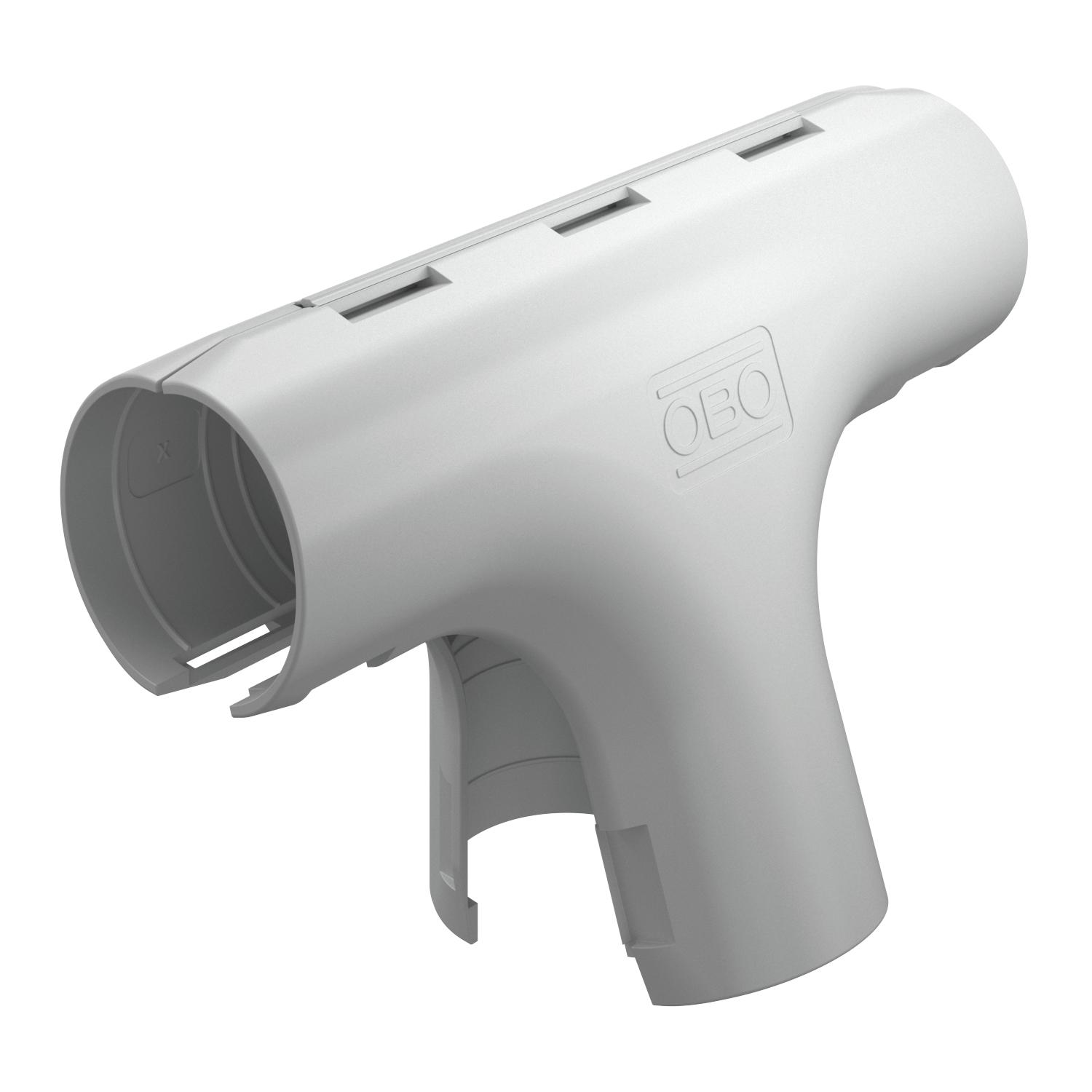

Product descriptionFitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
- Technical data
-
Technical data

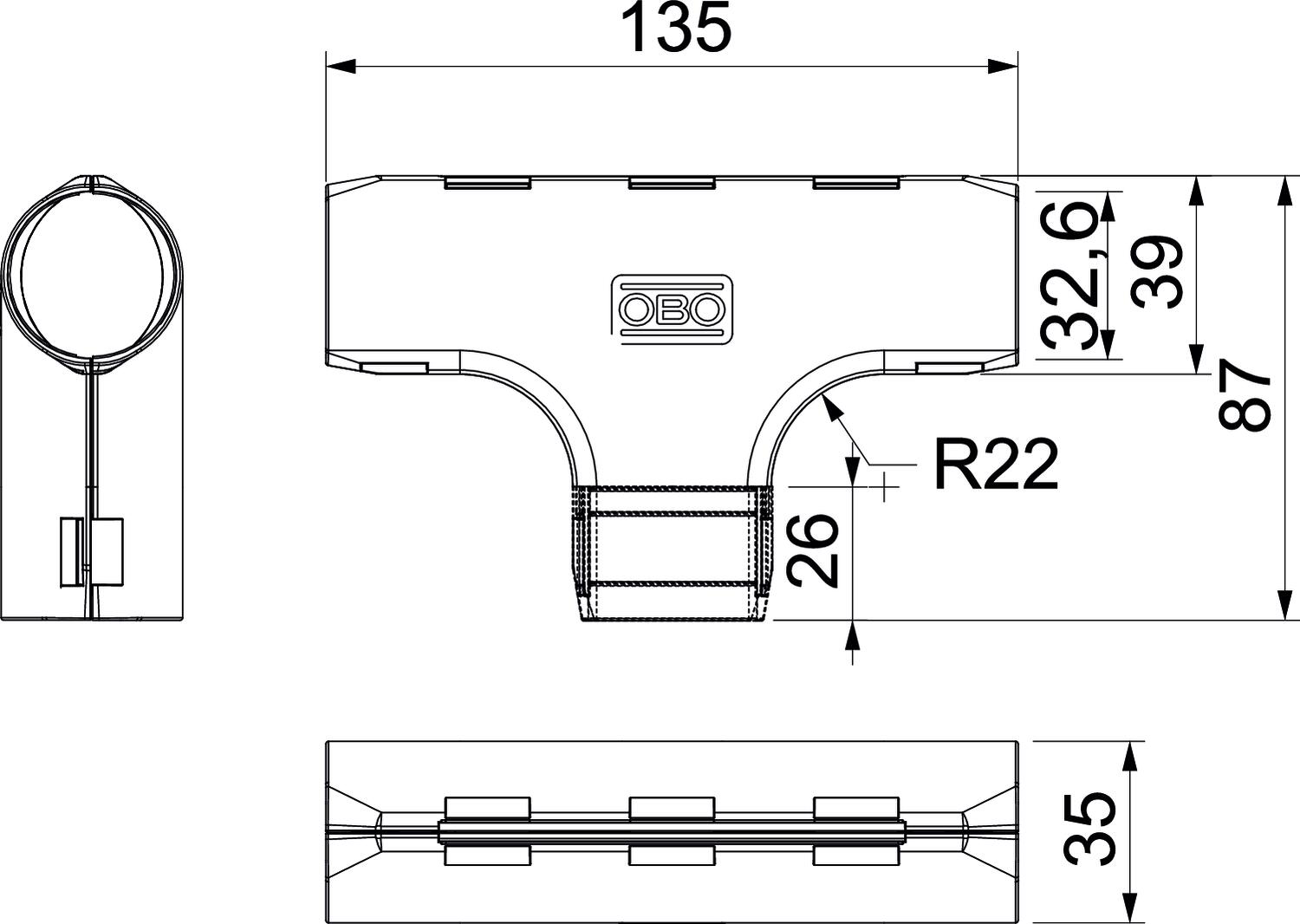

Brushed surface no Colour Light grey; RAL 7035 Dimension M32 Dimension B 39 mm Dimension B2 135 mm Dimension d 32,6 mm Dimension L 87 mm Dimension L1 26 mm Dimension R 22 mm Halogen-free yes Material Polypropylene Permitted temperature range, max. 60 °C Polished surface no Shape T piece Size M32 Version for Connector With sleeve no - All types
- Downloads
-
Data sheet 3000 TMS M32 LGR / 2153845 , 0.21MB , pdf
