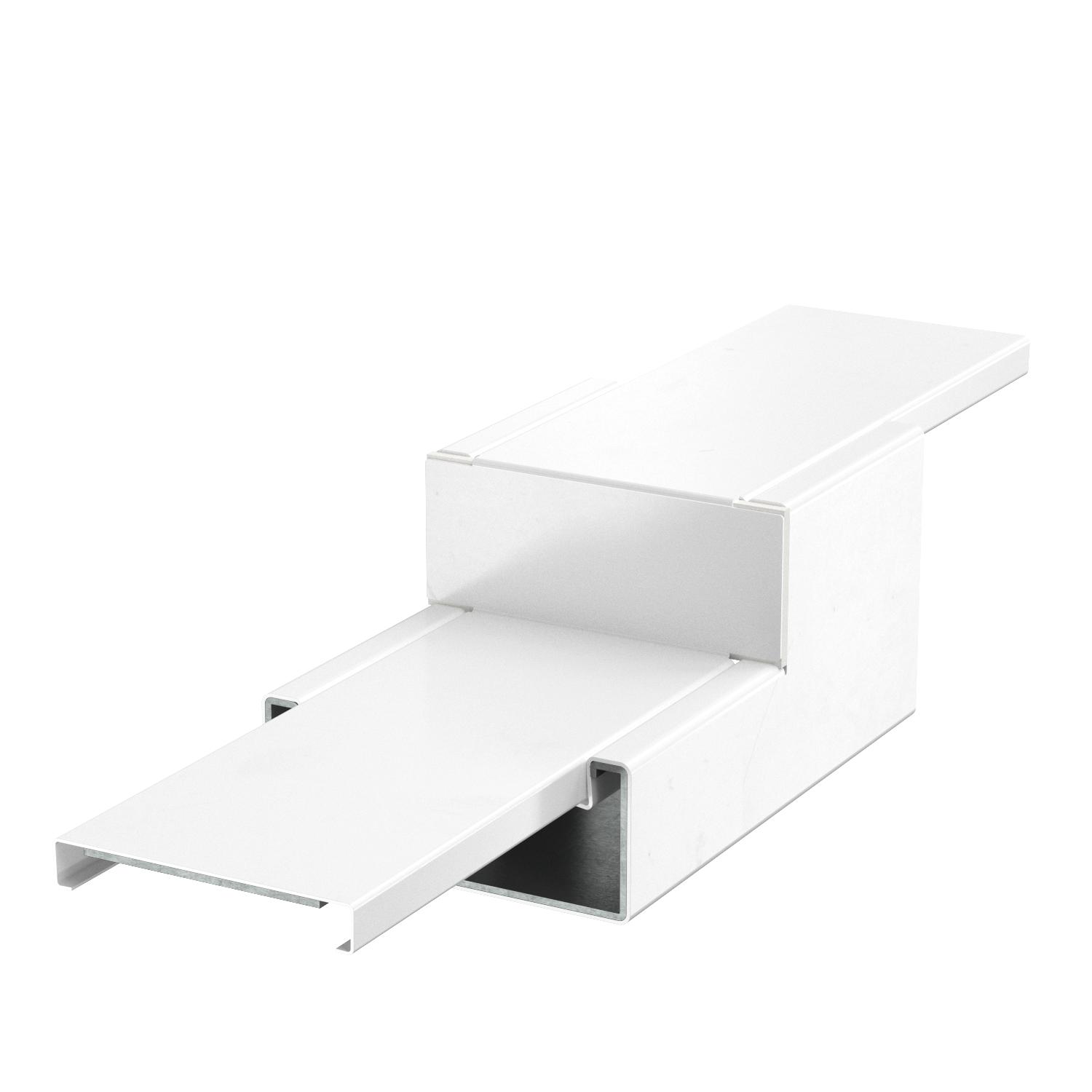

Reducer, straight, from 80 mm to 40 mm duct height, pure white
Item no. 7218100 | EAN 4012197365400
- Product description
-
Product description
Reducer with intumescent fire protection mesh for symmetrical reduction of straight duct sections from PLM D 0810 to PLM D 0410. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data

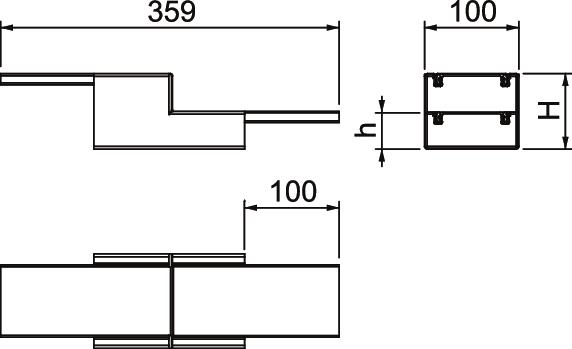

Colour Pure white; RAL 9010 Cover fastening Miscellaneous Dimension 360x100x80 Jacketing Steel Material Steel Number of flammable sides 4 Surface Powder-coated Dimensions
Dimension h 40 mm Dimension H 80 mm - All types
- Downloads
-
Data sheet PLM RP 0810 RW / 7218100 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfSafety data sheet Insulation forming material FSB , 0.05MB , pdfNo invitation to tender text is available for this product.
