Reducing sealing insert, metric 40 | 54.8 | 63
morepic-1 morepic-2

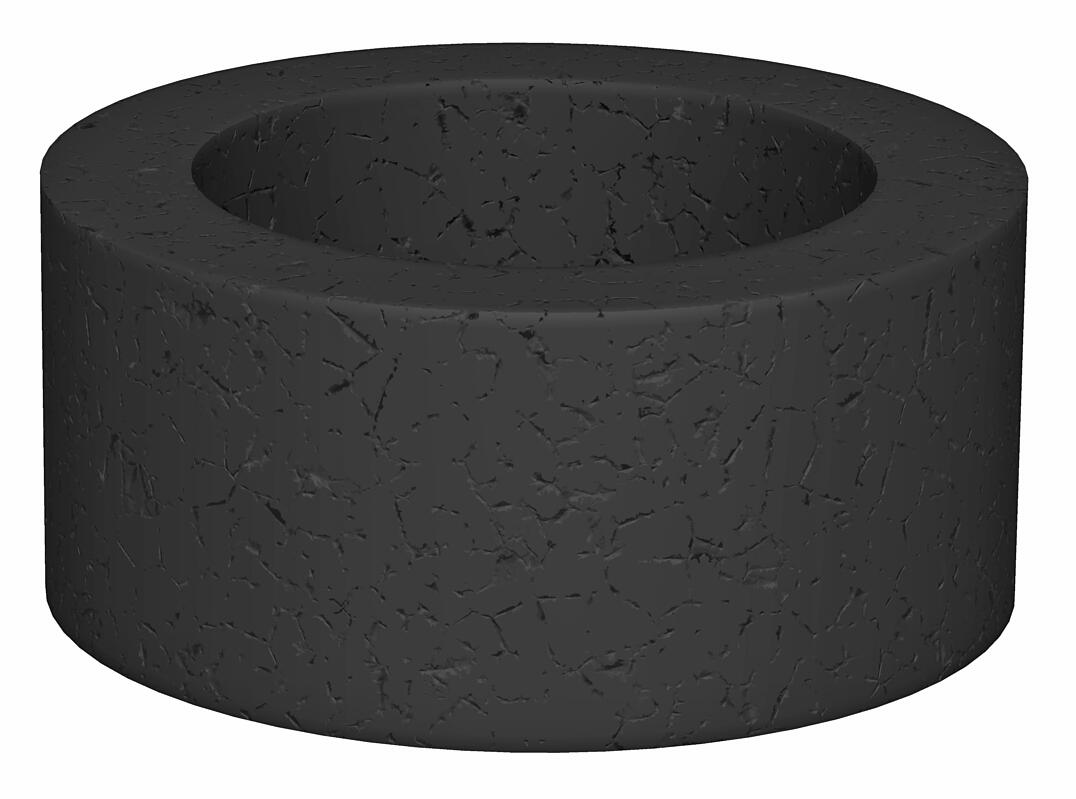

Reducing sealing insert, metric

Item no. 2029581 | EAN 4012195360698

Product description

Product description

Reduces the sealing area D of the cable gland V-TEC VM and V-TEC VM L.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Colour Black
Dimension M63
External diameter 54,8 mm
Halogen-free no
Inner diameter 40 mm
Material Rubber mixture
Sealing area D, max. 40 mm
Sealing area D, min. 29 mm
Suitable for metric thread dimension 63
Thickness 20,2 mm
Version for Miscellaneous

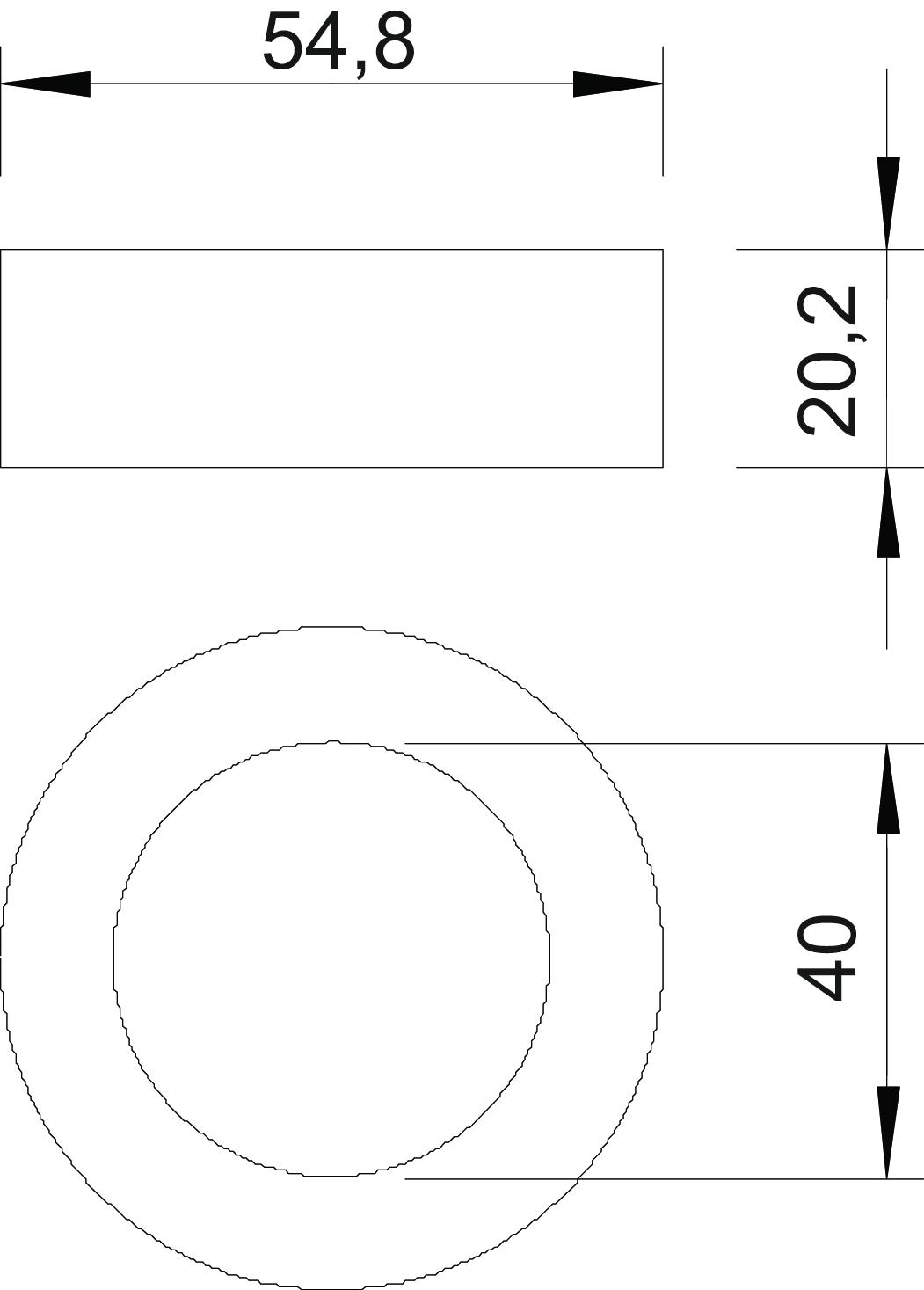

Dimensions

Dimension D1 40 mm
Dimension D2 54,8 mm
Dimension H 20,2 mm
All types

All types

Types Dimension D1 Dimension D2 Suitable for metric thread dimension Item no. Quantity SSU
107CR VM 12 5 mm 8.9 mm 12 2029560
50 piece
107CR VM 16 7 mm 12.7 mm 16 2029563
50 piece
107CR VM 20 9 mm 16 mm 20 2029566
50 piece
107CR VM 25 13 mm 20.7 mm 25 2029569
50 piece
107CR VM 32 16 mm 25.7 mm 32 2029572
25 piece
107CR VM 40 23 mm 33.7 mm 40 2029575
25 piece
107CR VM 50 29 mm 41.7 mm 50 2029578
25 piece
107CR VM 63 40 mm 54.8 mm 63 2029581
25 piece
