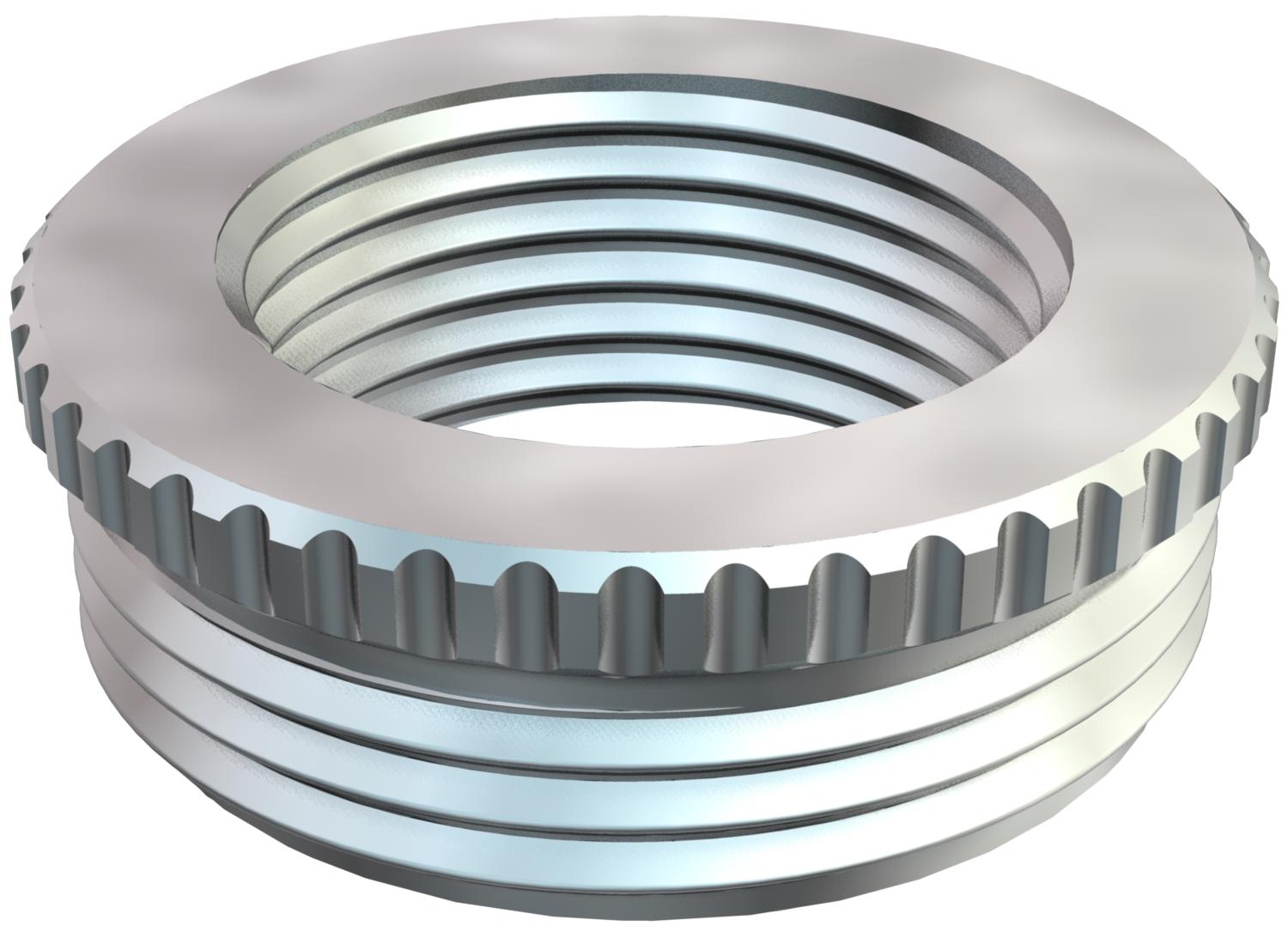

Reduction, PG thread

Item no. 2089297 | EAN 4012195193456

Item no. / Types

Thread dimension, PG, external

Thread dimension, PG, internal

Product description

Product description

Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.
* Prices according to DEL notation.

Technical data

Technical data

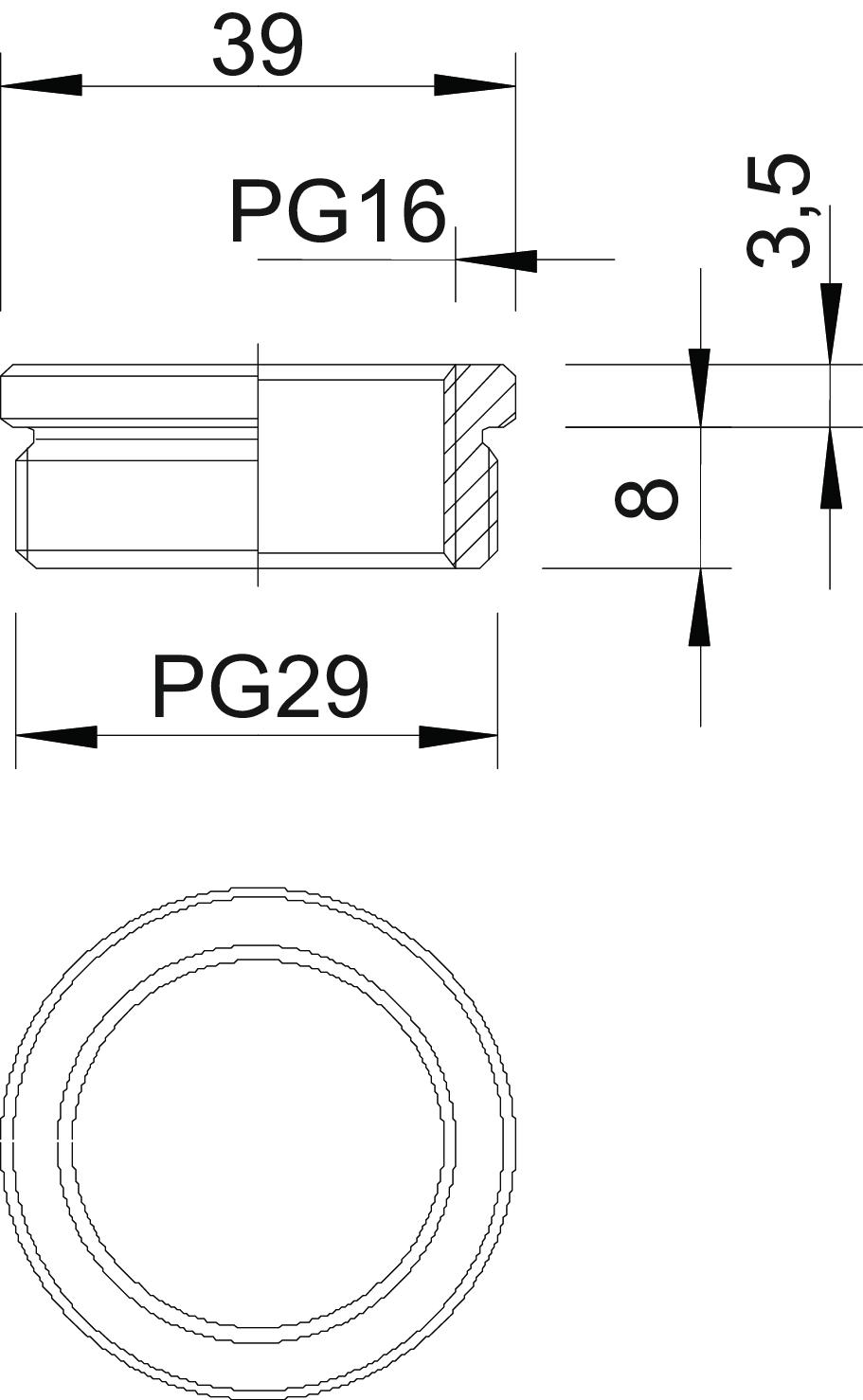

Dimension	PG29-PG16
Dimension D	39 mm
Dimension L1	8 mm
Dimension L2	3,5 mm
explosion-proof	no
Material	Brass
Nickel-plated	yes

Surface	Nickel-plated
Thread dimension, PG, external	29
Thread dimension, PG, internal	16
Thread length	8 mm
Thread type: External thread	PG
Thread type: Internal thread	PG

All types

All types

Types	Thread dimension, PG, external	Thread dimension, PG, internal	Item no.	Quantity	SSU
167 R MS PG21-11	21	11	2089238	piece	50 piece
167 R MS PG21-13	21	13.5	2089254	piece	50 piece
167 R MS PG21-16	21	16	2089270	piece	50 piece
167 R MS PG29-16	29	16	2089297	piece	50 piece
167 R MS PG29-21	29	21	2089319	piece	50 piece
167 R MS PG36-21	36	21	2089335	piece	25 piece
167 R MS PG36-29	36	29	2089351	piece	25 piece
167 R MS PG42-36	42	36	2089408	piece	25 piece
167 R MS PG48-36	48	36	2089424	piece	25 piece
167 R MS PG48-42	48	42	2089440	piece	25 piece
