Rising vertical bend EI90 for PLCS D090810 fire protection duct
Item no. 7217930 | EAN 4012196836802
- Product description
-

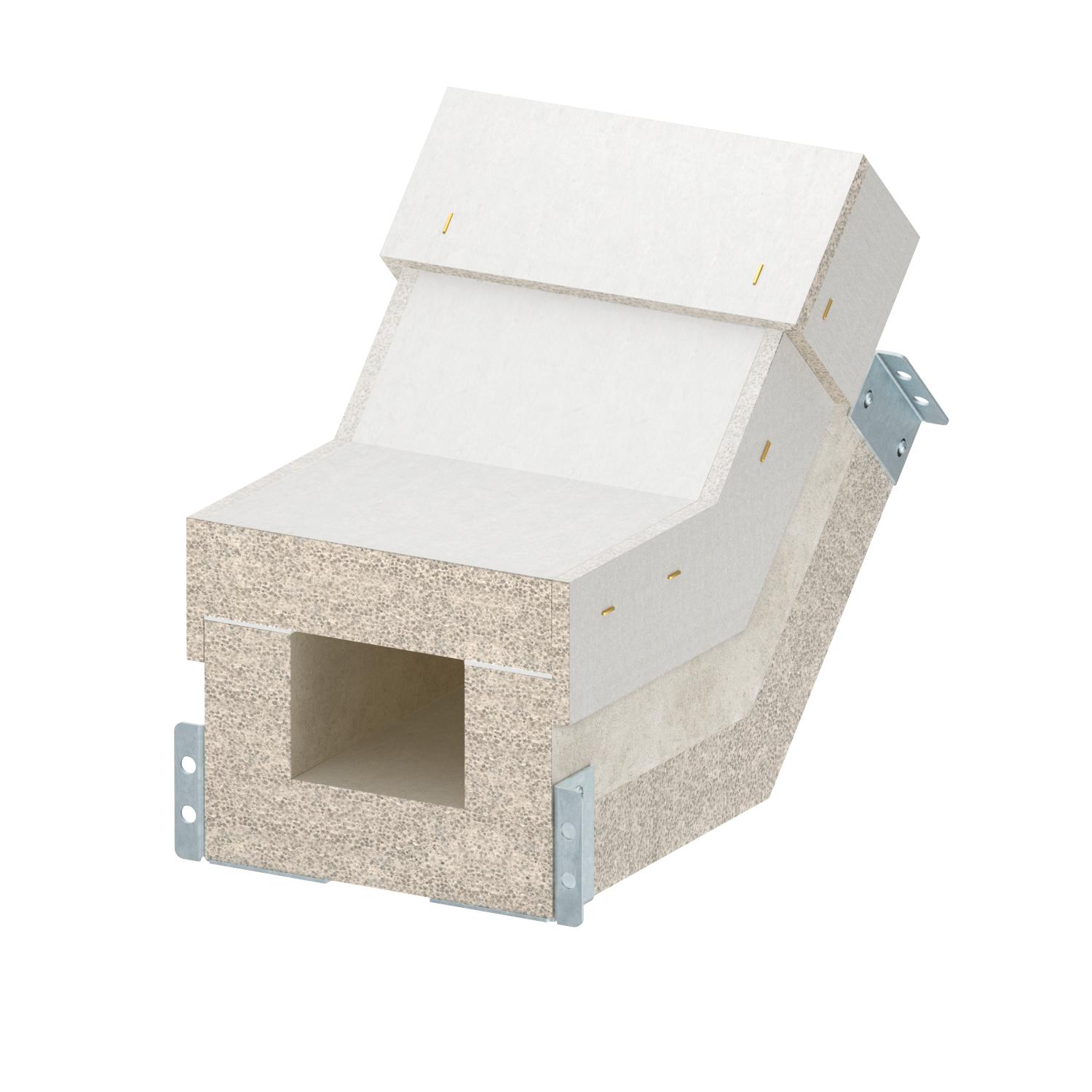

Product descriptionVertical bend, rising, for PYROLINE® Con S EI90 fire protection duct, type PLCS D090810, consisting of fibreglass light concrete which is resistant to water and frost for the creation of vertical changes of direction (45°) of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

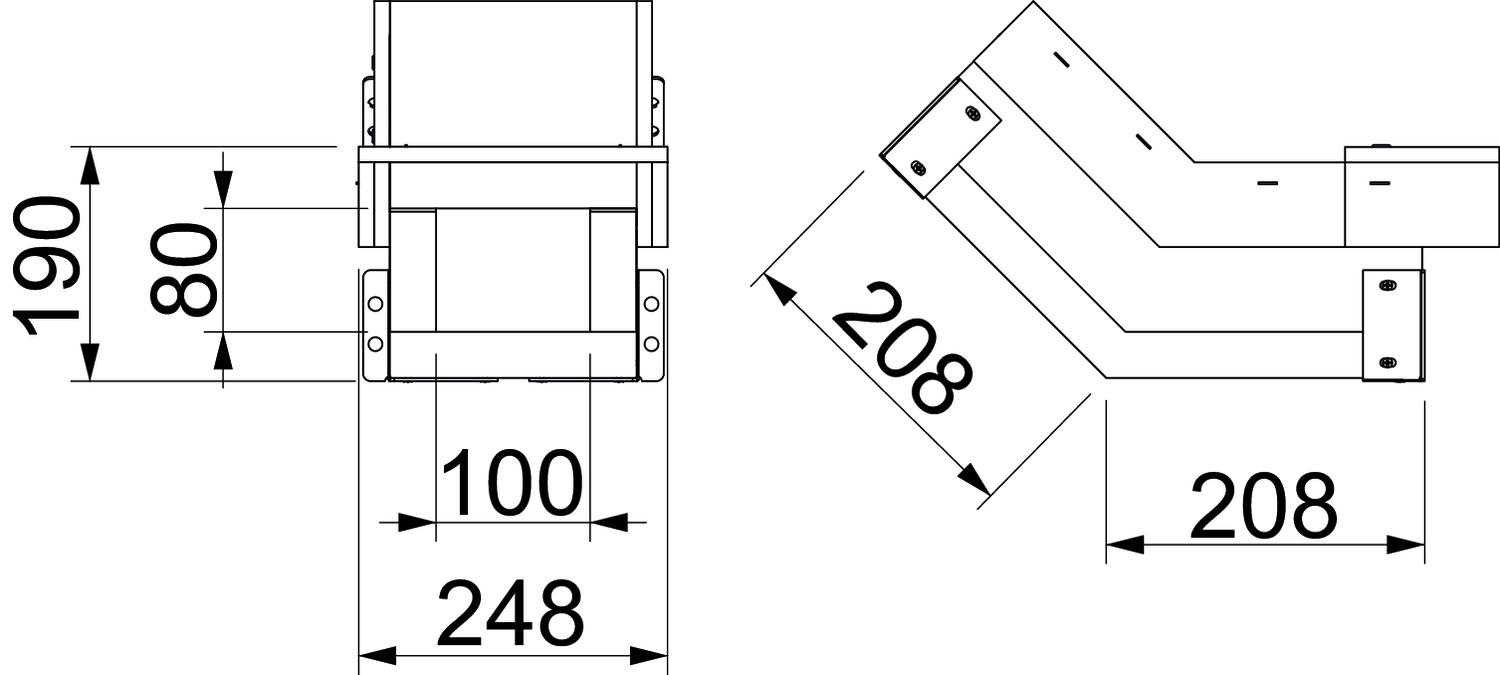

Angle of the bend 45 ° Classification EI − installation duct 90 Colour Grey Cover fastening Loose Dimension 100x80 Dimension B 248 mm Dimension b 100 mm Dimension h 80 mm Dimension H 190 mm Dimension L 225 mm Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no - All types
- Downloads
-
Data sheet PLCS VR090810 / 7217930 , 0.20MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLCS VR090810 / 7217930 , 0.11MB , pdfDeclaration of performance PLCS VR090810 / 7217930 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
