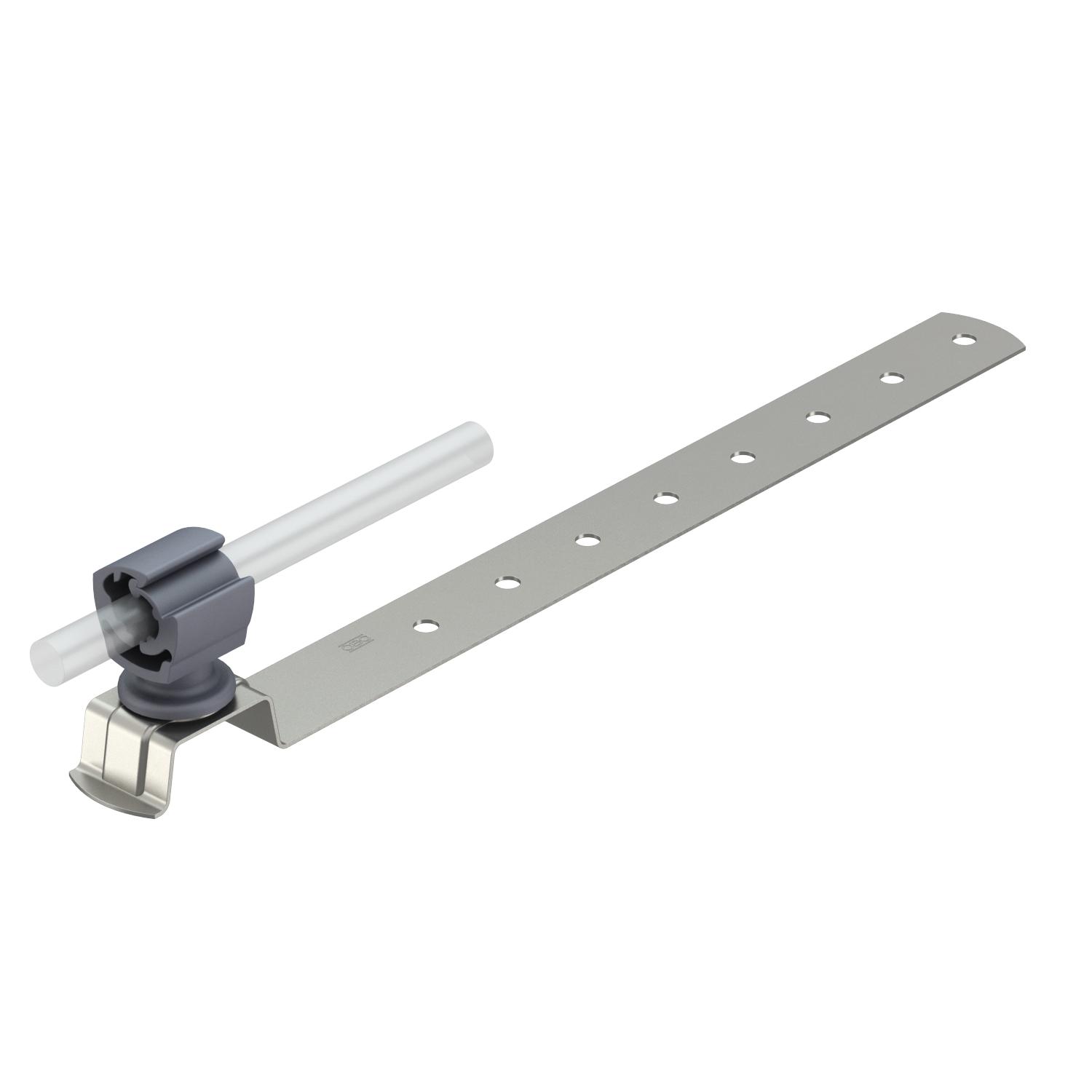

Roof conductor holder for tiled roofs, Rd 8−10
Item no. 5215587 | EAN 4012195812296
- Product description
-
Product description• Conductor holder of polyamide
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

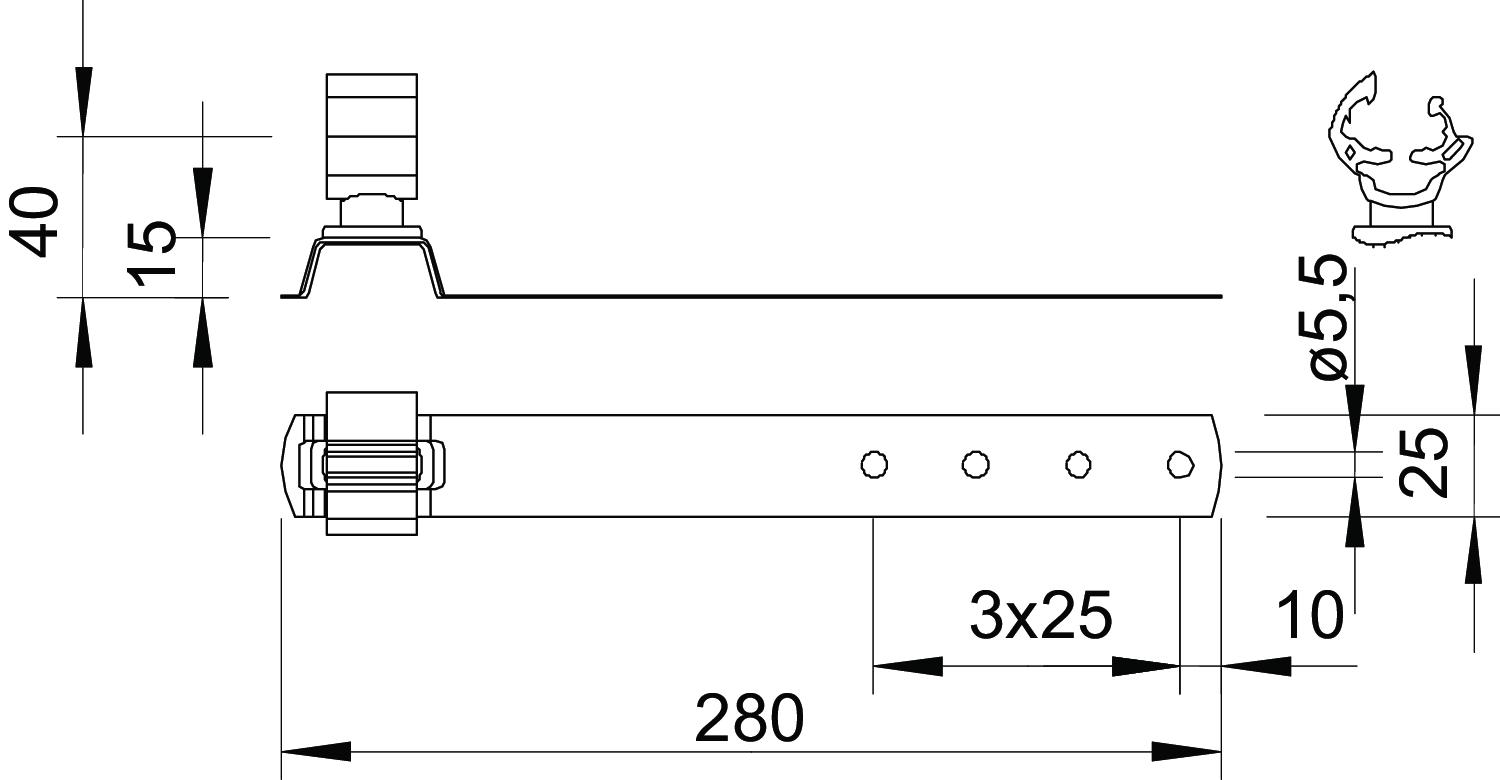

Application Roof surface Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With clamp clip Dimension 8mm Dimension L 280 mm Fit Rd 8-10 mm Length 280 mm Material Stainless steel Mounting height 40 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 FK-VA 280 / 5215587 , 0.15MB , pdfEU declaration of conformity 157 FK-VA 280 / 5215587 , 0.06MB , pdf
