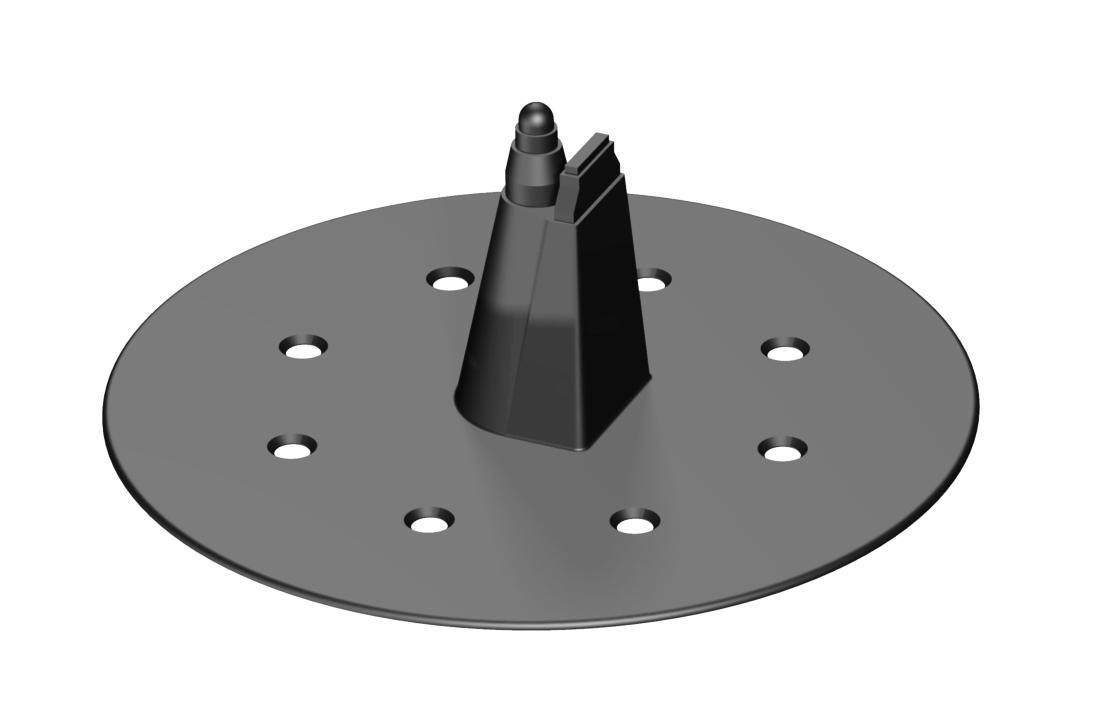

Roof penetration
Item no. 5201101 | EAN 4012195401599
- Product description
-
Product description• For round conductors 8–10, air-termination rods 16 mm
• Flat conductors 20 mm/30 mm
• Colour: Black, UV-resistant
• For penetration and sealing of roofs
- Technical data
-
Technical data

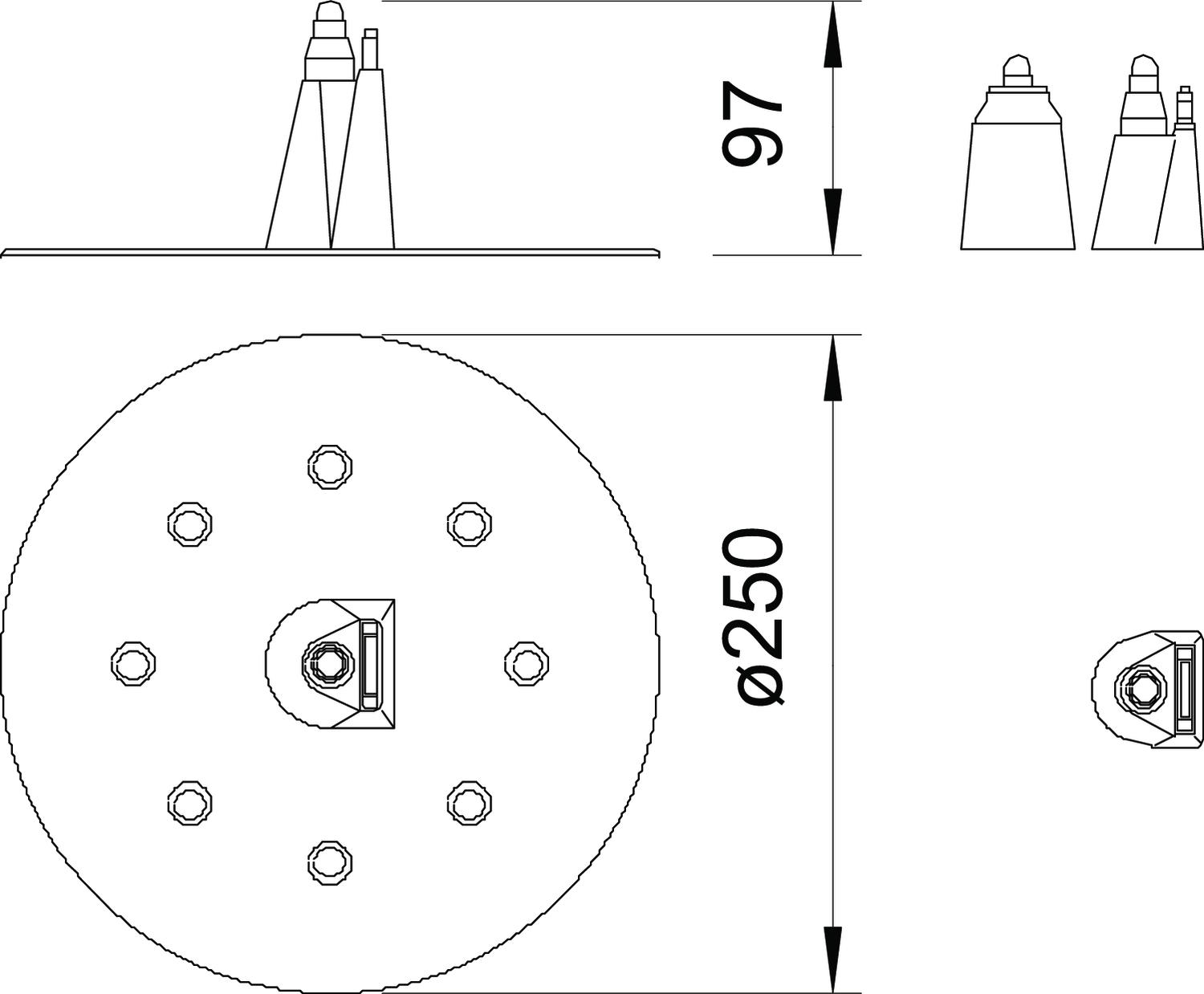

Colour Black Dimension 250x250x100 Fit Rd 8-16/ FL20 u. FL30 mm Height 97 mm Length 250 mm Material Polyamide Width 250 mm - All types
- Downloads
-
Data sheet 330 K / 5201101 , 0.15MB , pdfEU declaration of conformity 330 K / 5201101 , 0.06MB , pdfREACH Declaration of conformity 330 K / 5201101 , 0.12MB , pdfRoHS Declaration of conformity 330 K / 5201101 , 0.12MB , pdf
