Round conductor, aluminium

Item no. 5021308 | EAN 4012195381976

Aluminium
Product description
Product description
• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 8 ALU: Semi-hard (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 8 ALU-T: Can be subjected to torsion (E-AlMgSi0.5 corresponds to DIN 48801)
• RD 10 ALU: Pure aluminium (E-Al corresponds to DIN 48801)
• AL and ALMgSi may not be routed directly on, in or under plaster, mortar or concrete, nor routed in the earth
  • Lightning current-tested
Technical data

Technical data

Cross-section 78 mm²

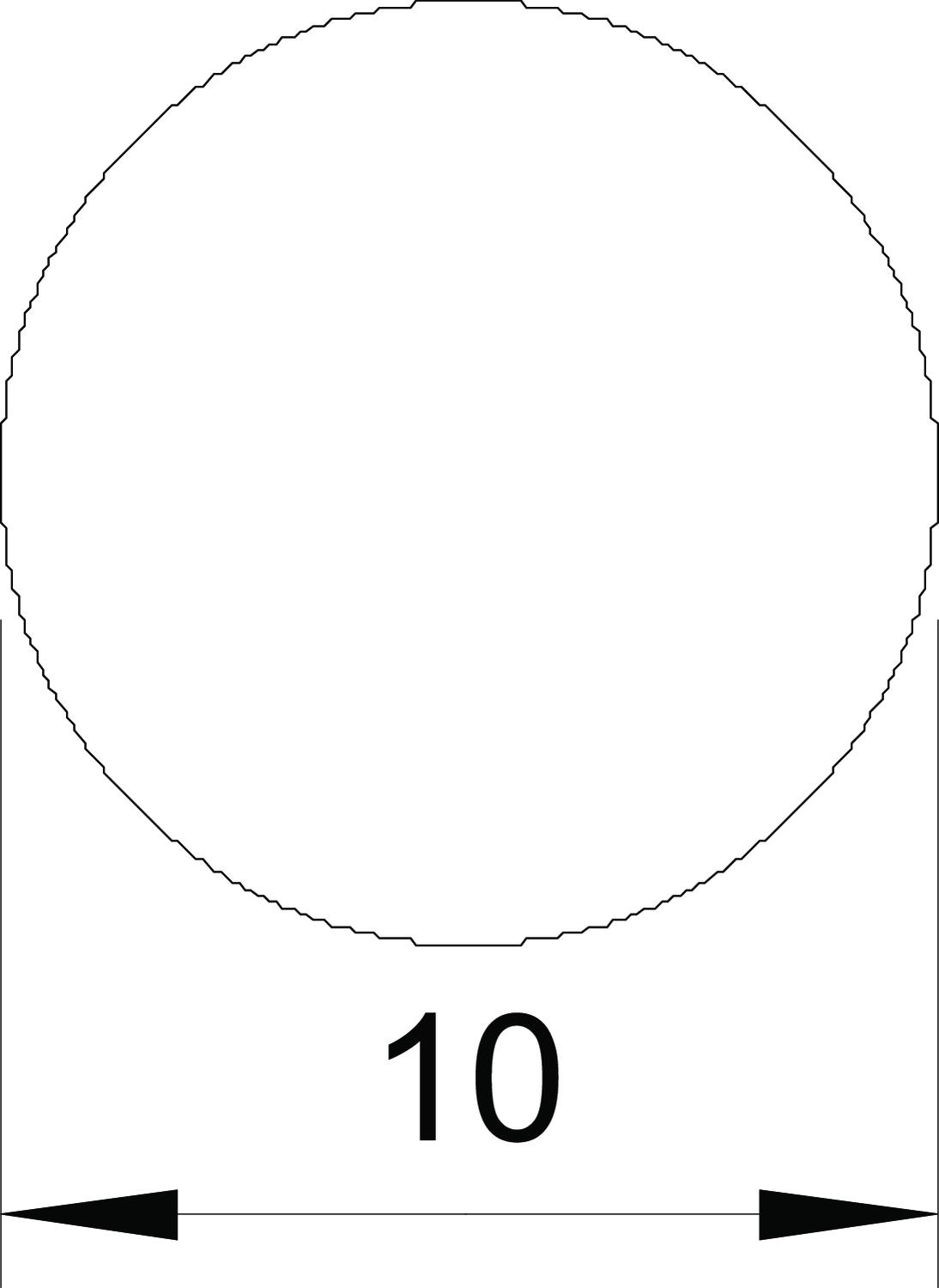

Diameter 10 mm
Dimension 10mm
Dimension D 10 mm
High voltage-resistant, insulated version no
Length tolerance ± 5 %
Material Aluminium
Material jacket Without
Material property Miscellaneous
Nomal ring (approx. m) 95
Normal ring (ca. kg) 20
Number of individual wires 1
All types

All types

Types Diameter Normal ring (ca. kg) Nomal ring (approx. m) Cross-section Material Item no. Quantity SSU
RD 8-ALU 8 mm 20 150 50 mm² Aluminium 5021286
150 m
RD 8-ALU-T 8 mm 20 150 50 mm² Aluminium 5021294
150 m
RD 8-ALU-T 75 8 mm 10 75 50 mm² Aluminium 5021296
75 m
RD 10-ALU 10 mm 20 95 78 mm² Aluminium 5021308
95 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Number plates Alu Number plates Alu 311 N-ALU 16 3049345
5 piece
Cable bracket for Rd 8 mm, through-way Ø 5 mm Cable bracket for Rd 8 mm, through-way Ø 5 mm 177 20 VA M6 5207339
20 piece
Cable bracket Rd 8–10 mm Cable bracket Rd 8–10 mm 177 30 M8 5207460
20 piece
165 MBG... roof cable holder for flat roofs, black, with concrete 165 MBG... roof cable holder for flat roofs, black, with concrete 165 MBG-8-10 5218700
12 piece
Vario quick connector ALU Vario quick connector ALU 249 8-10 ALU 5311519
30 piece
Gutter clamp RK-FIX A2 Gutter clamp RK-FIX A2 RK-FIX VA 5316459
10 piece
Folding and construction clamp Folding and construction clamp RSF 177 20 VA M8 5317512
50 piece
