Round conductor, galvanised steel with PVC jacketing 10 | 50 | 75 | 78 | Steel

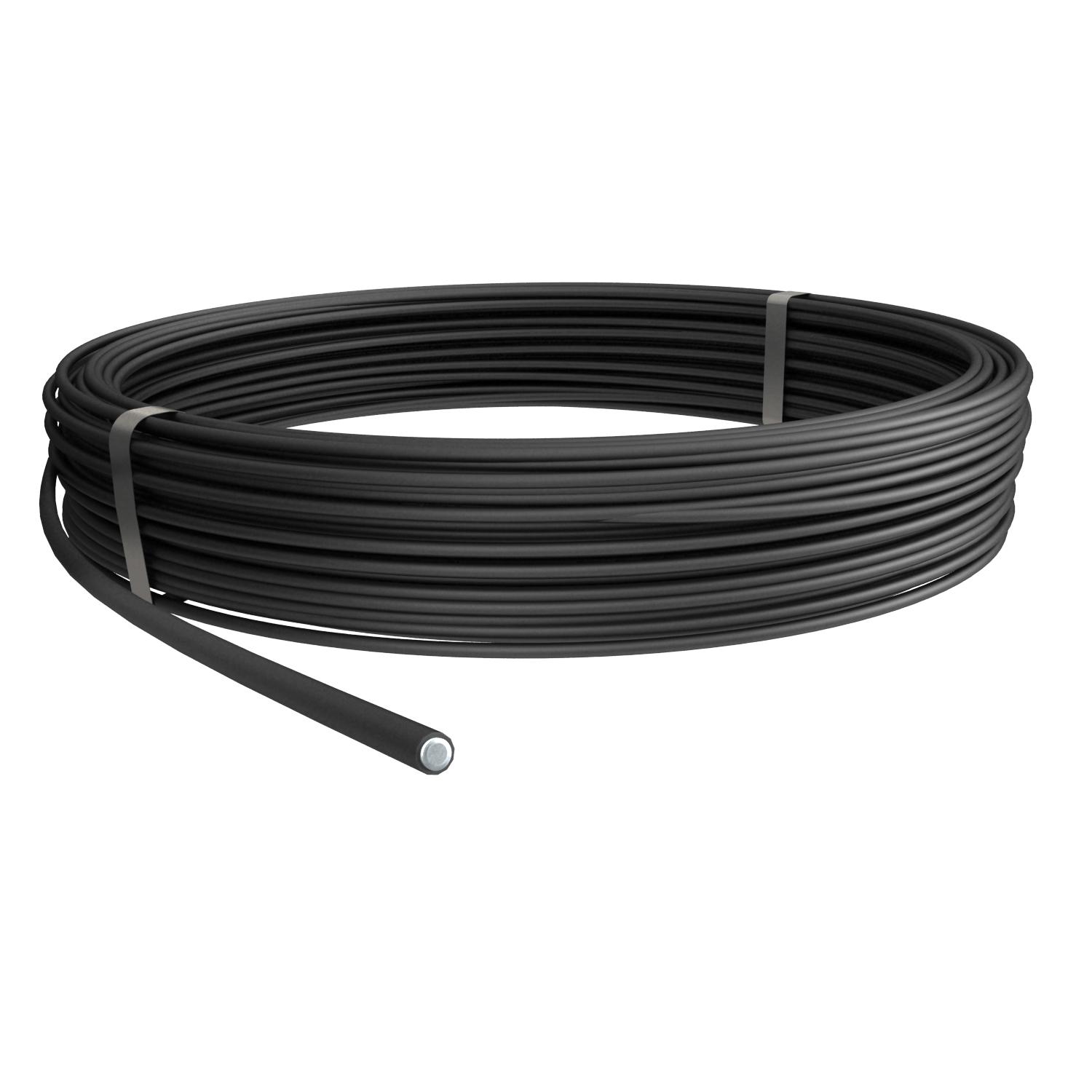

Round conductor, galvanised steel with PVC jacketing

Item no. 5021162 | EAN 4012195381730

Item no. / Types	5021162 / RD 10-PVC

Diameter	10 mm

Normal ring (ca. kg)	50

Nomal ring (approx. m)	75

Cross-section	78 mm²

Material	Steel

Product description

Product description

• Can be used as an earthing conductor
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 350 g/m² (approx. 50 µm in mean value)
• With PVC jacketing

Technical data

Technical data

Colour	Black
Cross-section	78 mm²
Diameter	10 mm
Dimension	10mm

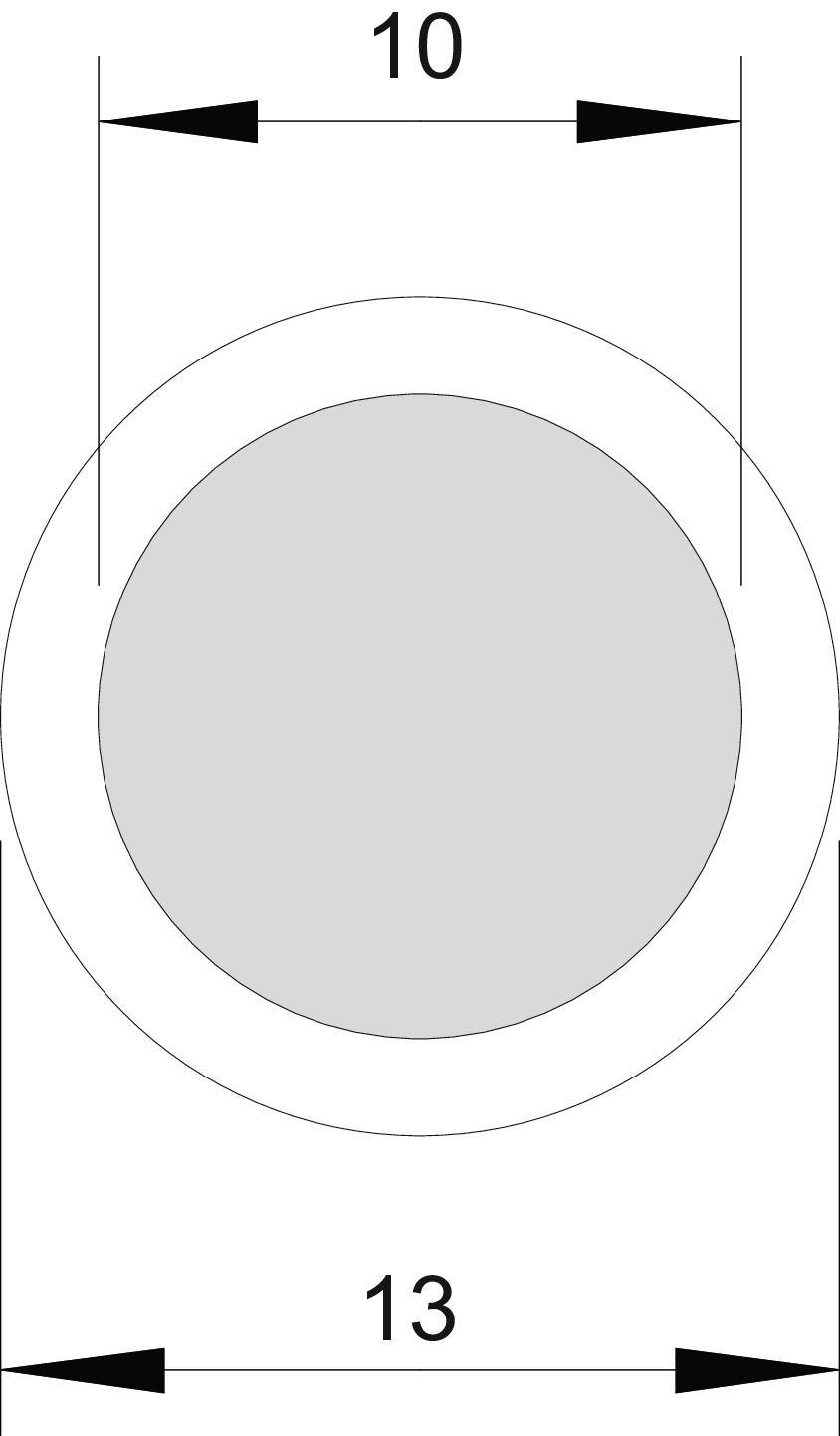

Dimension D	13 mm
Dimension d	10 mm
High voltage-resistant, insulated version	no
Length tolerance ±	5 %

Material	Steel
Material jacket	PVC
Material property	Miscellaneous
Nomal ring (approx. m)	75
Normal ring (ca. kg)	50
Number of individual wires	1
Surface	Hot-dip galvanised

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 10-PVC	10 mm	50	75	78 mm²	Steel	5021162	m	75 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cross-connector with intermediate plate for Rd 8−10 mm FT	252 8-10 FT	5312310	piece	25 piece
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT	252 8-10X16 FT	5312345	piece	25 piece
Cross-connector Rd 8−10 mm	253 8X8	5312604	piece	25 piece
Cross-connector for round and flat conductors FT	252 8-10XFL30 FT	5312655	piece	25 piece
Cross-connector for Rd 8−10 x Rd 16	253 10X16	5312809	piece	25 piece
Cross-connector for flat conductors and round conductors FT	250	5312906	piece	25 piece
Diagonal clamp for flat conductors and round conductors FT	250 A-FT	5313015	piece	25 piece
