Screed box for GES R2
Item no. 7428526 | EAN 4012196459483
- Product description
-

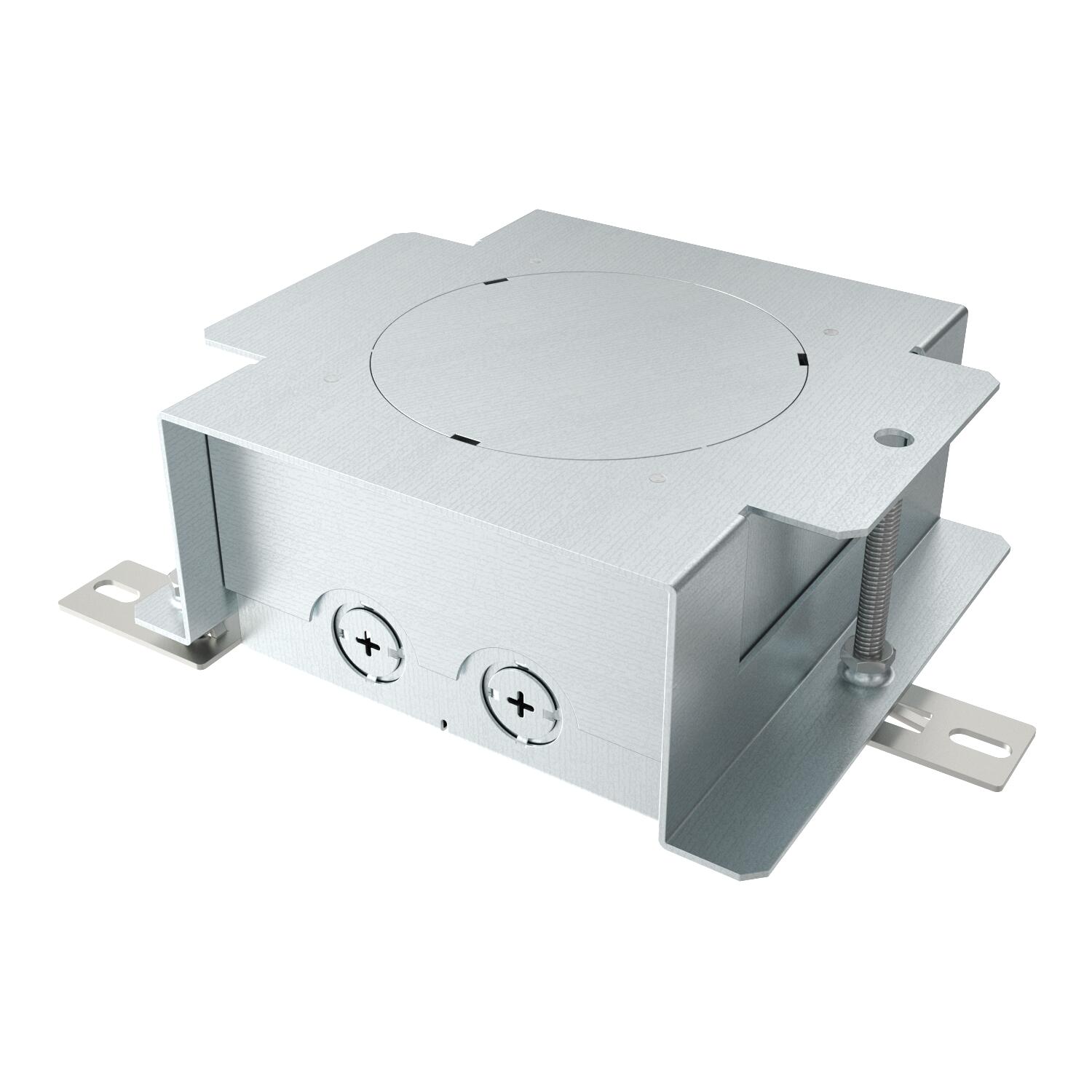

Product descriptionHeight-adjustable screed box for the installation of the installation socket of the GES R2 floor socket.
With 2x2 insertion openings for installation pipes (M20/M25).
-
- Technical data
-
Technical data
CO₂ Footprint (GWP) Cradle-to-Gate 6,7349 kg CO₂e / 1 Piece Decouplable no Expansion option For installation of accessories Floor plate yes For pipe connection yes Height-adjustment range, max. 130 mm Height-adjustment range, min. 85 mm Installation diameter 122 Installation opening for flush-mount unit Round Material Steel Minimum screed height 85 Screed height, max. 130 mm Screed height, min. 85 mm Seal installation option no Suitable for cavity floor installation no Suitable for raised floor installation no Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Surface Strip galvanized Version for Round - All types
