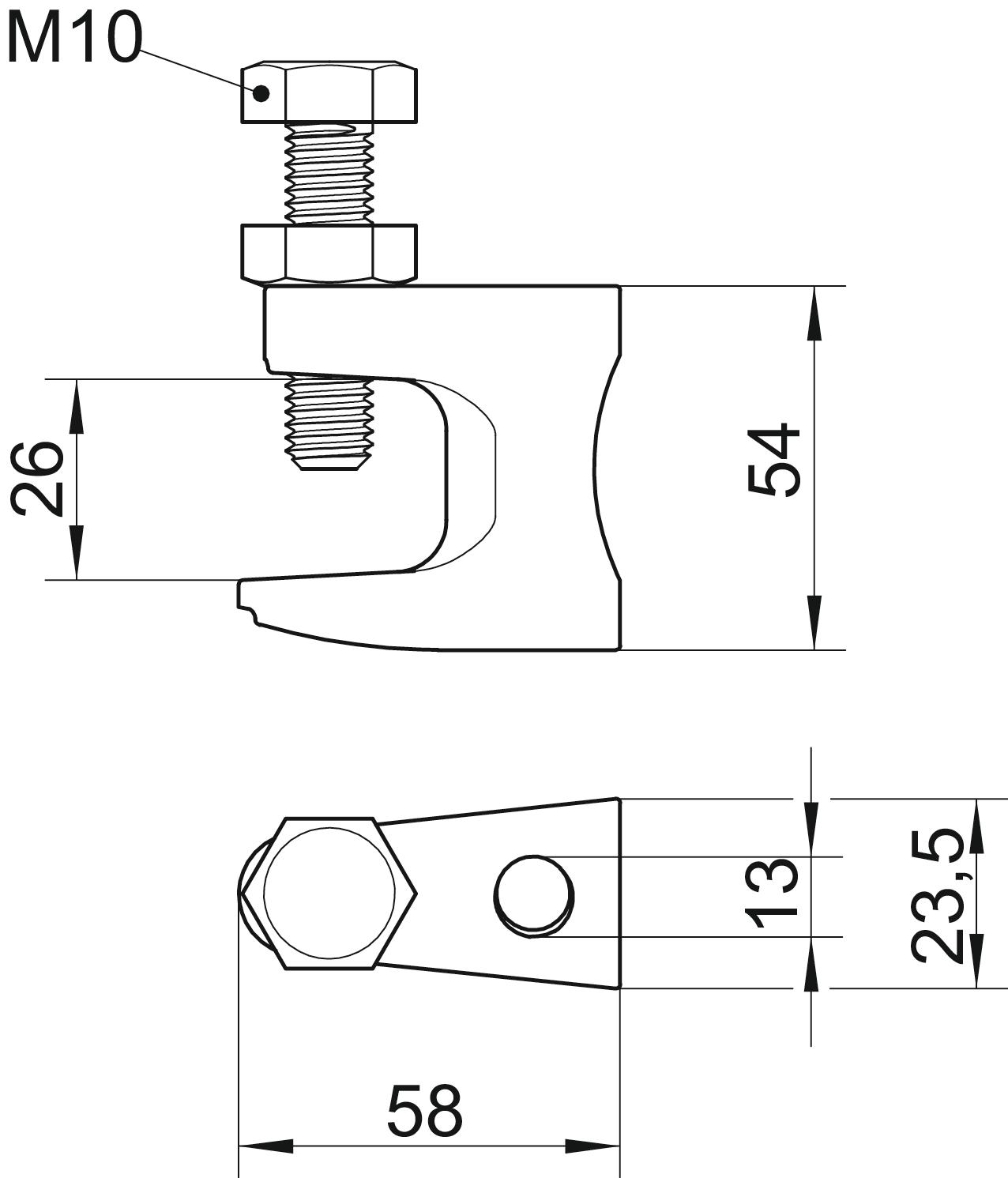

Screw-in beam clamp, with gland hole 58 | 23.5 | 54 | | | | 26 | 13 | 3.5 | M10
morepic-1 morepic-2 video-1

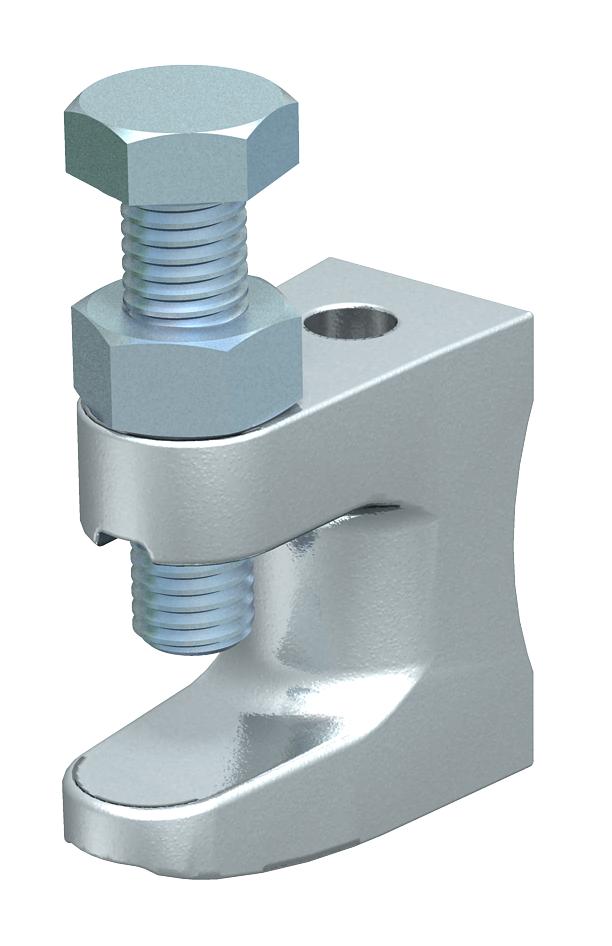

Screw-in beam clamp, with gland hole

Item no. 1488031 | EAN 4012195150978

Product description

Product description

With gland hole.

Max. tightening torque: 21 Nm
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 3,5 kN
Connection type/component Hole
Dimension 0-26mm
Dimension B 23,5 mm
Dimension D 13 mm
Dimension F 26 mm
Dimension G (mm) M10
Dimension H 54 mm
Dimension L 58 mm
Fastening hole 13 mm
Fastening type Bolts
Flange thickness F max. 26 mm
Height 54 mm
Hinge, adjustable no
Hinged no
Length 58 mm
Material Cast iron
Max. Tightening torque 21 Nm
Thread M10
Thread metric 10
Width 23,5 mm
All types

All types

Types Length Width Height Flange thickness F max. Fastening hole Breaking load Thread Item no. Quantity SSU
FL 1 TG 38 mm 19 mm 35 mm 18 mm 9 mm 1.2 kN M8 1488015
50 piece
FL 2 TG 44 mm 21 mm 42 mm 20 mm 11 mm 2.5 kN M10 1488023
50 piece
FL 3 TG 58 mm 23.5 mm 54 mm 26 mm 13 mm 3.5 kN M10 1488031
25 piece
