Screw-in spacer clip 2 | M6 | 8 | 12 | Steel | Electrogalvanized

morepic-1

morepic-2

Screw-in spacer clip

Item no. 1366122 | EAN 4012195117919

Item no. / Types	1366122 / 731 W 12 G

Material thickness	2 mm

Hole size	M6 mm

Clamping range D, min.	8 mm

Clamping range D, max.	12 mm

Material	Steel

Surface	Electrogalvanized

Product description

Product description

With M6 thread.

Technical data

Technical data

Bolt	M5 x 12
Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Dimension	8-12mm
Fastening type	Screw hole
Halogen-free	no
Hole size	M6 mm
Material	Steel

Material thickness	2 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
Surface	Electrogalvanized
UV-resistant	yes
Version for	Closed

Dimensions

Dimension A	43 mm
Dimension B	28 mm
Dimension D	12 mm

Dimension d min.	12 mm
Dimension t	2 mm
Length	43 mm

All types

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
731 W 12 G	2 mm	M6 mm	8 mm	12 mm	Steel	Electrogalvanized	1366122	piece	50 piece

Downloads

Data sheet 731 W 12 G / 1366122 , 0.19MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 731 W 12 G / 1366122 , 0.13MB , pdf

REACH Declaration of conformity 731 W 12 G / 1366122 , 0.12MB , pdf

Download

RoHS Declaration of conformity 731 W 12 G / 1366122 , 0.12MB , pdf

Download

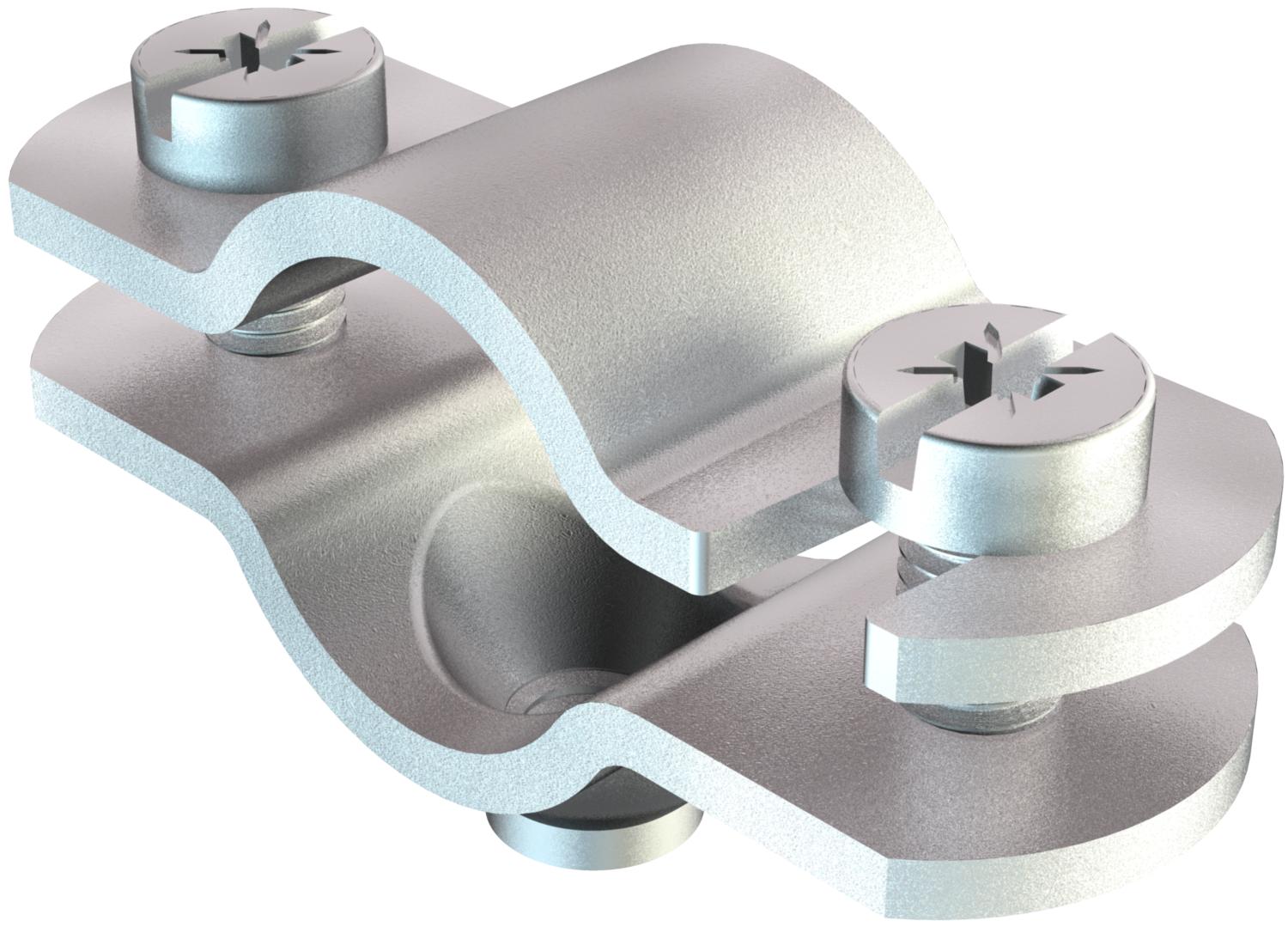

Product graphic 731 W 12 G / 1366122, 151.22 kB, jpg

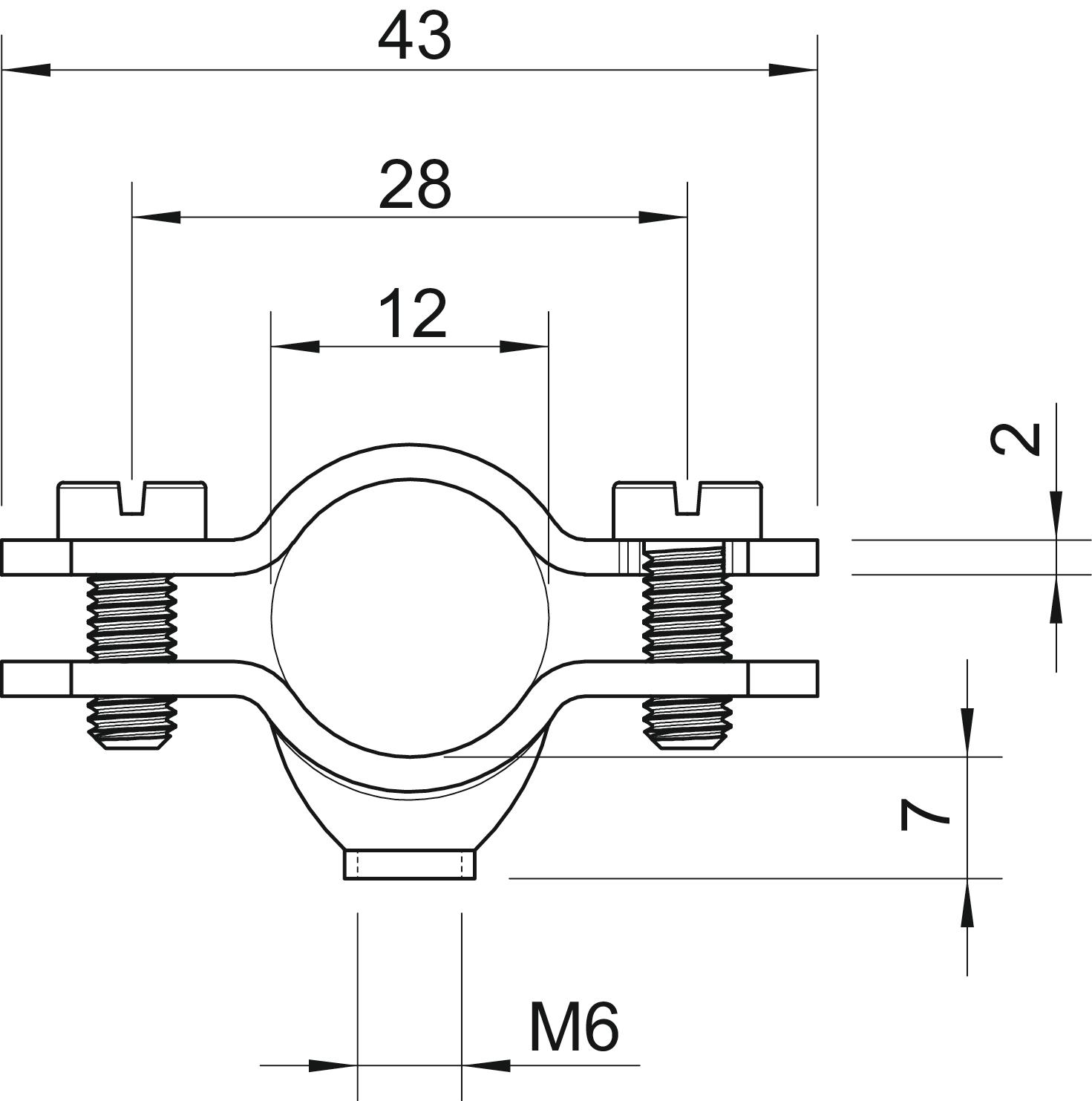

Scale drawing 731 W 12 G / 1366122, 91.66 kB, jpg
