Screwless terminal, 5-pole
Item no. 2054507 | EAN 4012195825319
- Product description
-
Product description
Screwless terminal to connect single-strand cables.
Nominal cross-section:
5 x 0.5 mm² to 2.5 mm² single-wire cable
5 x 1.5 mm² to 2.5 mm² rigid, multi-wire cable
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 8–9 mm.
Inspection opening: phase tester and testing pin (max. Ø 2 mm).
-
- Technical data
-
Technical data

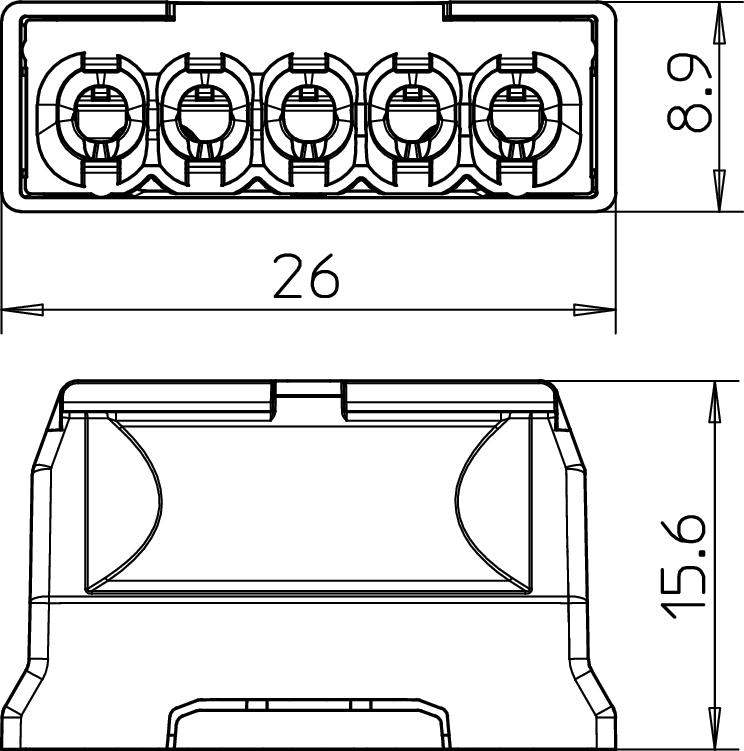

Colour Light grey; RAL 7035 Connectable conductor cross-section, multi-wire, max. 2,5 mm² Connectable conductor cross-section, multi-wire, min. 1,5 mm² Connectable conductor cross-section, single-wire, max. 2,5 mm² Connectable conductor cross-section, single-wire, min. 0,5 mm² Cross-section 5 x 0.5 mm² to 2.5 mm² single-wire cable 5 x 1.5 mm² to 2.5 mm² rigid, multi-wire cable mm² Dimension 5x2,5mm² Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C Height 8,9 mm Length 26 mm Material Polyamide No. of terminals 5 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 0,5 mm² Nominal current 24 A Nominal voltage 450 V Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Pole number 5 Suitable for flexible conductors no Suitable for multi-wire conductors yes Suitable for solid conductors no Width 15,6 mm With actuating levers no - All types
- Downloads
-
Data sheet 61 525 LGR / 2054507 , 0.24MB , pdfDeclaration of conformity 61 525 LGR / 2054507 , 0.05MB , pdfREACH Declaration of conformity 61 525 LGR / 2054507 , 0.12MB , pdfRoHS Declaration of conformity 61 525 LGR / 2054507 , 0.12MB , pdf
