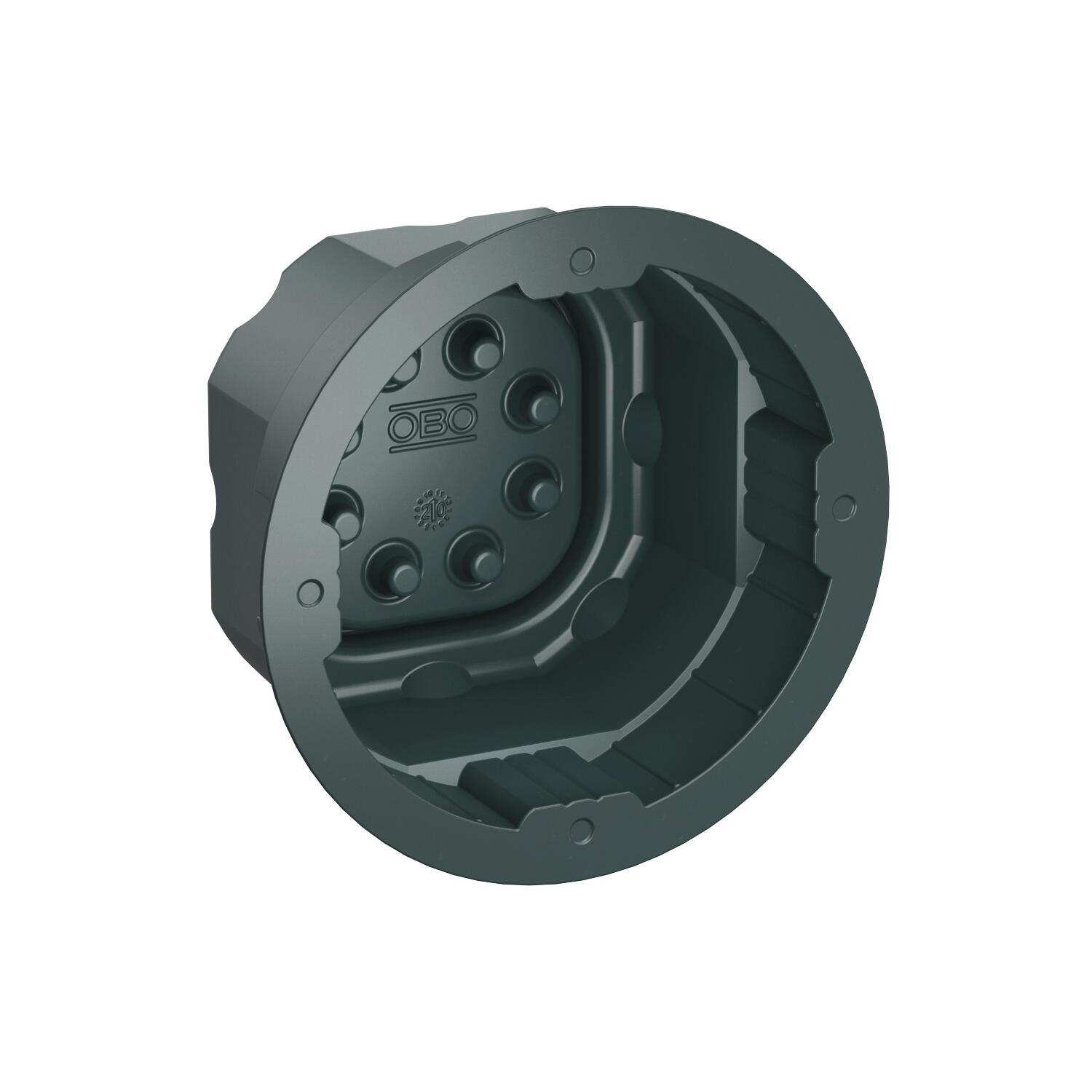

Sealing insert for device box
Item no. 2003719 | EAN 4012196865253
- Product description
-
Product descriptionSealing insert for flush-mounted and cavity wall boxes, to seal against ingress of air.
-
- Technical data
-
Technical data

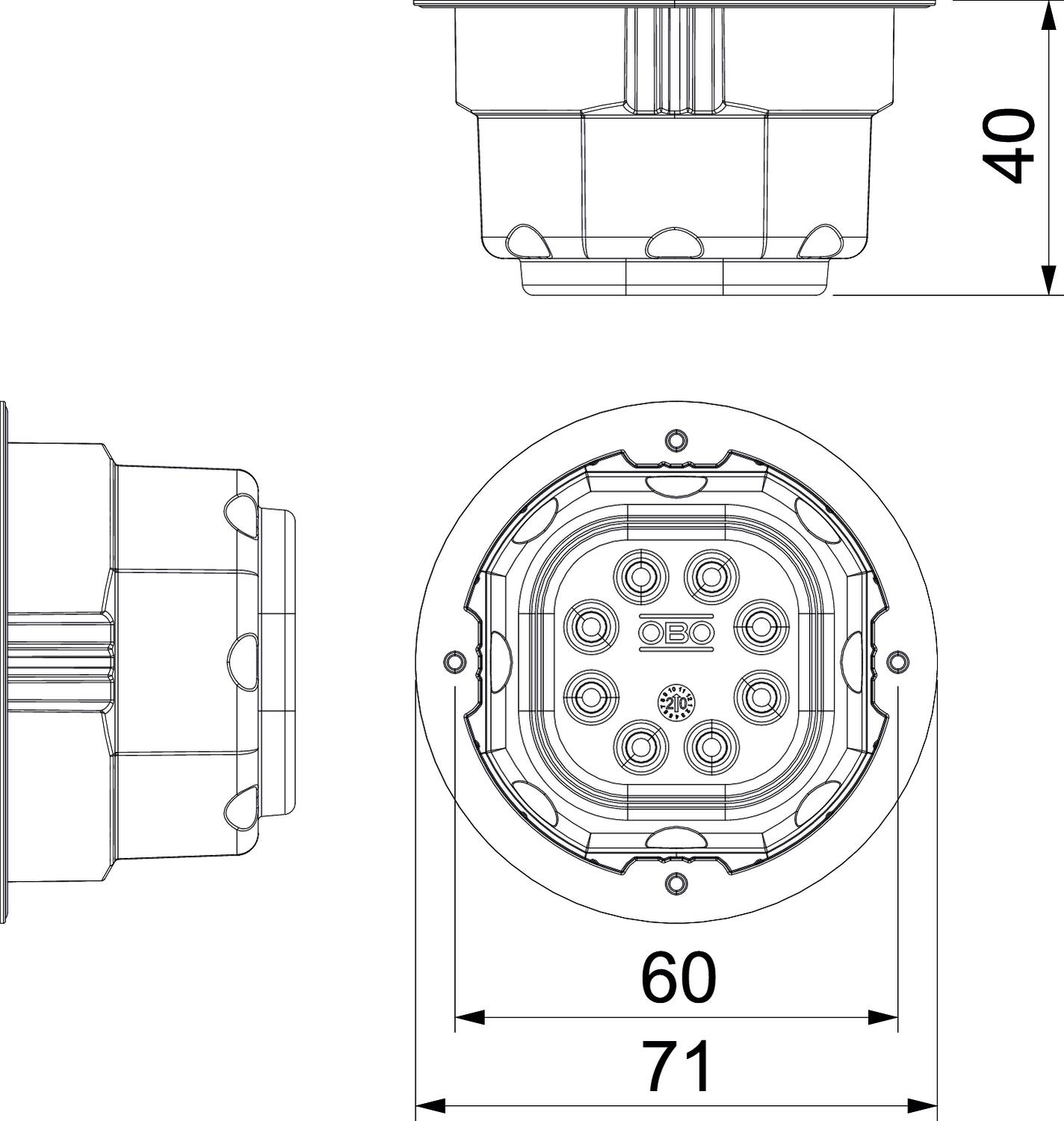

Airtight yes Colour Grey Cover Without Cover screw clearance 60 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,0281 kg CO₂e / 1 Piece Diameter 71 mm Dimension Ø71x40 Entries Membrane entries
Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C Halogen-free yes Height 40 mm Material Thermoplastic elastomer No. of entries 8 Shape Round Type of insertion 8 x Ø1mm to 4mm - All types
- Downloads
-
Data sheet ZA 60-DE / 2003719 , 0.20MB , pdfREACH Declaration of conformity ZA 60-DE / 2003719 , 0.12MB , pdfRoHS Declaration of conformity ZA 60-DE / 2003719 , 0.13MB , pdfMounting instructions Mounting instructions, UP flush-mounted device boxes , 12.98MB , pdf
