Sealing sleeve for round cables RD 10

morepic-1

morepic-2

Sealing sleeve for round cables

Item no. 2360041 | EAN 4012196421046

Item no. / Types	2360041 / DW RD10

Fit	RD 10 mm

Product description

Product description

• Sealing sleeve for penetrations of waterproof foundation plates/walls
(e.g. white trough)

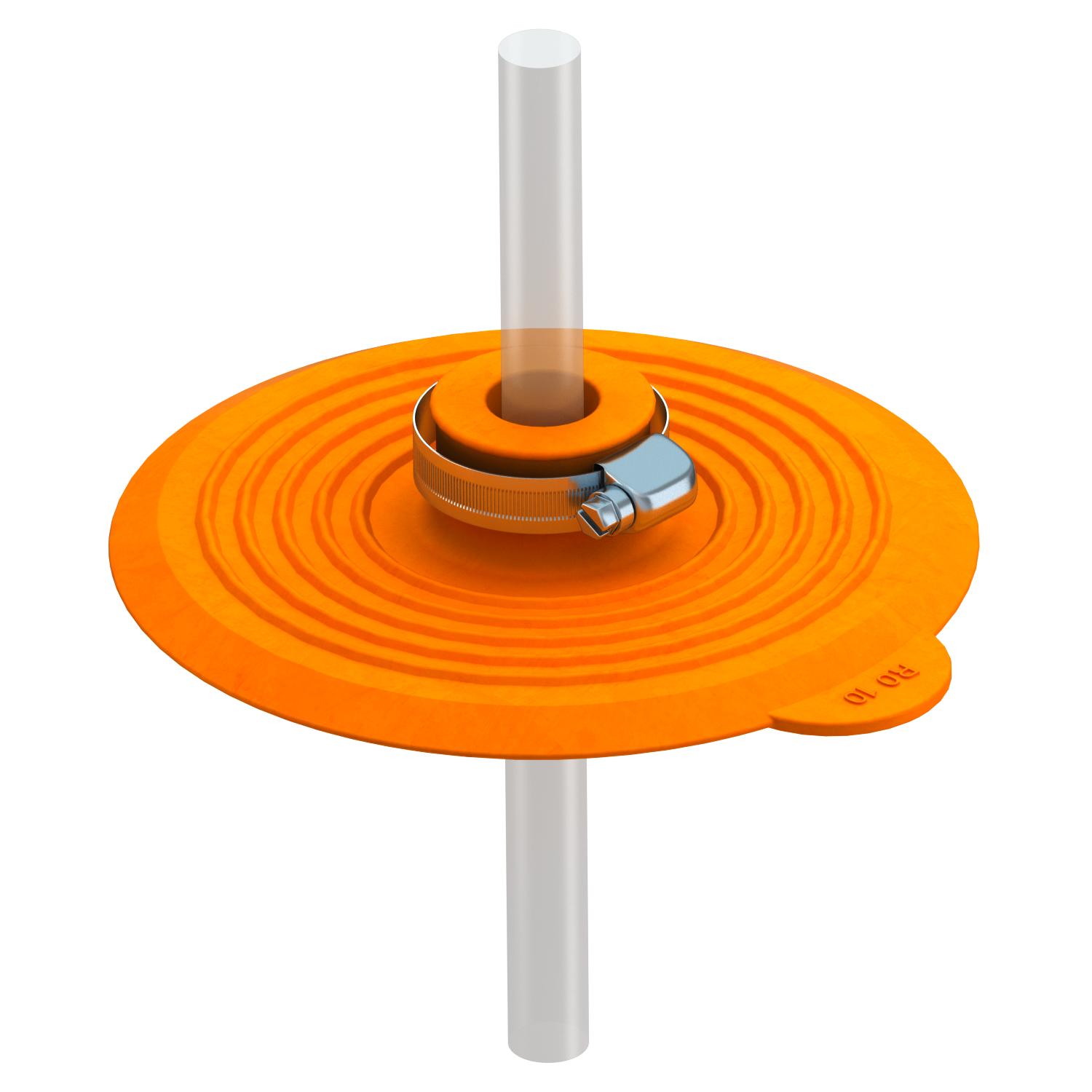

• For mounting on connection lugs with stainless steel tightening straps
• With pressurised water testing to 5 bar
• According to DIN EN 62561-5 (VDE 0185-561-5)

Technical data

Technical data

Colour	Pastel orange; RAL 2003
Dimension	RD10

Fit	RD 10 mm
Material	Thermoplastic elastomer

All types

All types

Types	Fit	Item no.	Quantity	SSU
DW RD10	RD 10 mm	2360041	piece	1 piece

Downloads

Data sheet DW RD10 / 2360041 , 0.18MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

EU declaration of conformity DW RD10 / 2360041 , 0.04MB , pdf

Download

REACH Declaration of conformity DW RD10 / 2360041 , 0.12MB , pdf

Download

RoHS Declaration of conformity DW RD10 / 2360041 , 0.12MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Mounting instructions Mounting instructions, sealing sleeve , 2.00MB , pdf

Download

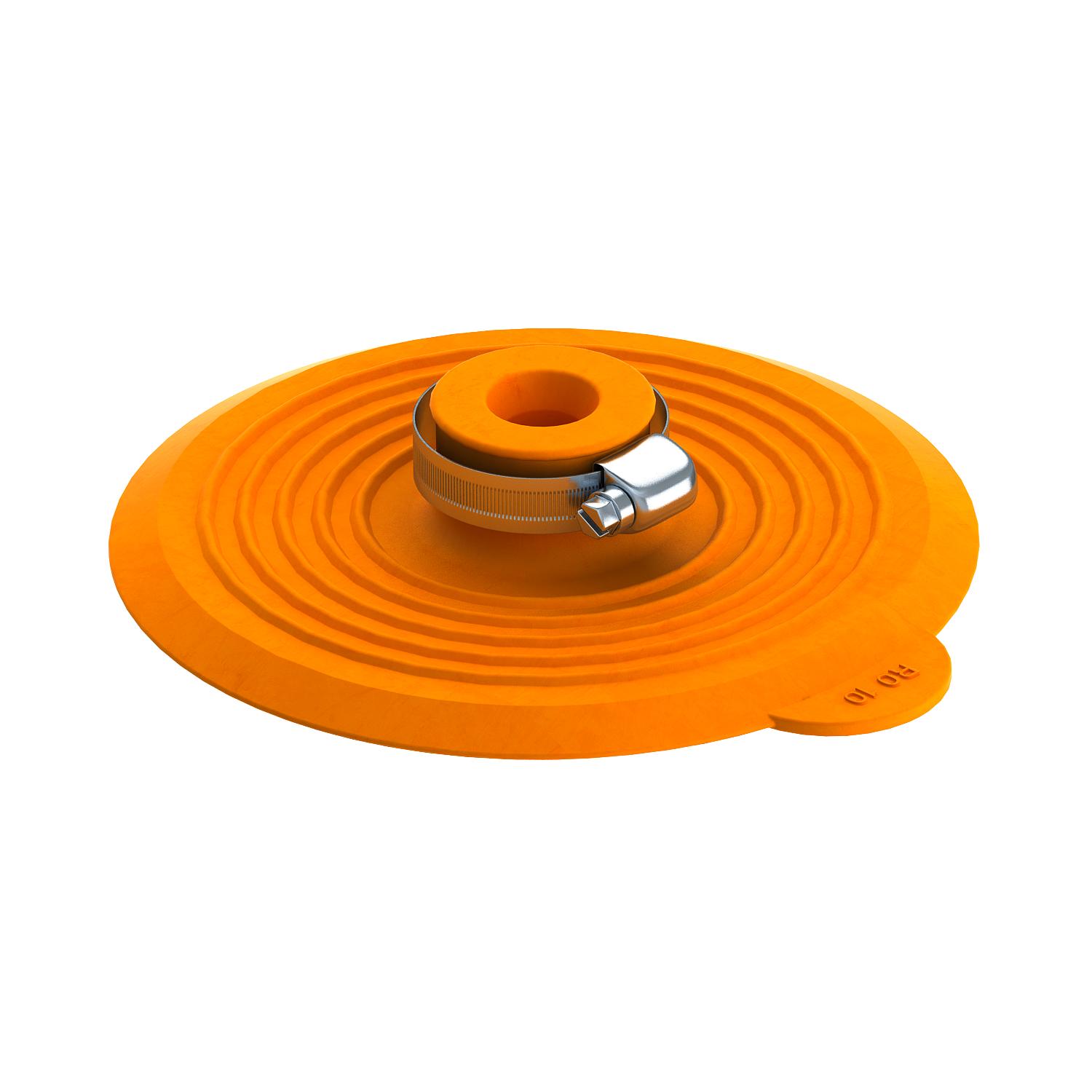

Product graphic DW RD10 / 2360041, 77.99 kB, jpg

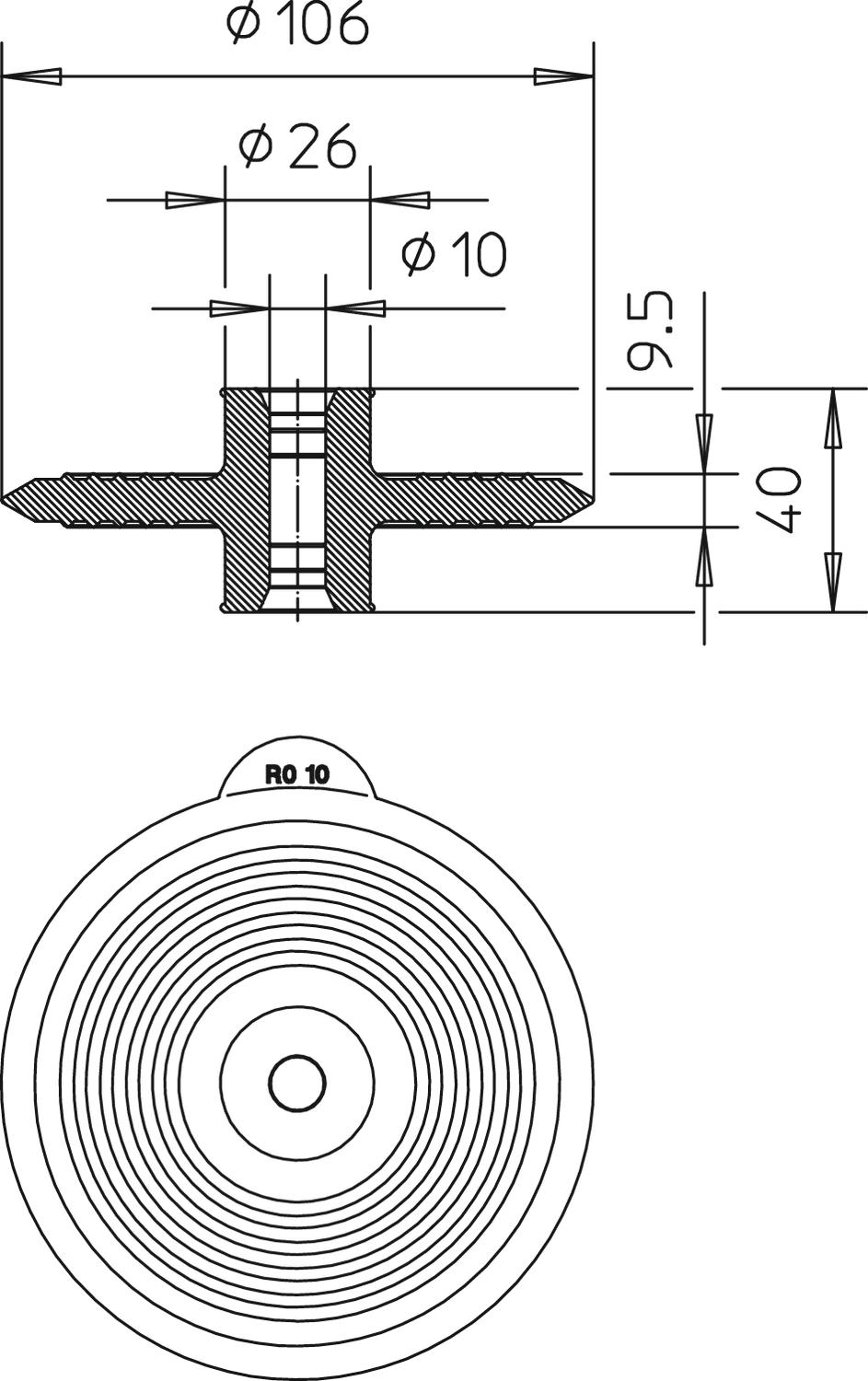

Scale drawing DW RD10 / 2360041, 137.38 kB, jpg

DW RD10 / 2360041

Dichtmanschette für Rundleiter.rfa, 344.00 kB
