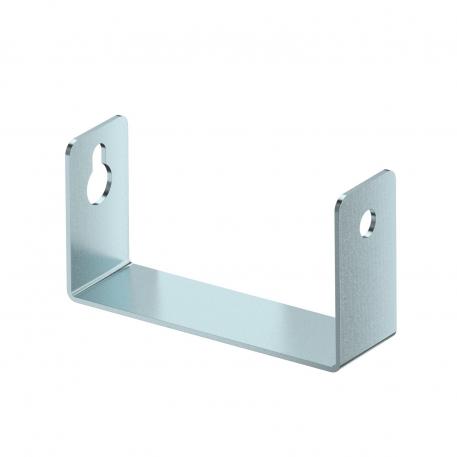

Separating bracket for wall mounting 50 | 116 | 60 | 65

Separating bracket for wall mounting

Item no. 7215484 | EAN 4012196835416

Item no. / Types

Dimension A

Dimension B

Dimension H

Dimension h

Product description

Product description

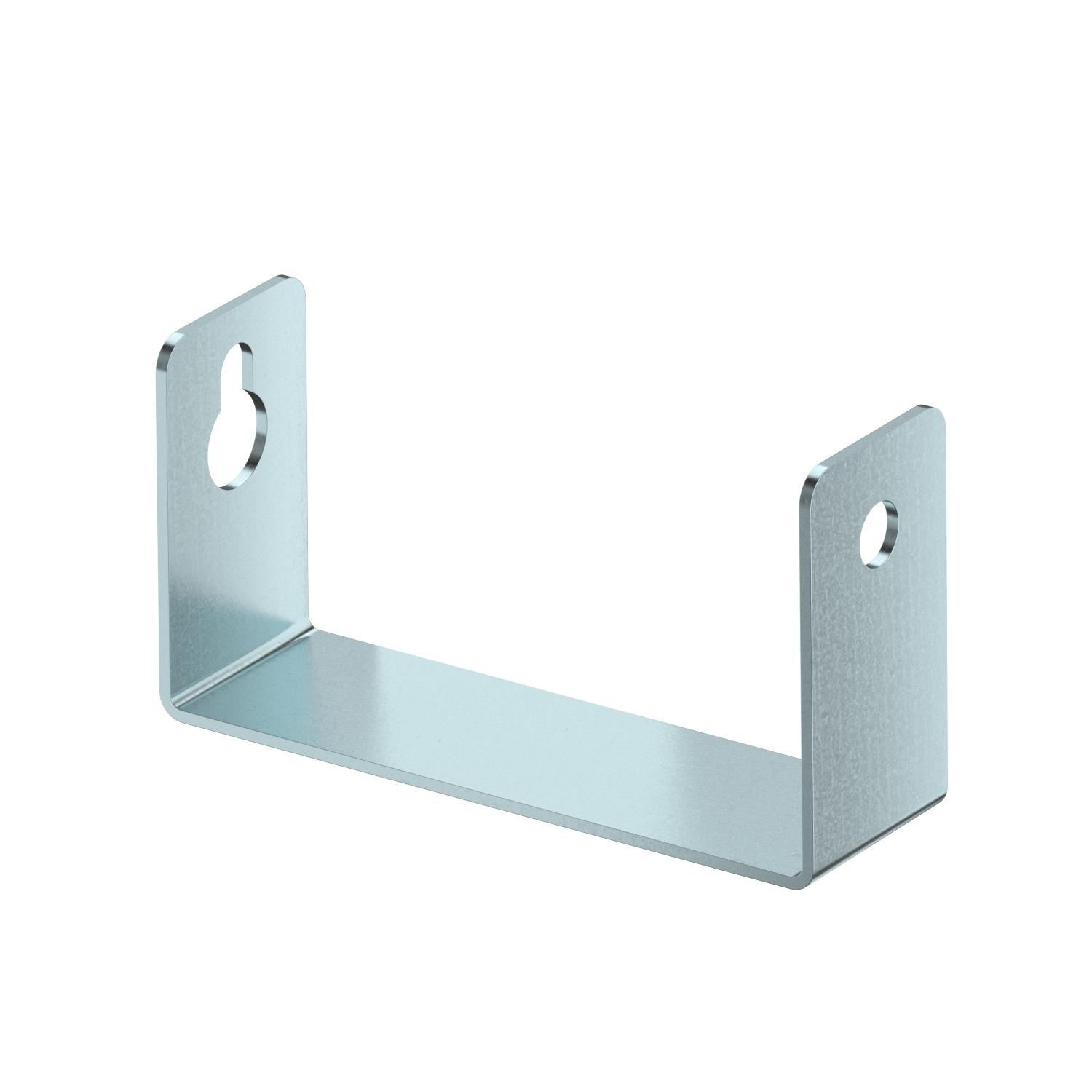

Separating bracket as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the wall, type PLCD D061220 and type PLCD D091220. Mounting of the bracket directly on the fastening anchors of the fire protection duct.

Technical data

Technical data

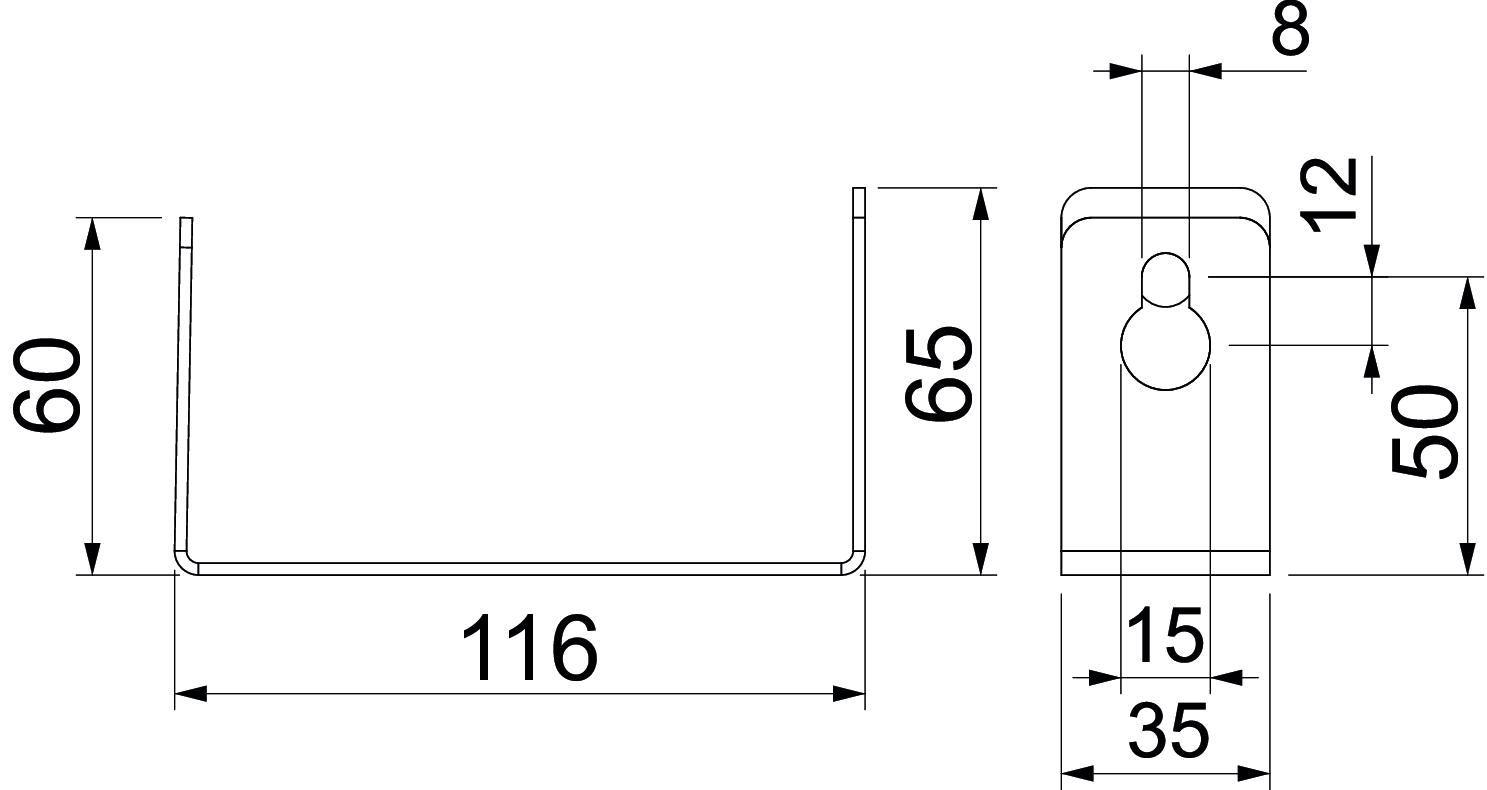

Dimension	100x116x35
Dimension A	50 mm
Dimension B	116 mm
Dimension h	65 mm
Dimension H	60 mm

Duct height, internal	100 mm
Duct width, internal	200 mm
Fastening type	Screw-on
Material	Steel
Surface	Strip galvanized

All types

All types

Types	Dimension A	Dimension B	Dimension H	Dimension h	Item no.	Quantity	SSU
PLCD-SB0810	25 mm	76 mm	35 mm	20 mm	7215480	piece	25 piece
PLCD-SB1220	50 mm	116 mm	60 mm	65 mm	7215484	piece	25 piece
PLCD-SC0810	25 mm	50 mm	35 mm	76 mm	7215490	piece	25 piece
PLCD-SC1220	50 mm	100 mm	60 mm	116 mm	7215494	piece	25 piece
