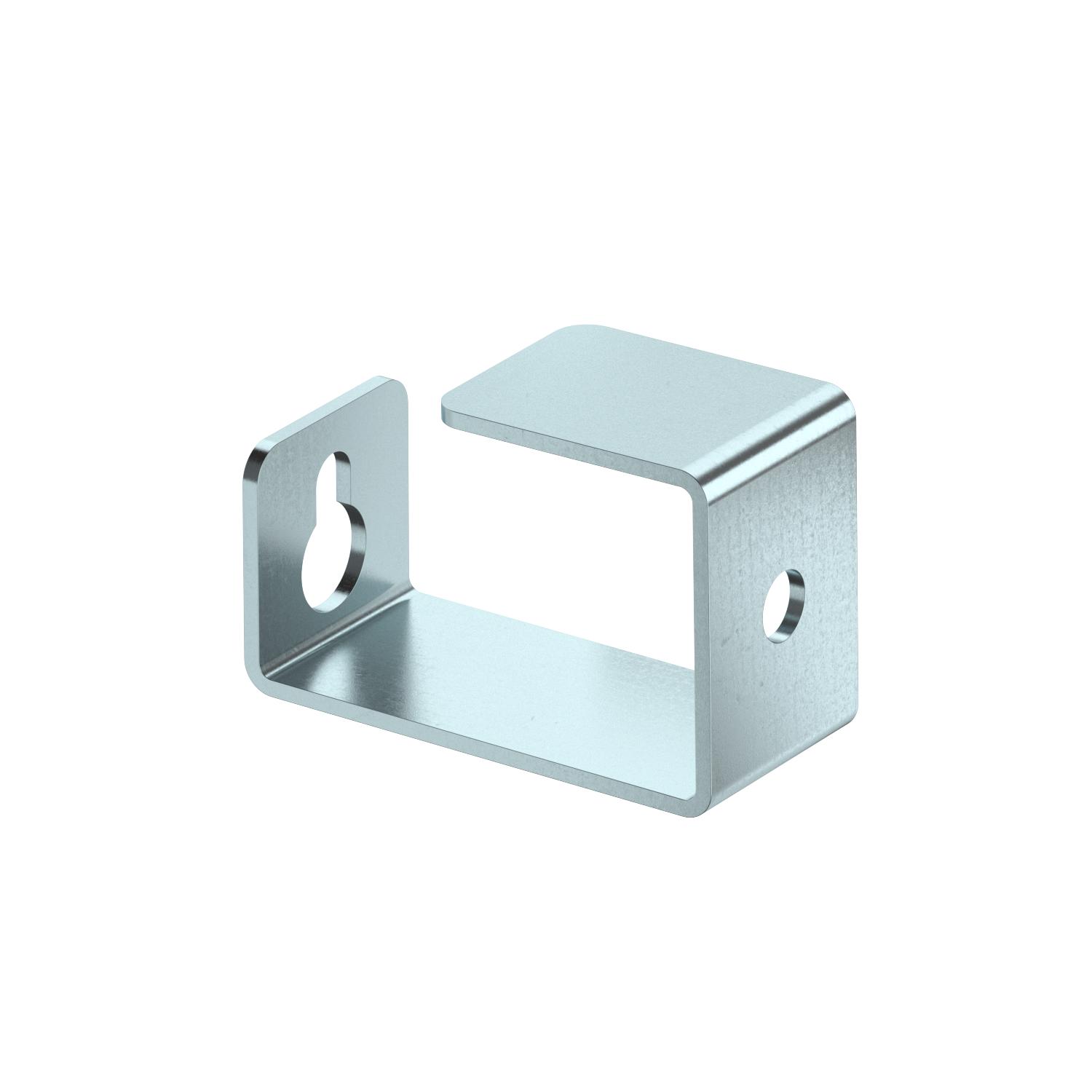

Separating clamp for ceiling mounting
Item no. 7215490 | EAN 4012196835423
- Product description
-
Product descriptionSeparating clamp as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the ceiling, type PLCD D060810 and type PLCD D090810. Mounting of the clamp directly on the fastening anchors of the fire protection duct.
- Technical data
-
Technical data

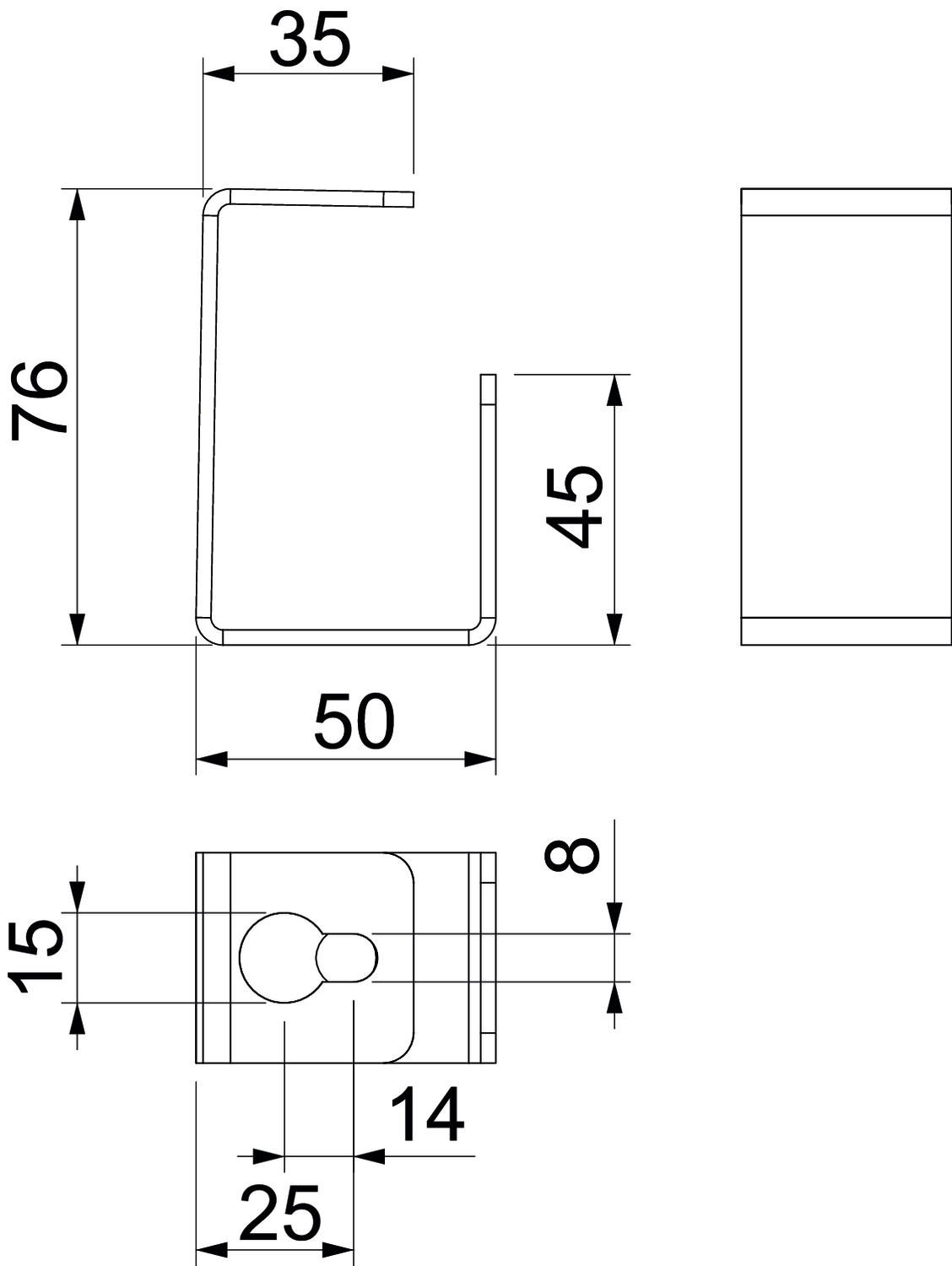

Dimension 76x45x35 Dimension A 25 mm Dimension B 50 mm Dimension b 35 mm Dimension H 76 mm Dimension h 45 mm Duct height, internal 80 mm Duct width, internal 100 mm Fastening type Screw-on Material Steel Surface Strip galvanized - All types
- Downloads
-
Data sheet PLCD-SC0810 / 7215490 , 0.18MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of performance PLCD-SC0810 / 7215490 , 0.31MB , pdfApproval certificate Fire protection ducts PYROLINE® Con PLC , 1.30MB , pdfMounting instructions Mounting instructions, PYROLINE® PLC fire protection duct , 14.60MB , pdfNo invitation to tender text is available for this product.
