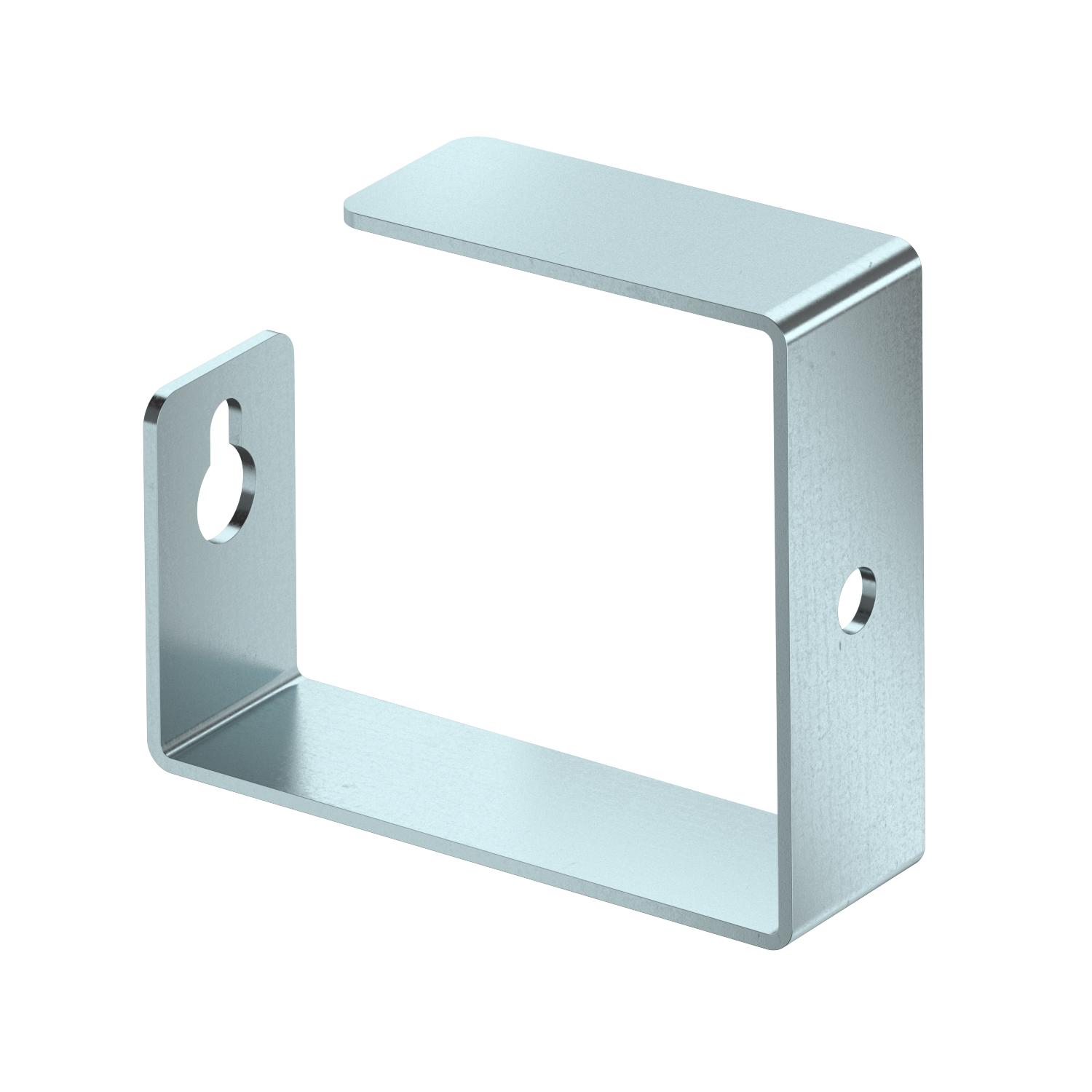

Separating clamp for ceiling mounting 50 | 100 | 60 | 116 | 80

Separating clamp for ceiling mounting

Item no. 7215494 | EAN 4012196835430

Item no. / Types

Dimension A

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

Separating clamp as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the ceiling, type PLCD D061220 and type PLCD D091220. Mounting of the clamp directly on the fastening anchors of the fire protection duct.

Technical data

Technical data

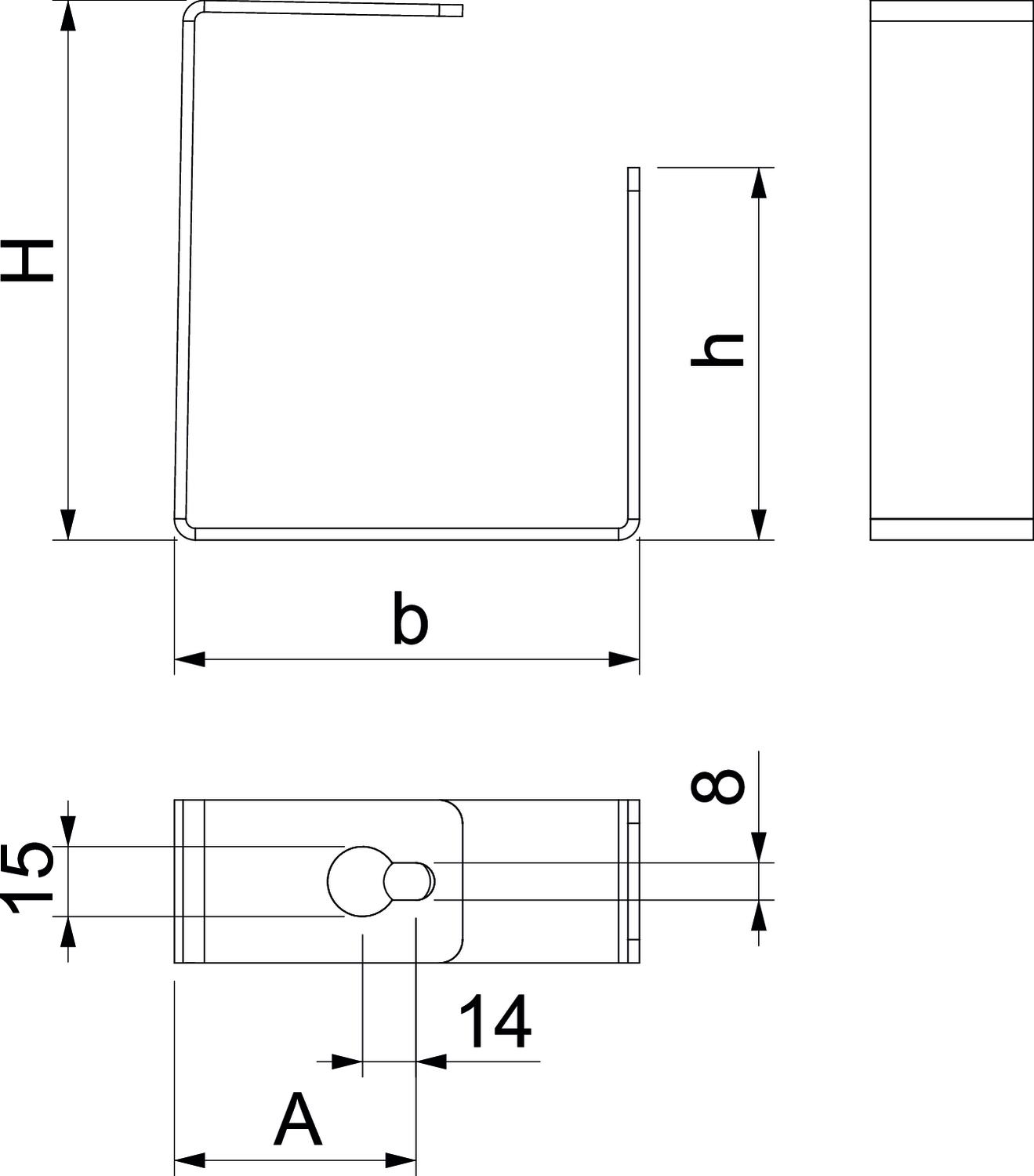

Dimension	116x80x35
Dimension A	50 mm
Dimension B	100 mm
Dimension b	60 mm
Dimension h	80 mm
Dimension H	116 mm

Duct height, internal	120 mm
Duct width, internal	200 mm
Fastening type	Screw-on
Material	Steel
Surface	Strip galvanized

All types

All types

Types	Dimension A	Dimension B	Dimension b	Dimension H	Dimension h	Item no.	Quantity	SSU
PLCD-SB0810	25	76	35	20	-	7215480	piece	25 piece
PLCD-SB1220	50	116	60	65	-	7215484	piece	25 piece
PLCD-SC0810	25	50	35	76	45	7215490	piece	25 piece
PLCD-SC1220	50	100	60	116	80	7215494	piece	25 piece
