Serrated washer DIN 6798 A2
Item no. 3404331 | EAN 4012195301936
- Product description
-

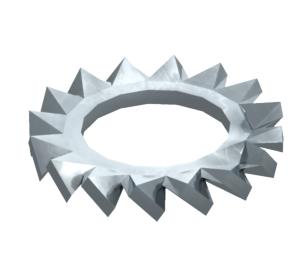

Product descriptionSerrated washer to DIN 6798, shape A.
-
- Technical data
-
Technical data

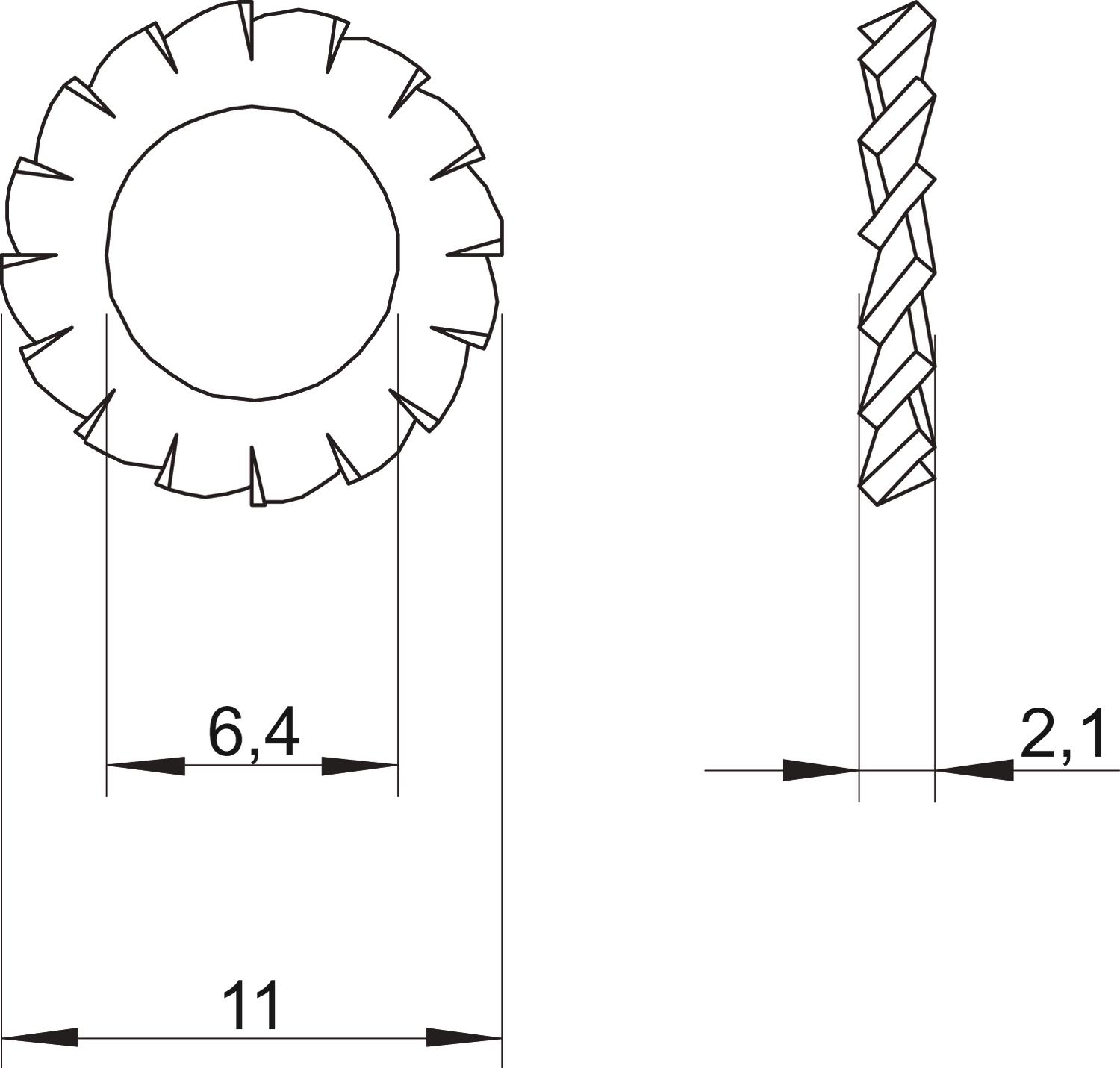

Dimension M6 Dimension d 6,4 mm Dimension d min. 11 mm Dimension h 2,1 mm External diameter 11 mm Height 2,1 mm Inner diameter 0,25 mm Lock washer version Open external gearing Material Stainless steel Plate thickness 0,08 in Surface Bright, treated Thickness 2,1 mm Thread M6 - All types
- Downloads
-
Data sheet SWS M6 A2 / 3404331 , 0.12MB , pdfCatalogue Fastening materials , 19.78MB , pdf
