Serrated washer DIN 6798 G 11 | 6.4 | 2.1 | M6
morepic-1 morepic-2

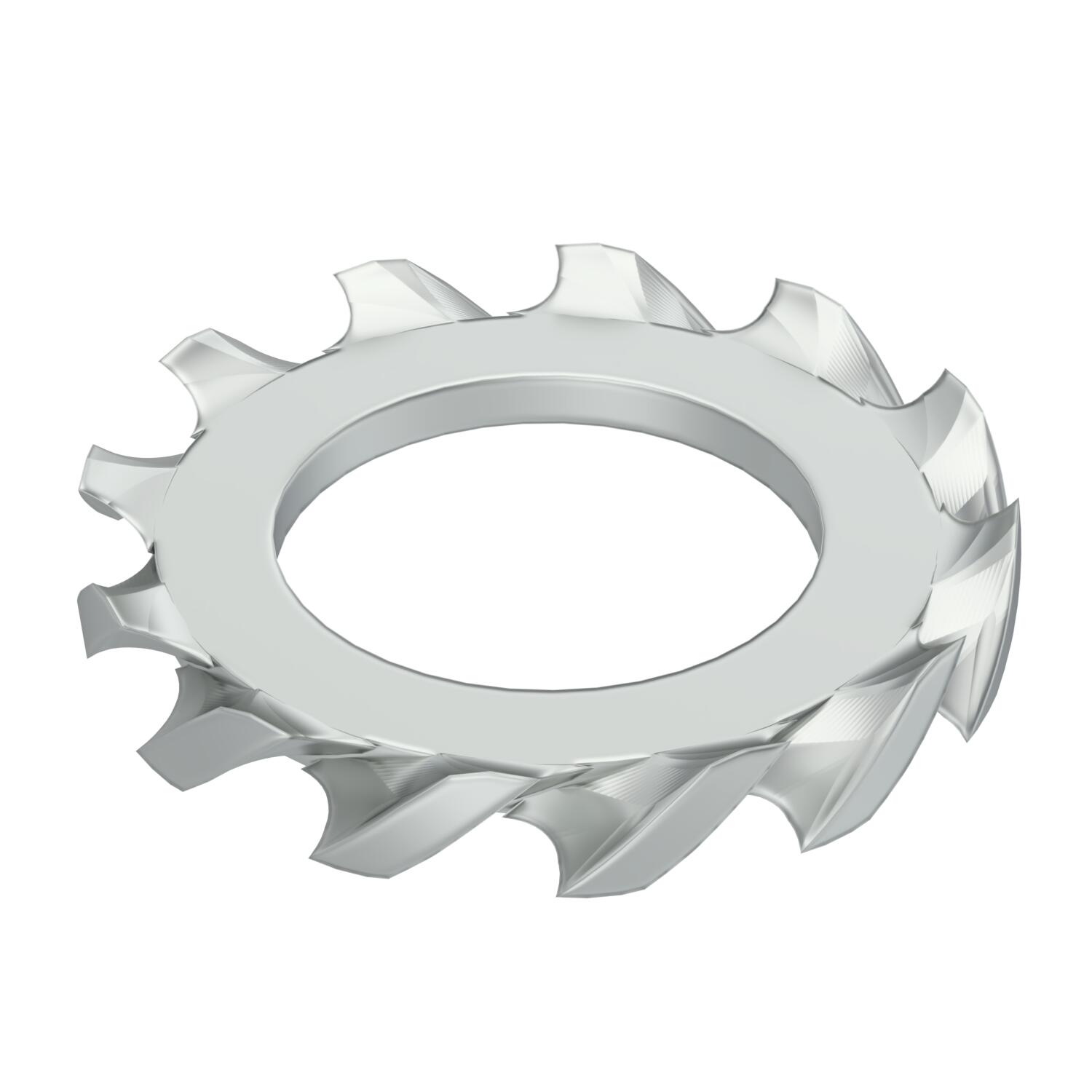

Serrated washer DIN 6798 G

Item no. 3404064 | EAN 4012195301639

Product description
Product description
Serrated washer to DIN 6798, shape A.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

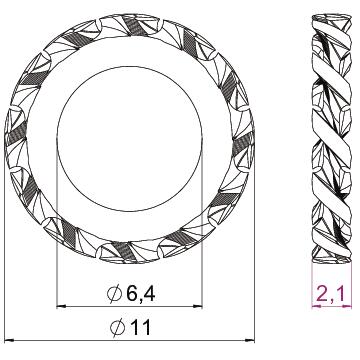

Diameter 11 mm
Dimension M6
Dimension d 6,4 mm
Dimension d max. 11 mm
Dimension d min. 11 mm
Dimension h 2,1 mm
External diameter 11 mm
Height 2,1 mm
Inner diameter 0,25 mm
Lock washer version Open external gearing
Material Steel
Plate thickness 0,08 in
Surface Electrogalvanized
Thickness 2,1 mm
Thread M6
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
SWS M6 G 11 mm 6.4 mm 2.1 mm M6 3404064
100 piece
SWS M8 G 15 mm 8.4 mm 2.4 mm M8 3404080
100 piece
SWS M10 G 18 mm 10.5 mm 2.7 mm M10 3404102
100 piece
SWS M12 G 20.5 mm 13 mm 3 mm M12 3404129
100 piece
