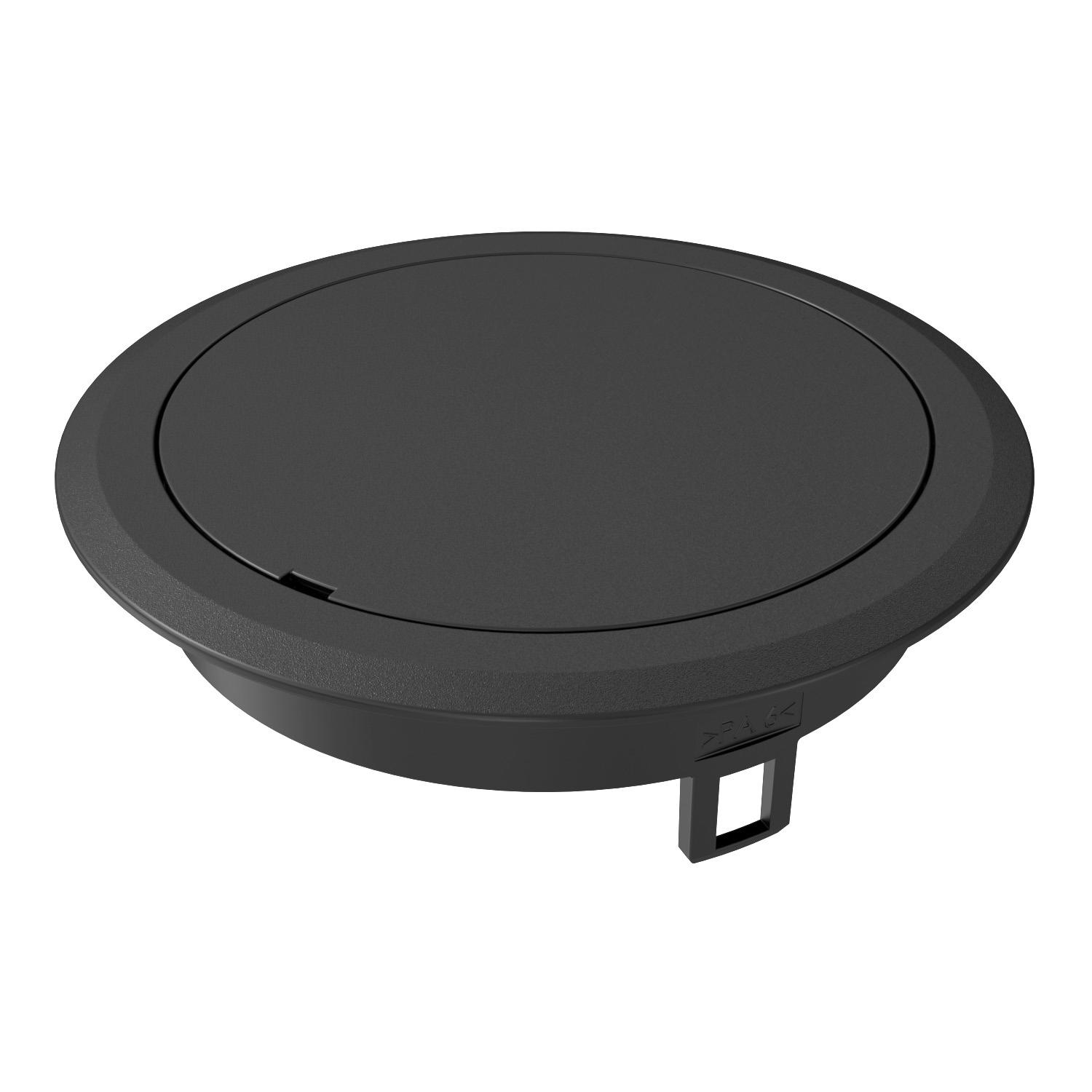

Service outlet with blanking cover and opening contour, GES R2
Item no. 7405088 | EAN 4012196459643
- Product description
-
Product descriptionService outlet with blanking cover and opening contour for GES R2 floor socket for direct installation in the MT R2 installation socket.
For use in dry-cleaned floors for indoor use.
-
- Technical data
-
Technical data

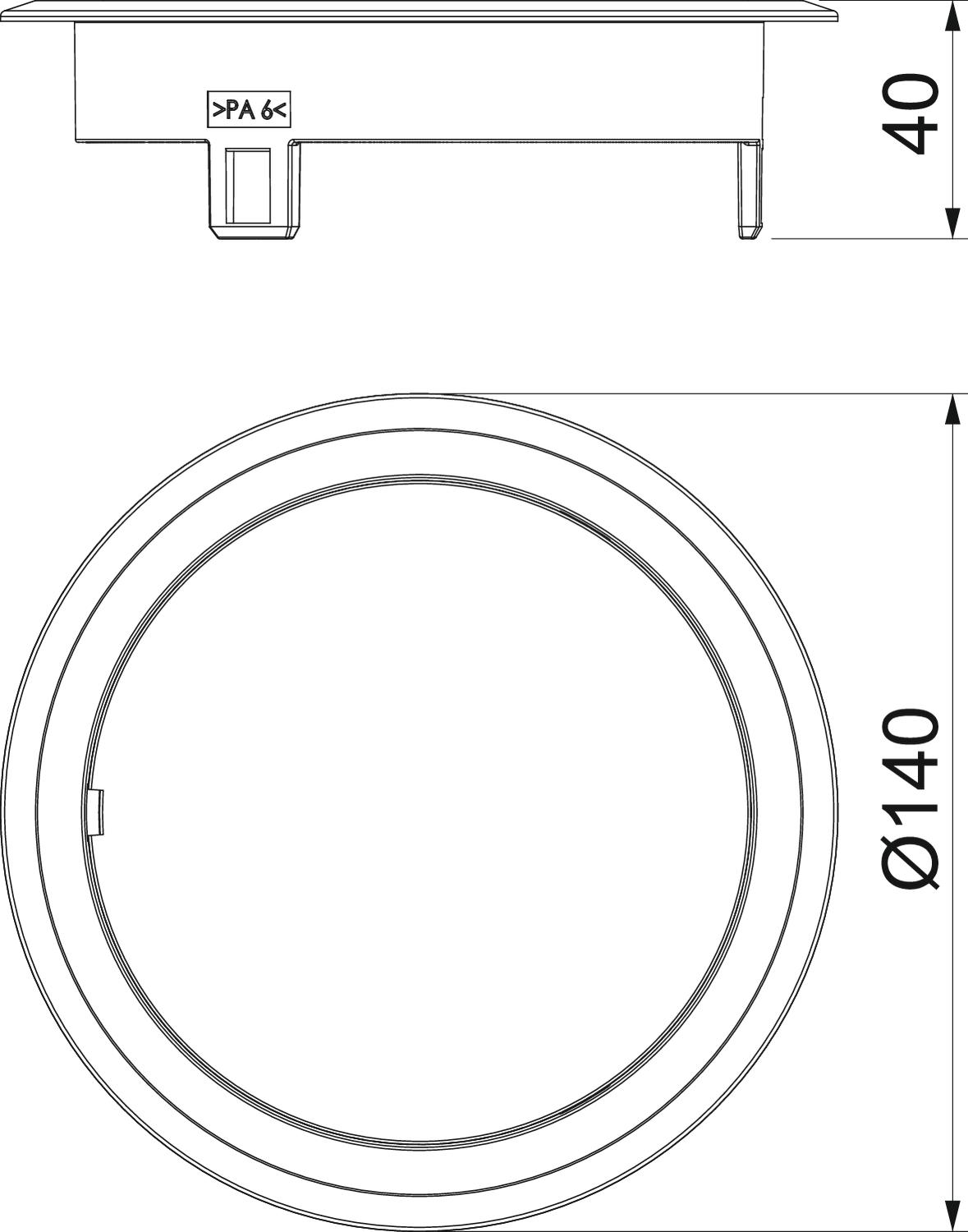

Approvals VDE Cable outlet version No cable outlet Colour Graphite black; RAL 9011 Dimension 140x140x40 External diameter 140 mm Floor care Dry Floor covering protection frame yes Material Polyamide Opening mechanism Tool Protection rating (IP) when unused IP40 Protection rating (IP) when used IP00 Protection rating IK code IK10 Standard EN 50085-2-2 Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for underfloor ducts no Suitable for wet care no Version for Round Vertical load, small area to 500 N With floor covering recess no - All types
-
System accessories
Products Types Item no. Quantity SSU
Mounting plate for data technology, type C
MP R2 2C 7408806 1 piece
Installation socket, double, VDE
MT R2 VDE 7408832 1 piece
Screed box for GES R2
UD GES R2 7428526 1 piece - Downloads
-
