Service pole, type ISS130130
Item no. 6289405 | EAN 4012196770472
- Product description
-

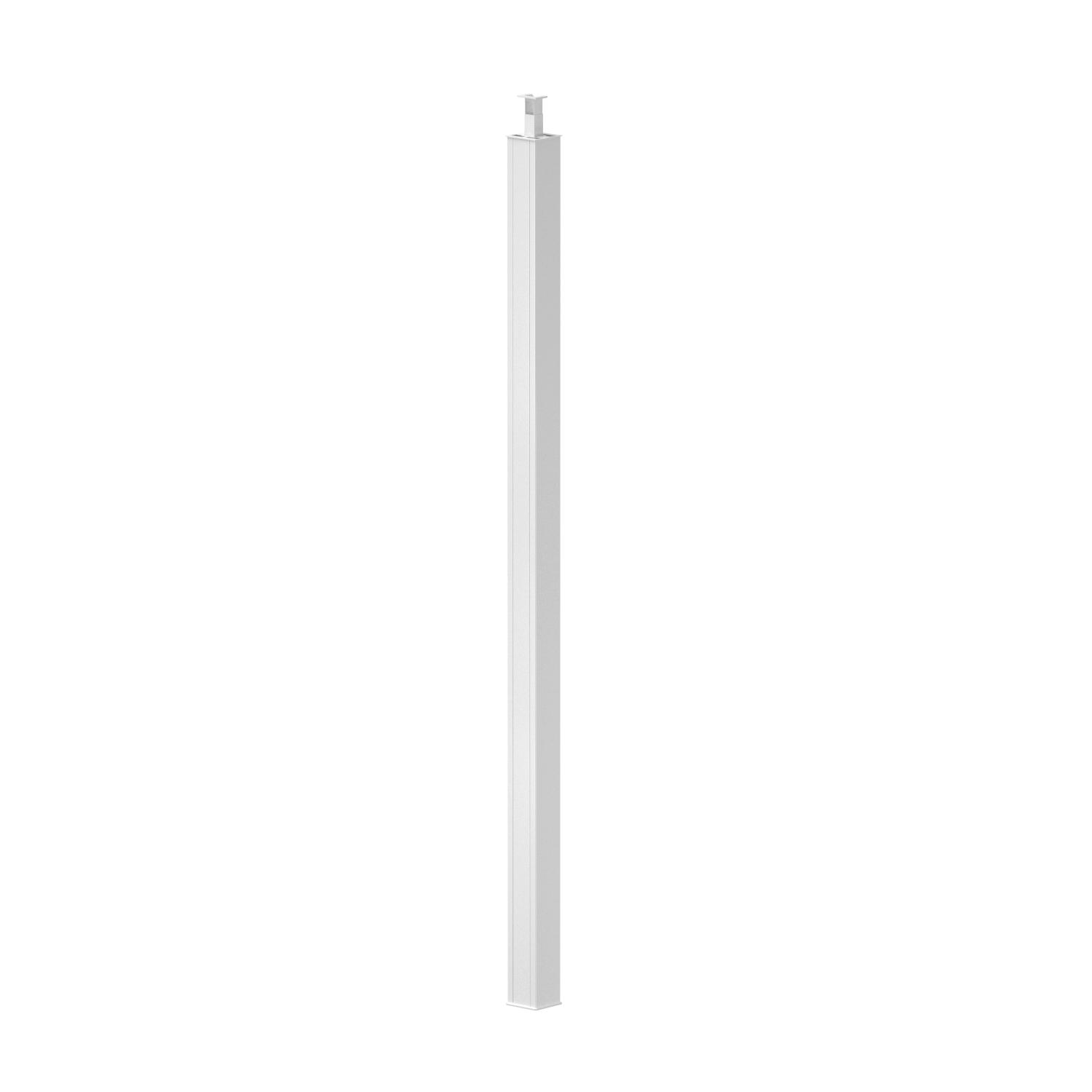

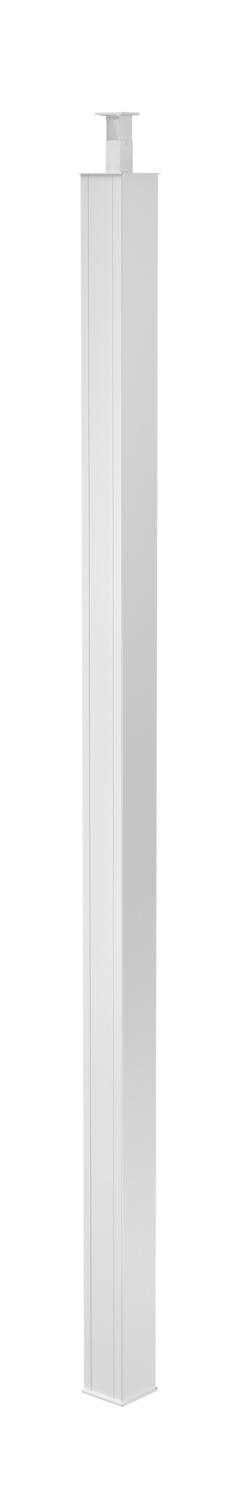

Product descriptionAluminium floor-ceiling service pole (surface anodised or powder-coated in RAL 9010) with two 76.5 system openings to accept device installation sockets of the 71GD series.
-
- Technical data
-
Technical data

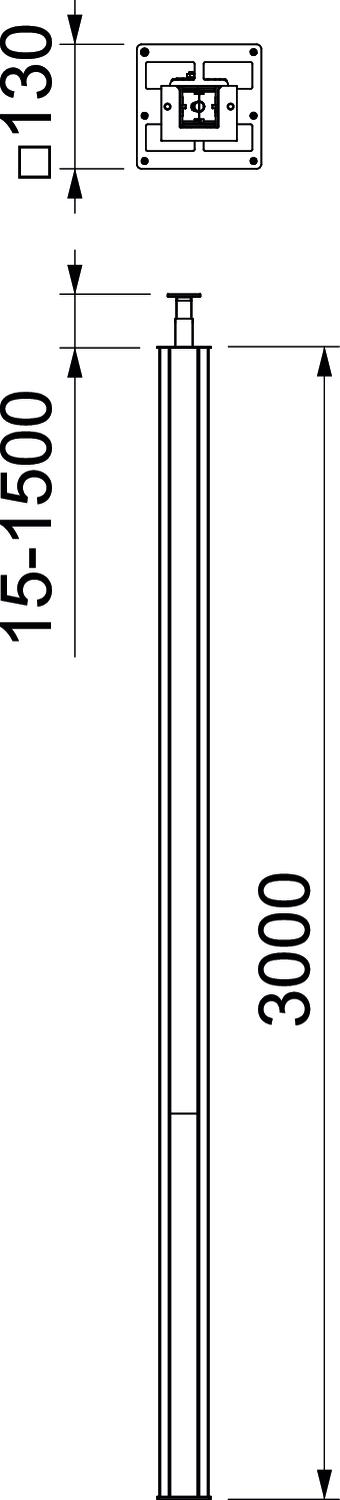

Adjustable yes Cable entry Top/bottom Ceiling mounting yes Changes according to location no Colour aluminium Continuous profile yes Cover width 76,5 mm Dimension 3000x130x130 Fastening type Tension Floor mounting yes Halogen-free yes Height 130 mm Height compensation, max. 1500 mm Height compensation, min. 15 mm Length 3000 mm Material Aluminium Number of compartments 2 St. Number of usable covers 2 Pole height, max. 4500 mm Pole height, min. 3015 mm Pole shape Square Pre-wired no Surface Anodised Version for Double-sided Width 130 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

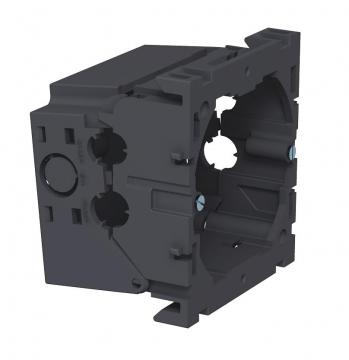

Accessory mounting box 71GD6, single
71GD6 6288610 5 piece

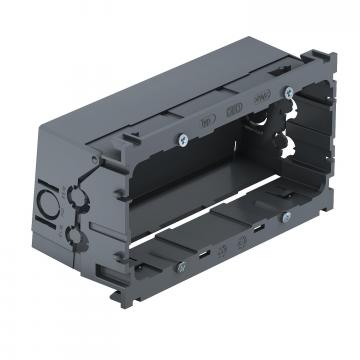

Accessory mounting box 71GD7-2, double
71GD7-2 6288608 2 piece

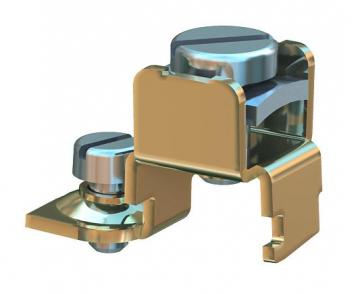

Protective conductor connection bracket
8AWR 6288704 10 piece
Locking bracket RKV3V
RKV3V 6288700 20 piece

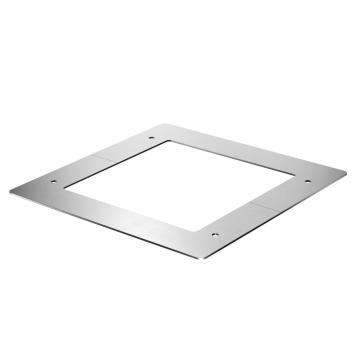

Ceiling panel for pole profile
DBP130130WA 6286826 1 piece

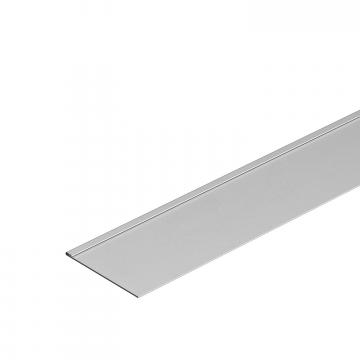

Partition
TW130130 6286835 1 m

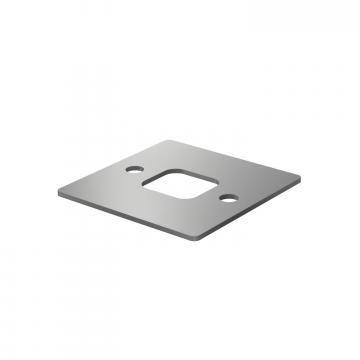

Rubber support
ISSGU130130 6286839 1 piece - Downloads
-
