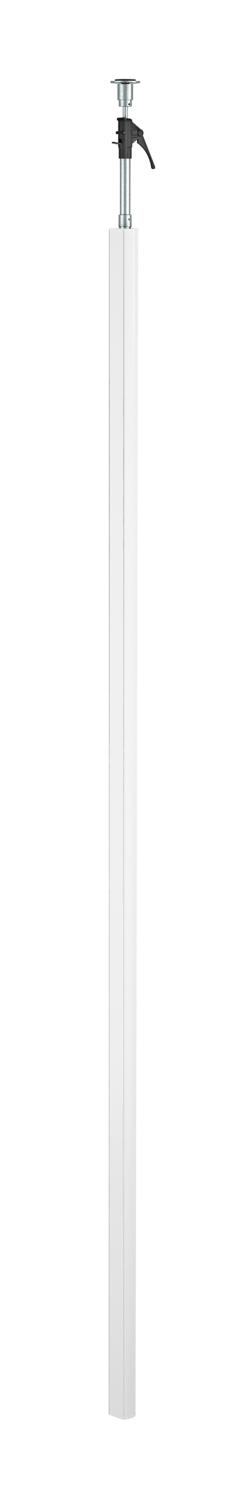

Service pole, type ISSRM45
Item no. 6290086 | EAN 4012195428091
- Product description
-
Product descriptionISS aluminium service pole with a 45 mm system opening.
Set consists of:
1 one-compartment pole with clamping fastening
Total length: 3,315 mm–3,480 mm
1 ceiling attachment with clamping device
1 aluminium cover
Length: 3,000 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices.
-
- Technical data
-
Technical data

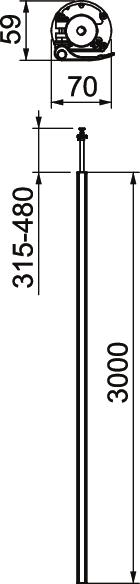

Adjustable yes Cable entry Top Ceiling mounting yes Changes according to location no Colour Pure white; RAL 9010 Continuous profile yes Cover width 45 mm Dimension 3000x70x59 Fastening type Tension Floor mounting yes Halogen-free yes Height 59 mm Height compensation, max. 480 mm Height compensation, min. 315 mm Length 3000 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole height, max. 3480 mm Pole height, min. 3315 mm Pole shape Round Pre-wired no Version for Single-sided Width 70 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Partition for WDK trunking, trunking height 40 mm
2371 40 6023096 2 m - Downloads
-
Data sheet ISSRM45RW / 6290086 , 0.18MB , pdfBrochure Service poles, office , 2.77MB , pdfEU declaration of conformity ISSRM45RW / 6290086 , 0.13MB , pdfUK Declaration of Conformity ISSRM45RW / 6290086 , 0.14MB , pdfMounting instructions Mounting instructions, service pole with clamping device Modul 45 , 0.86MB , pdfNo invitation to tender text is available for this product.
