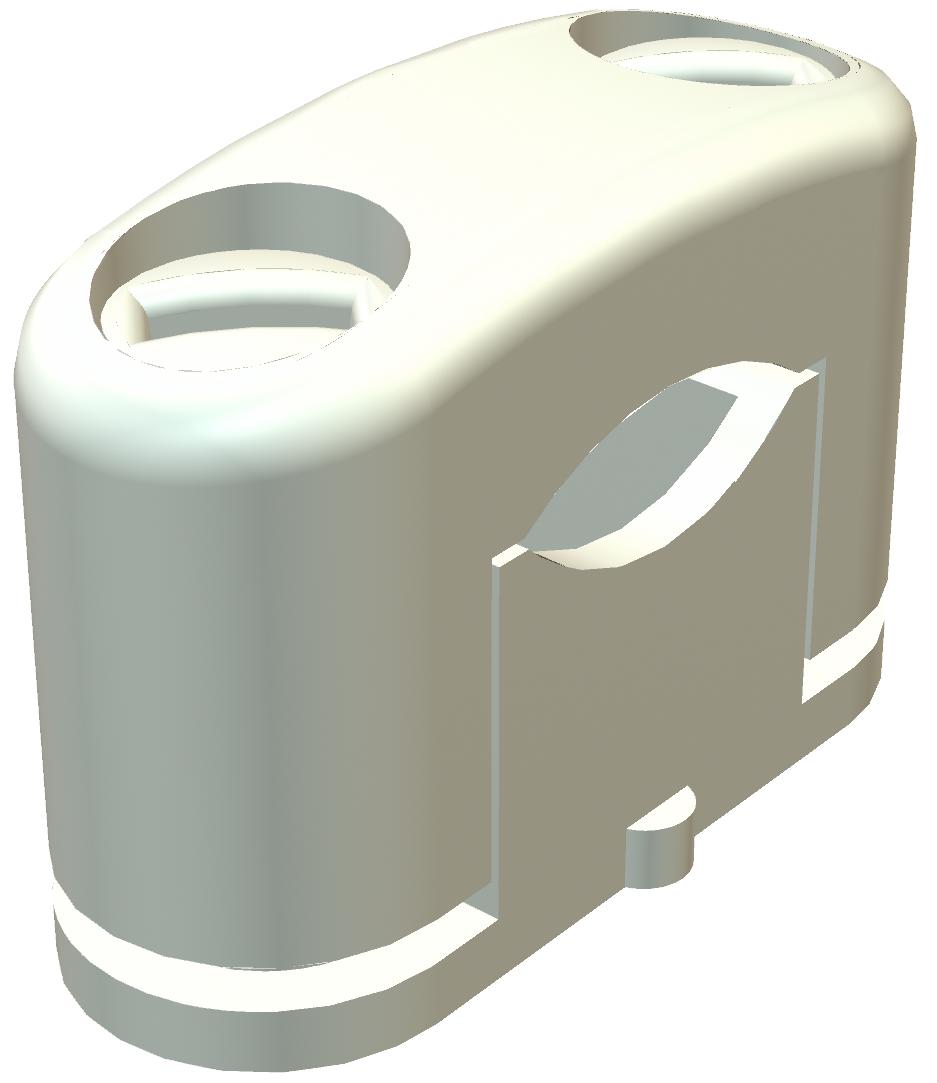

SOM clip, single
Item no. 2124173 | EAN 4012195196631
- Product description
-
Product descriptionWith plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.
-
- Technical data
-
Technical data

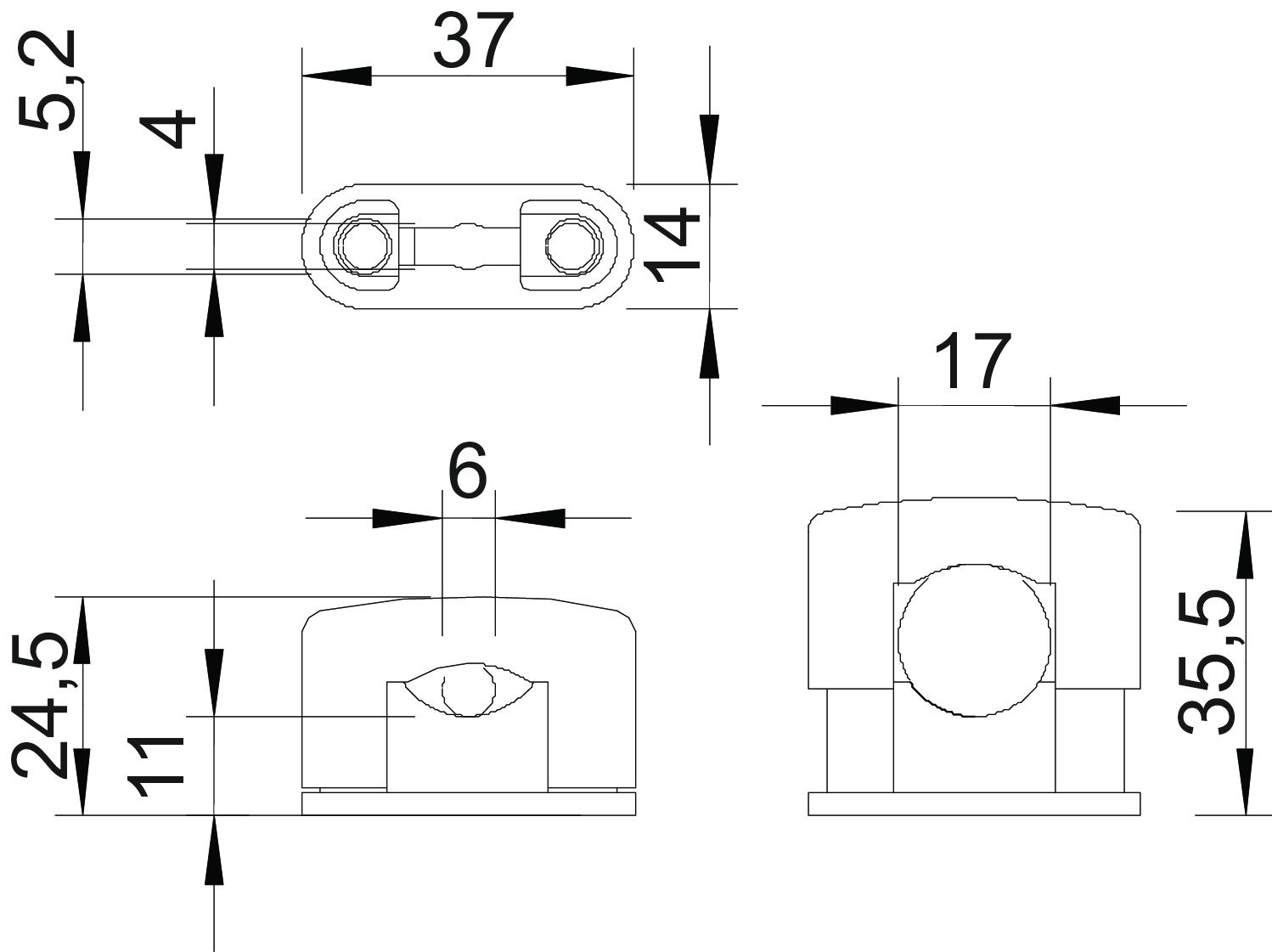

Bolt M6 x 18 Clamping range D, max. 17 mm Clamping range D, min. 6 mm Colour Light grey; RAL 7035 Dimension 6-17mm Dimension b 14 mm Dimension b1 4 mm Dimension b2 5,2 mm Dimension d max. 17 mm Dimension d min. 6 mm Dimension H1 11 mm Dimension H2 24,5 mm Dimension H3 35,5 mm Dimension L 37 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 3080 LGR / 2124173 , 0.21MB , pdfEU declaration of conformity 3080 LGR / 2124173 , 0.06MB , pdfREACH Declaration of conformity 3080 LGR / 2124173 , 0.12MB , pdfRoHS Declaration of conformity 3080 LGR / 2124173 , 0.12MB , pdf
