SOM clip, single, hardly flammable 32 | 45 | Light grey; RAL 7035
morepic-1 morepic-2

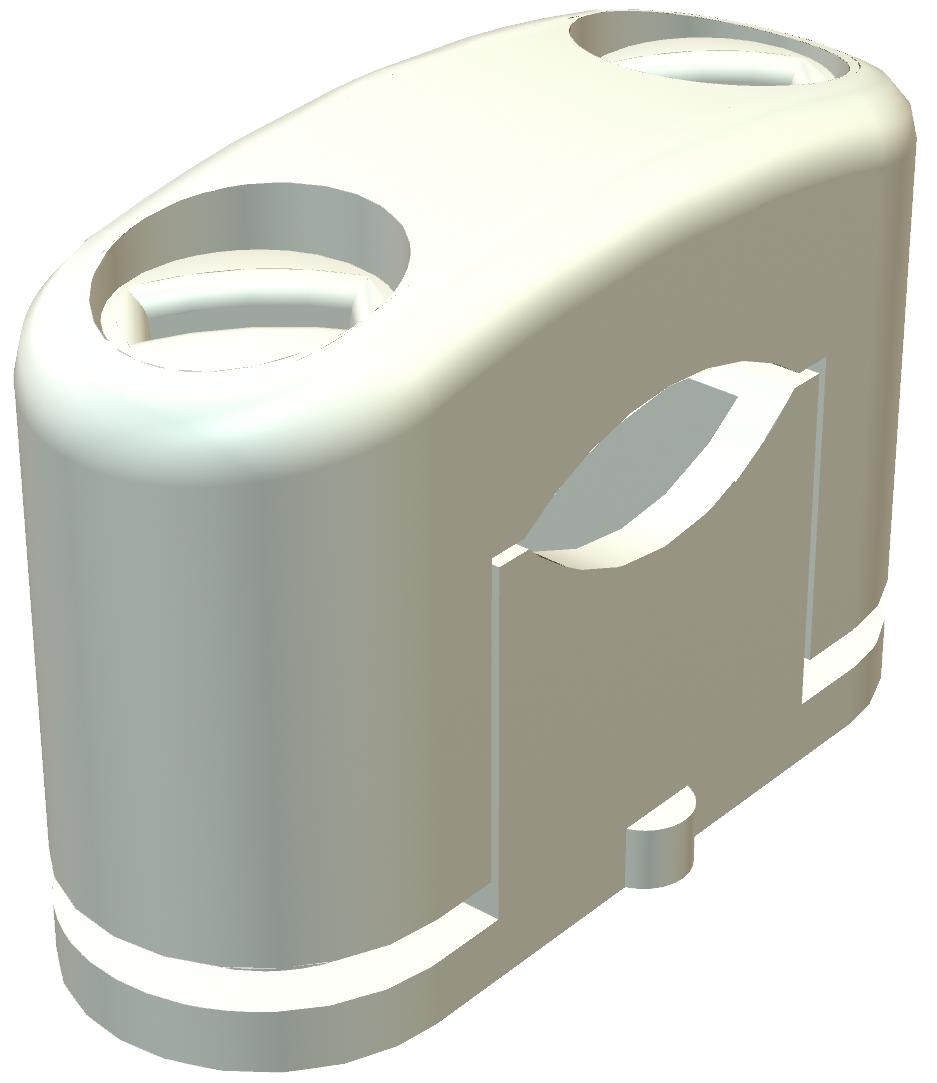

SOM clip, single, hardly flammable

Item no. 2124459 | EAN 4012195196815

2124459 / 3083 LGR
32 mm
45 mm
Light grey; RAL 7035
Product description
Product description
With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.

Hardly flammable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives

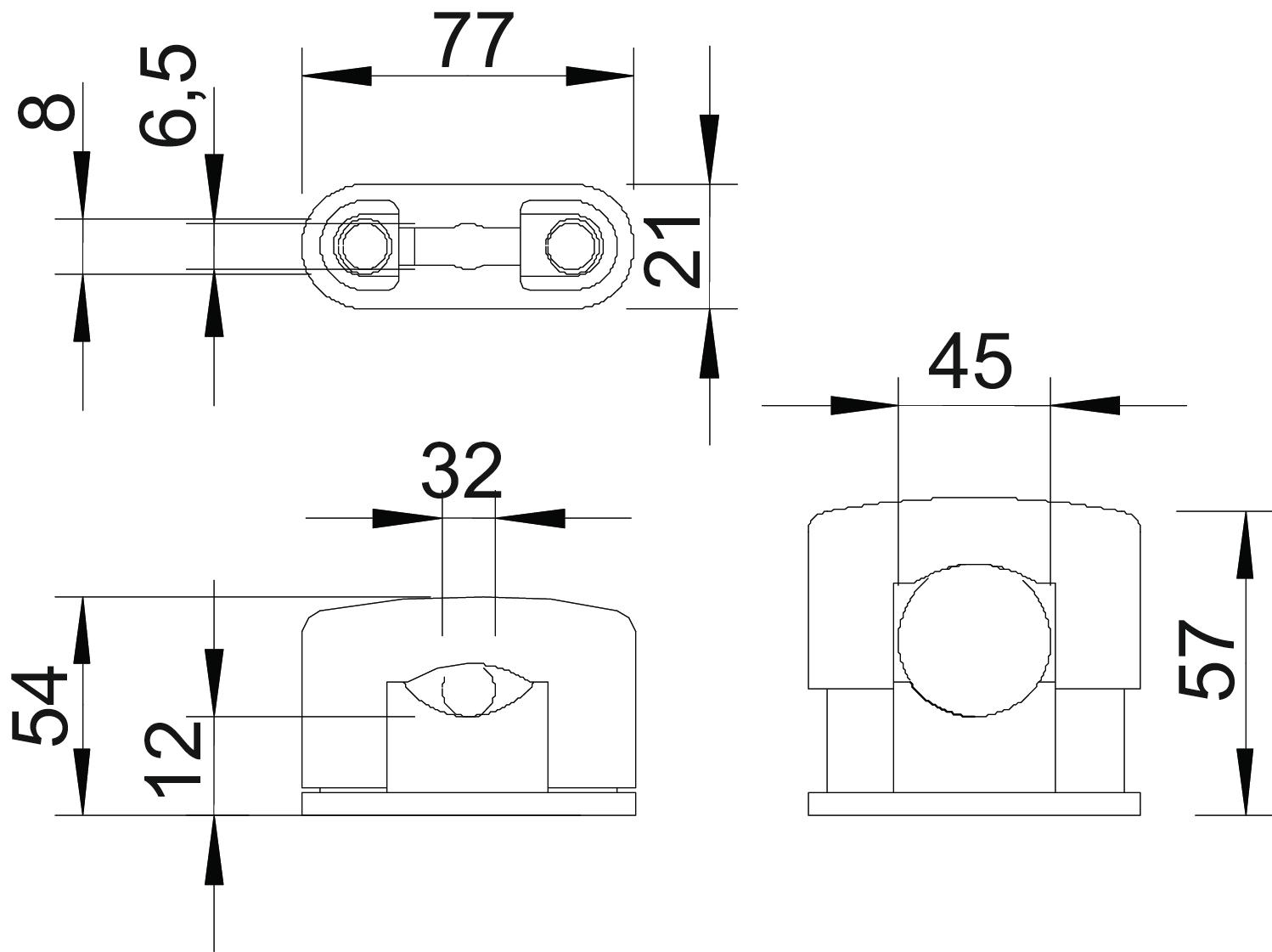

Technical data

Technical data

Bolt M8 x 40
Clamping range D, max. 45 mm
Clamping range D, min. 32 mm
Colour Light grey; RAL 7035
Dimension 32-45mm
Dimension b 21 mm
Dimension b1 6,5 mm
Dimension d max. 45 mm
Dimension d min. 32 mm
Dimension H1 12 mm
Dimension H2 54 mm
Dimension H3 57 mm
Dimension L 77 mm
Fastening type Screw hole
Halogen-free yes
Material Duroplast, Aminoplast
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area yes
UV-resistant no
Version for Closed
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
3083 LGR 32 mm 45 mm Light grey; RAL 7035 2124459
20 piece
