Spacer clip 733 ALU
Item no. 1362806 | EAN 4012196600151
- Product description
-

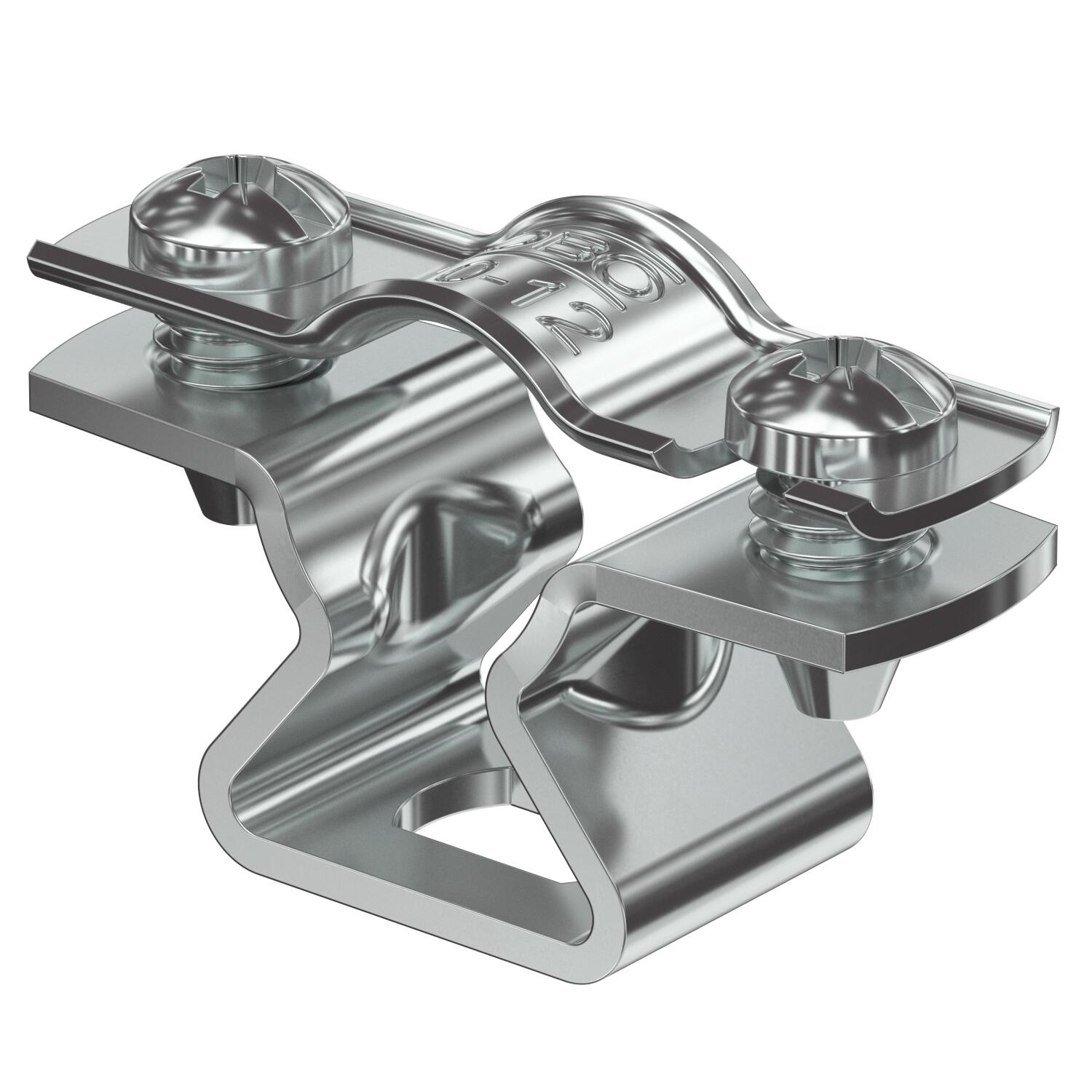

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking upper part. Fastening via slot. From the clip size of 20 suitable for installation with a nail device or bolt-firing device.
Approved for the maintenance of electrical function to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90 (except ALU).
-
- Technical data
-
Technical data

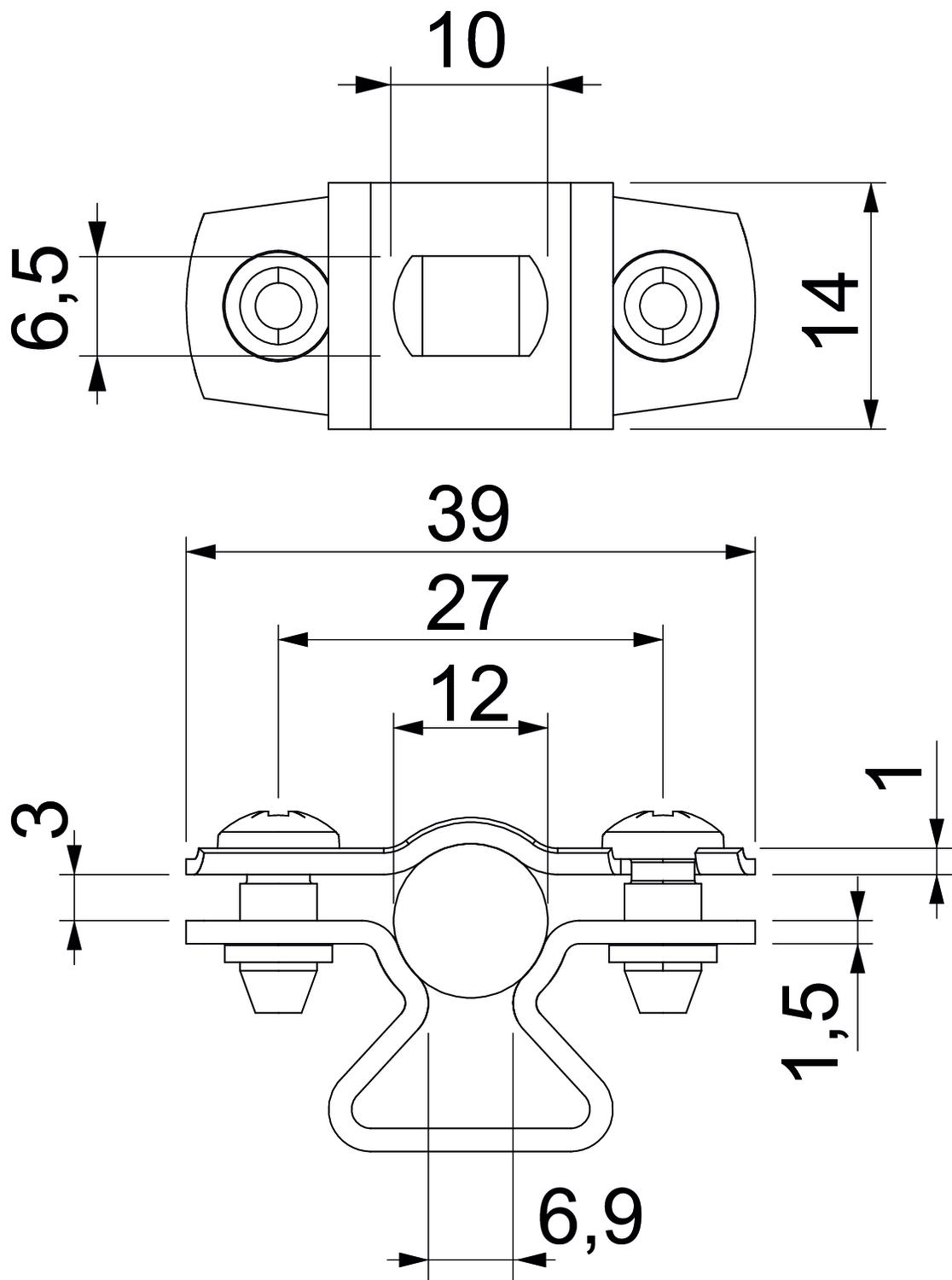

Clamping range D, max. 12 mm Clamping range D, min. 10 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,1341 kg CO₂e / 1 Piece Dimension 10-12mm Dimension A 39 mm Dimension B 27 mm Dimension b 14 mm Dimension D 12 mm Dimension d max. 12 mm Dimension d min. 10 mm Dimension L 10 mm Dimension s 6,9 mm Dimension t1 (mm) 1 Dimension t2 (mm) 1,5 Dimension x 3 mm Distance to the wall yes Fastening type Screw hole For diameter 10 - 12 Halogen-free yes Material Aluminium Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no UV-resistant yes Version for Closed - All types
-
All types
- Downloads
-
Data sheet ASL 733 12 ALU / 1362806 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity ASL 733 12 ALU / 1362806 , 0.13MB , pdfREACH Declaration of conformity ASL 733 12 ALU / 1362806 , 0.12MB , pdfRoHS Declaration of conformity ASL 733 12 ALU / 1362806 , 0.12MB , pdf
