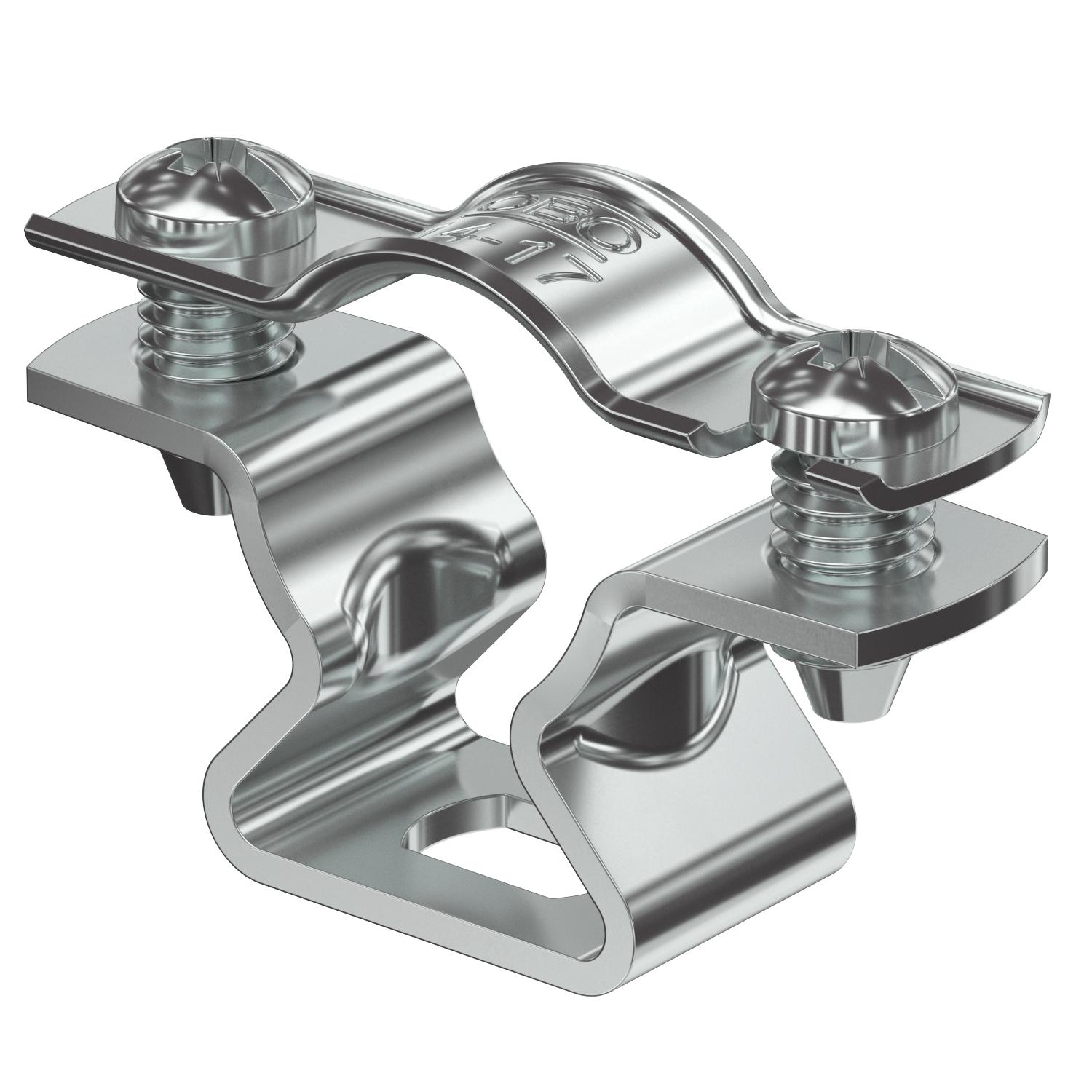

Spacer clip 733 ALU
Item no. 1362812 | EAN 4012196600168
- Product description
-
Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking upper part. Fastening via slot. From the clip size of 20 suitable for installation with a nail device or bolt-firing device.
Approved for the maintenance of electrical function to DIN 4102 Part 12, maintenance of electrical function classes E30 to E90 (except ALU).
-
- Technical data
-
Technical data

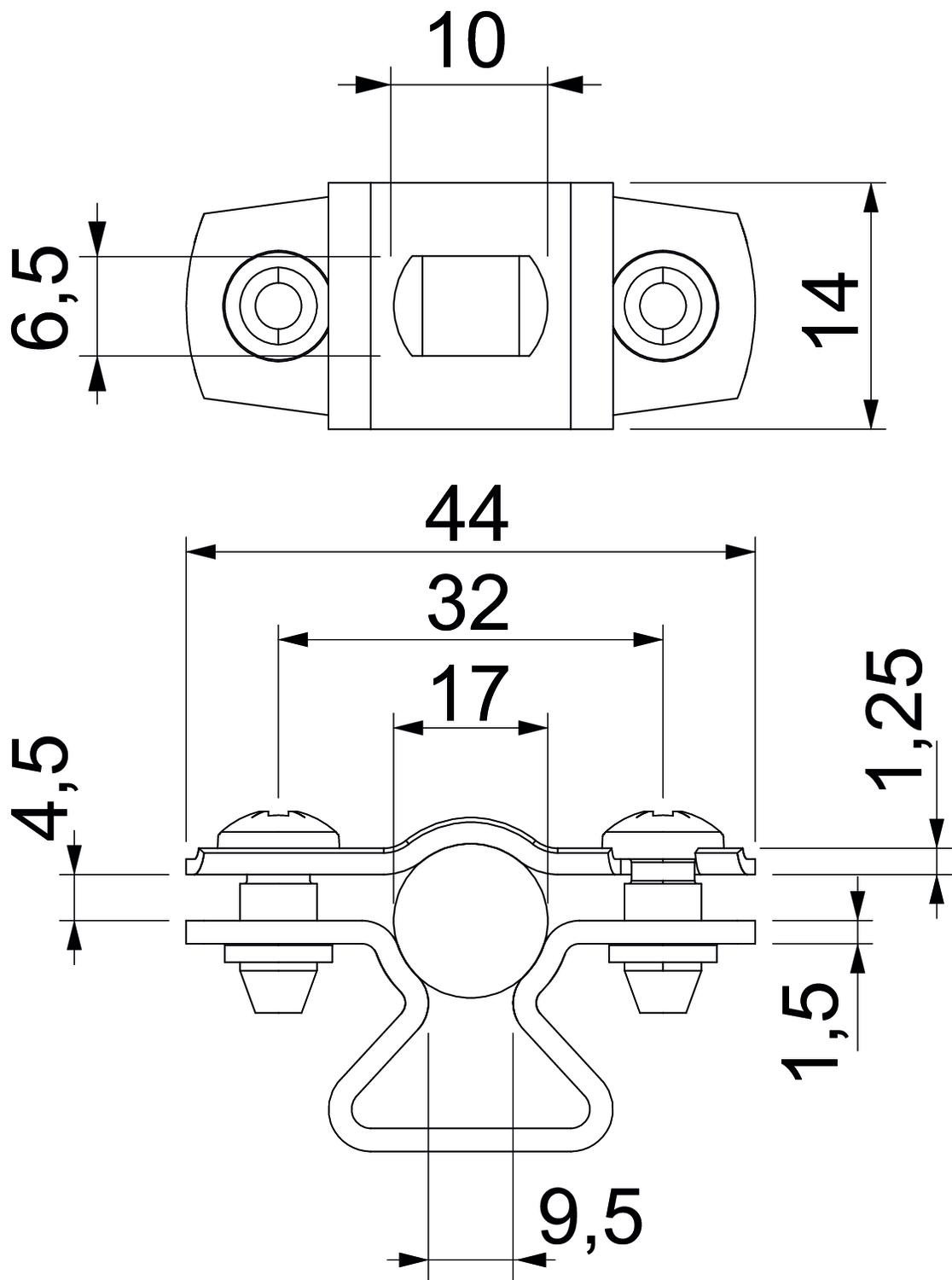

Clamping range D, max. 17 mm Clamping range D, min. 14 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,1496 kg CO₂e / 1 Piece Dimension 14-17mm Dimension A 44 mm Dimension B 32 mm Dimension b 14 mm Dimension D 17 mm Dimension d max. 17 mm Dimension d min. 14 mm Dimension L 10 mm Dimension s 9,5 mm Dimension t1 (mm) 1,25 Dimension t2 (mm) 1,5 Dimension x 4,5 mm Distance to the wall yes Fastening type Screw hole For diameter 14 - 17 Halogen-free yes Material Aluminium Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no UV-resistant yes Version for Closed - All types
-
All types
