Note: This article is discontinued.
You can find the current article here: 2003749 / Sprung cover, 60 mm
Sprung cover, 60 mm
Item no. 2003223 | EAN 4012195024194
- Product description
-
Product description

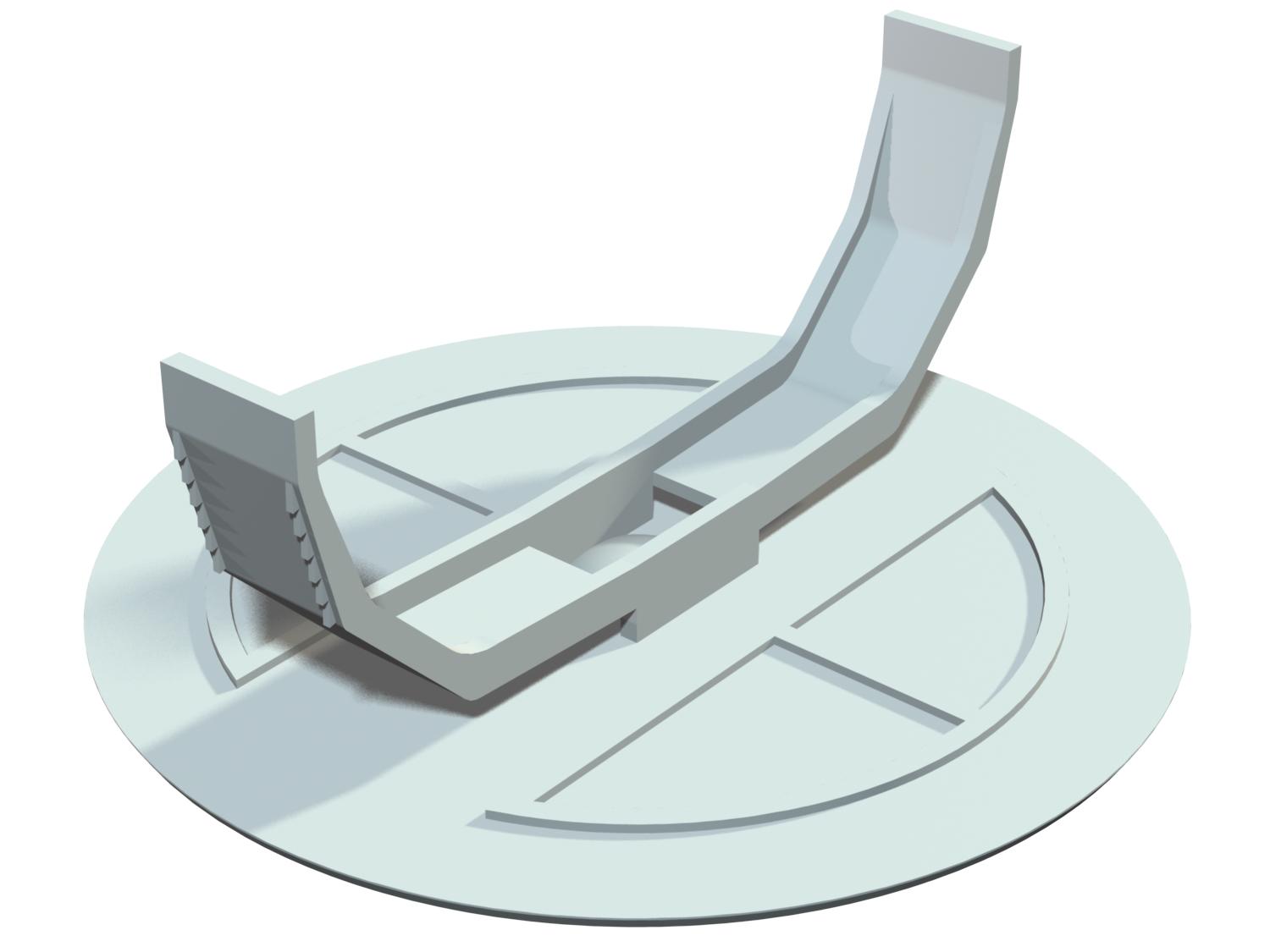

Sprung lid with centrally moulded, elastic spreading spring, for sockets with Ø 60 mm, lid edge is flush, surface is roughened.
-
- Technical data
-
Technical data
Colour White Diameter 60 mm Dimension Ø70mm Fastening type Spring cover Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Halogen-free yes Height 1 mm Material Polystyrene Sealable no Shape Round With bolts no - All types
- Downloads
-
Data sheet UG 60 FD / 2003223 , 0.27MB , pdfDeclaration of conformity UG 60 FD / 2003223 , 0.13MB , pdf
