Sprung cover, 60 mm
Item no. 2003749 | EAN 4012197246600
- Product description
-

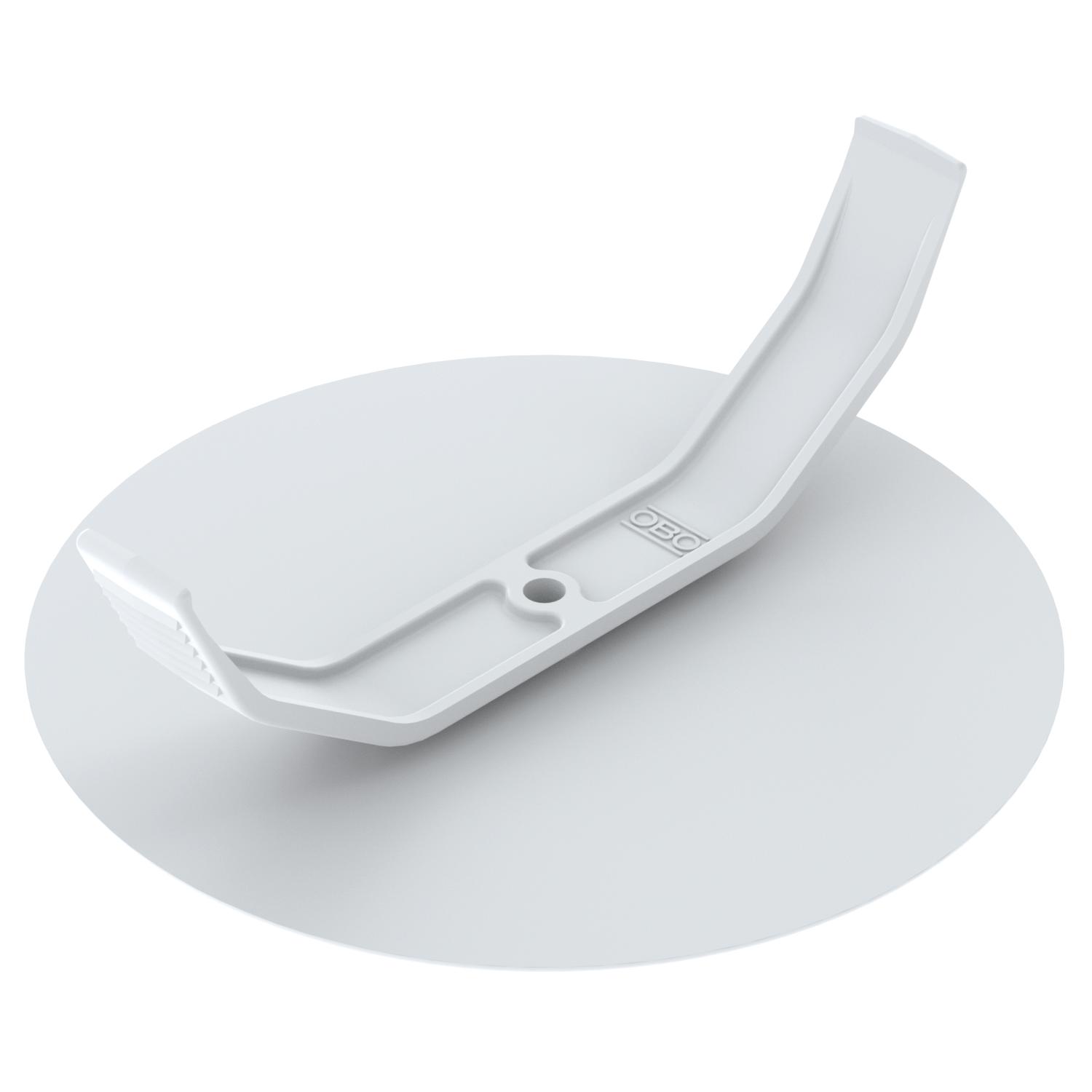

Product descriptionSprung lid with centrally moulded, elastic spreading spring, for sockets with Ø 60 mm, lid edge is flush, surface is roughened.
-
- Technical data
-
Technical data

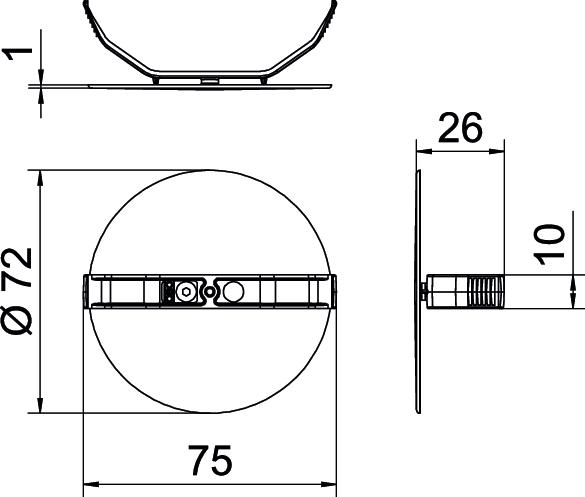

Colour White Diameter 72 mm Dimension Ø72 Fastening type Spring cover Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C Halogen-free yes Height 1 mm Material Polystyrene Shape Round - All types
- Downloads
-
Data sheet ZA 60-FD / 2003749 , 0.21MB , pdfEU declaration of conformity ZA 60-FD / 2003749 , 0.13MB , pdfMounting instructions Mounting instructions, UP flush-mounted device boxes , 12.98MB , pdf
