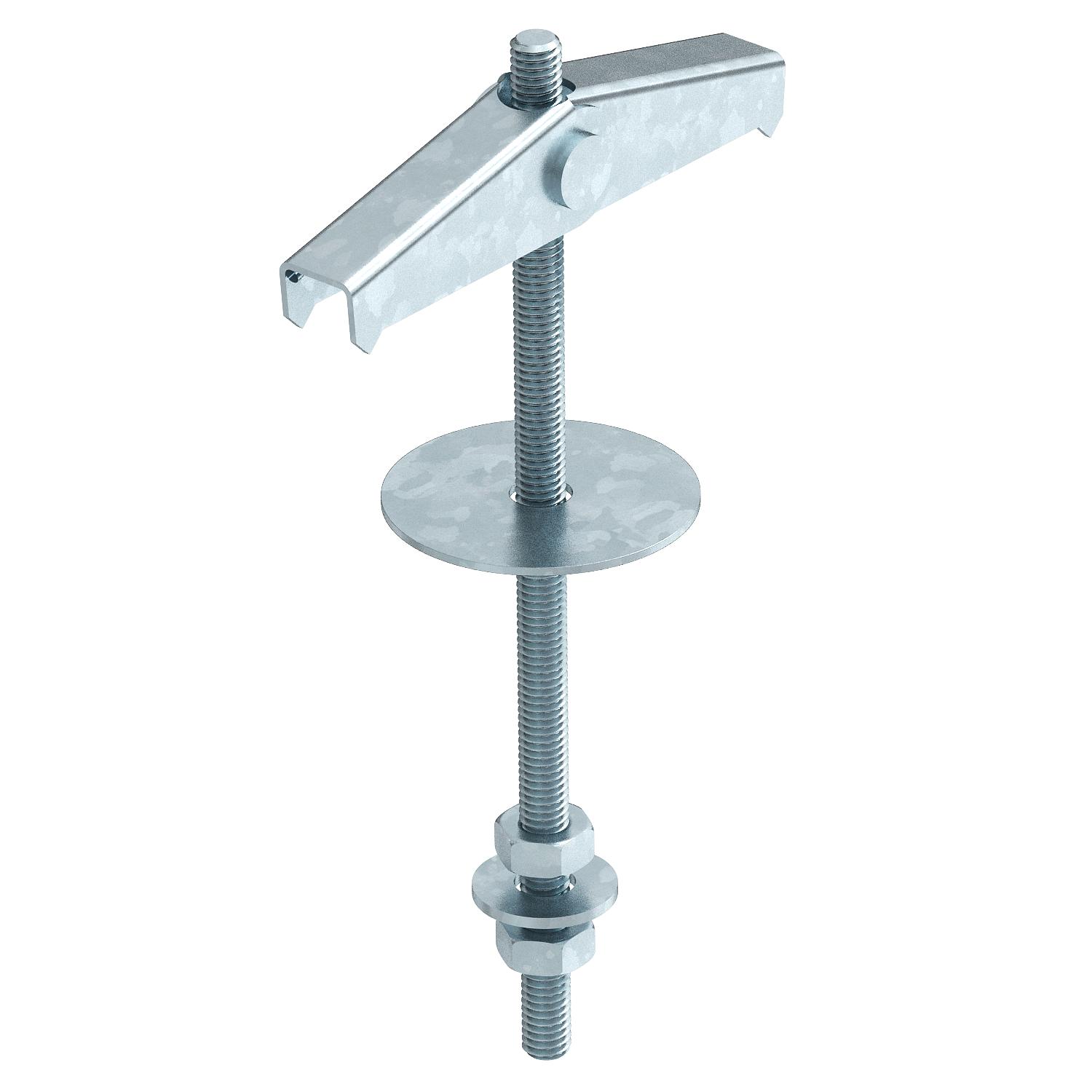

Sprung hinged anchor
Item no. 3481611 | EAN 4012195442936
- Product description
-
Product descriptionWith threaded rod, washer and hexagonal nut, steel axle.
-
- Technical data
-
Technical data

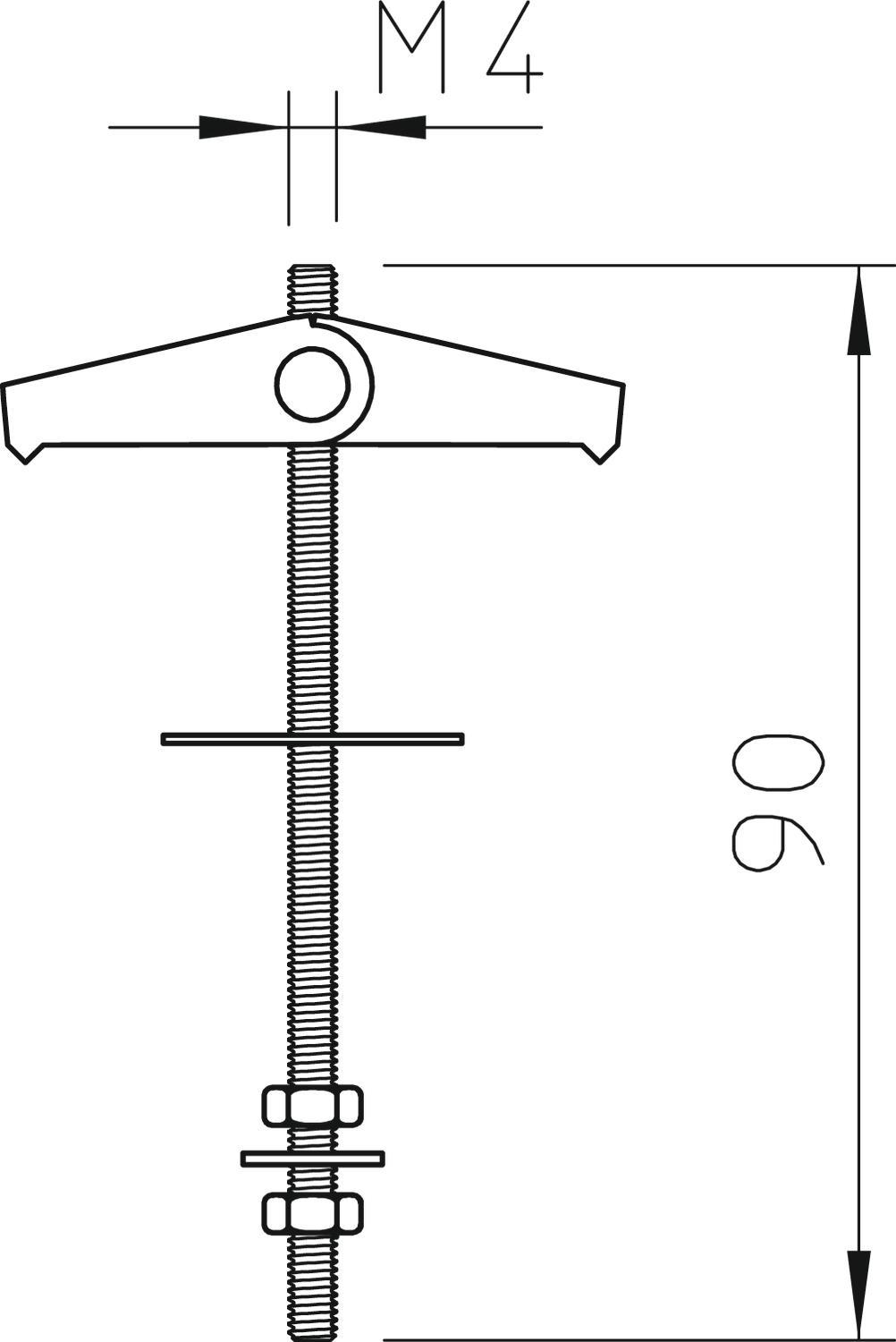

Breaking load 0,2 kN Dimension M4x95mm Drill hole 14 mm Drill hole diameter, min. 14 mm Length 90 mm Material Steel Minimum cavity depth 35 mm Surface Electrogalvanized Thread M4 Thread type Metric Version for With threaded shaft With washer yes - All types
- Downloads
-
Data sheet 450 M4x95 G / 3481611 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdf
