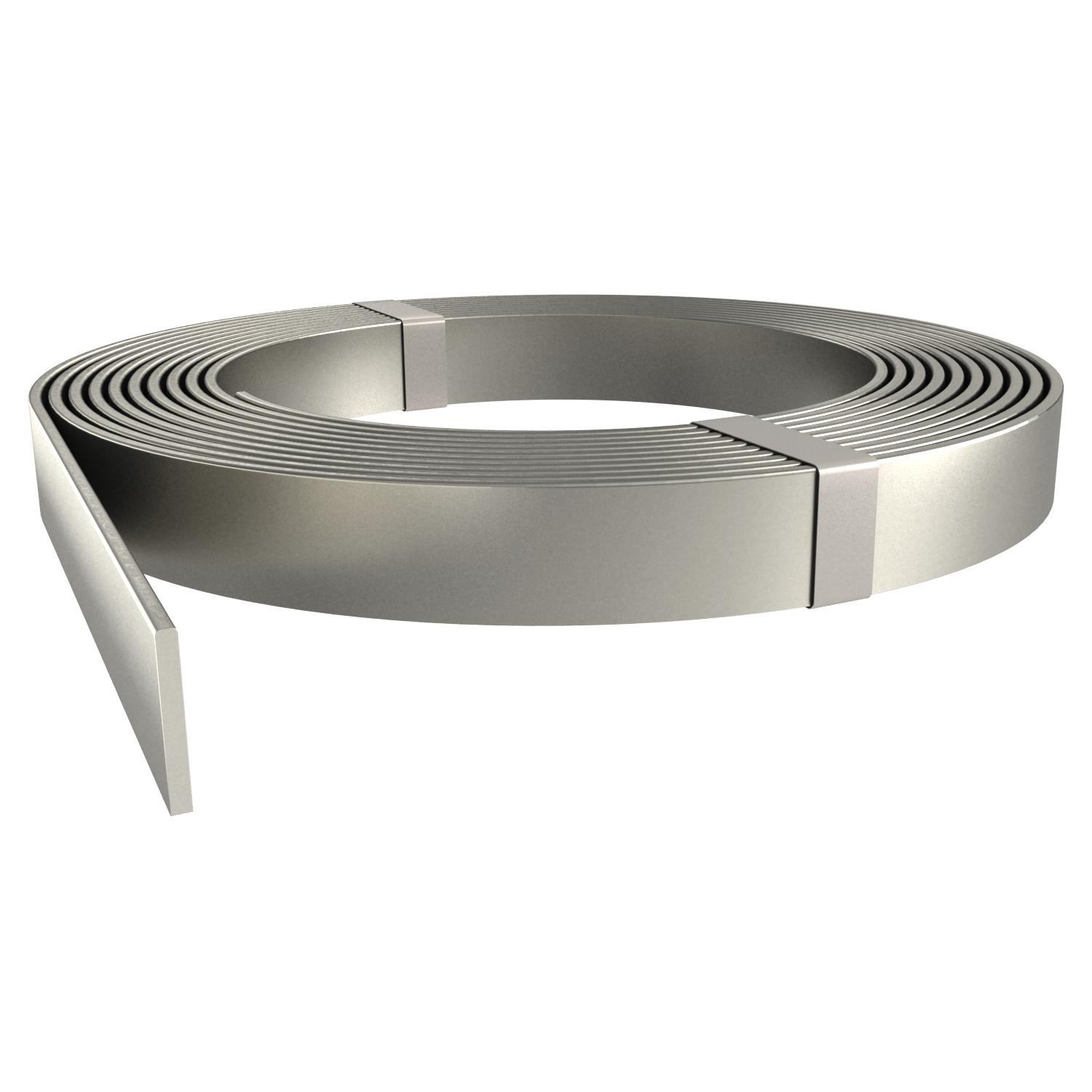

Stainless steel flat conductor

Item no. 5018501 | EAN 4012195800415

Item no. / Types

Width	30 mm

Height	3.5 mm

Product description

Product description

• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• For use in areas at risk of corrosion
• For lightning protection, earthing systems and ring equipotential bonding

Technical data

Technical data

Cross-section	105 mm²
Dimension	30x3,5mm
Length tolerance ±	5 %

Material	Stainless steel
Nomal ring (approx. m)	50
Normal ring (ca. kg)	42

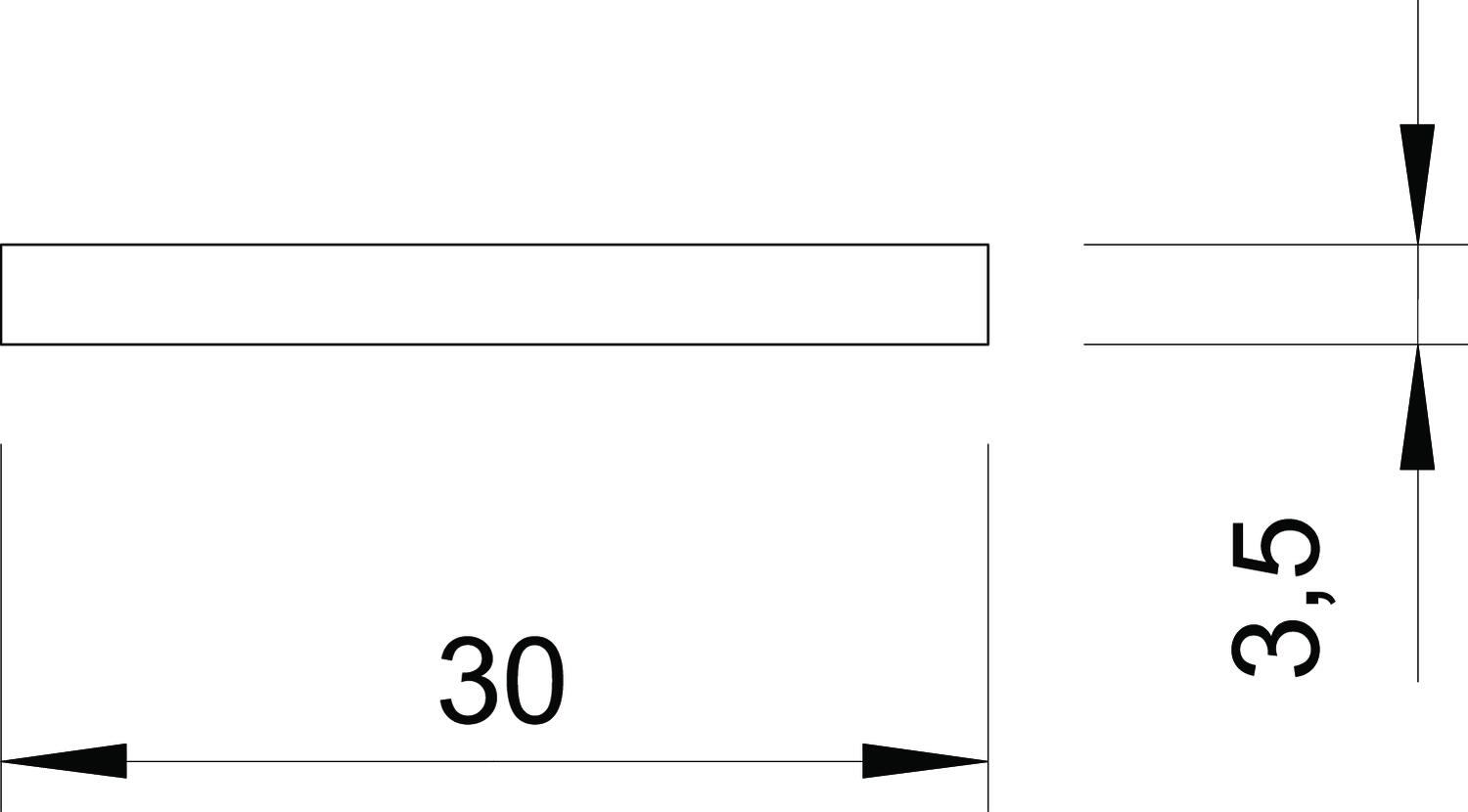

Dimensions

Dimension B	30 mm
Dimension H	3,5 mm

Height	3,5 mm
Width	30 mm

All types

All types

Types	Width	Height	Item no.	Quantity	SSU
5052 V2A 30X3.5	30 mm	3.5 mm	5018501	m	50 m
5052 V4A 30X3.5	30 mm	3.5 mm	5018706	m	50 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cross-connector with intermediate plate for Rd 8−10 mm A4	252 8-10 V4A	5312318	piece	10 piece
Cross-connector round/round without intermediate plate A4	253 8-10 V4A	5312582	piece	25 piece
Cross-connector for round conductors and flat conductors A4	252 8-10xFL30V4A	5312656	piece	10 piece

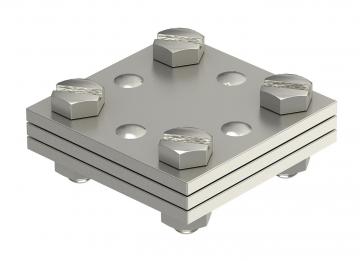

DIN cross-connector for flat conductor, with intermediate plate	256 DIN 30 V4A	5314616	piece	10 piece

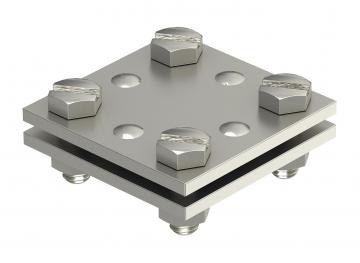

DIN cross-connector for flat conductor A2	256 A-DIN 30 VA	5314720	piece	10 piece
Sealing sleeve for flat conductors	DW FL30x3,5	2360043	piece	1 piece
Spacer	1811	5014018	piece	25 piece
Spacer	1811 L	5014026	piece	25 piece
Expansion strip for foundation earth electrode systems	1807 DB	5016160	piece	1 piece
