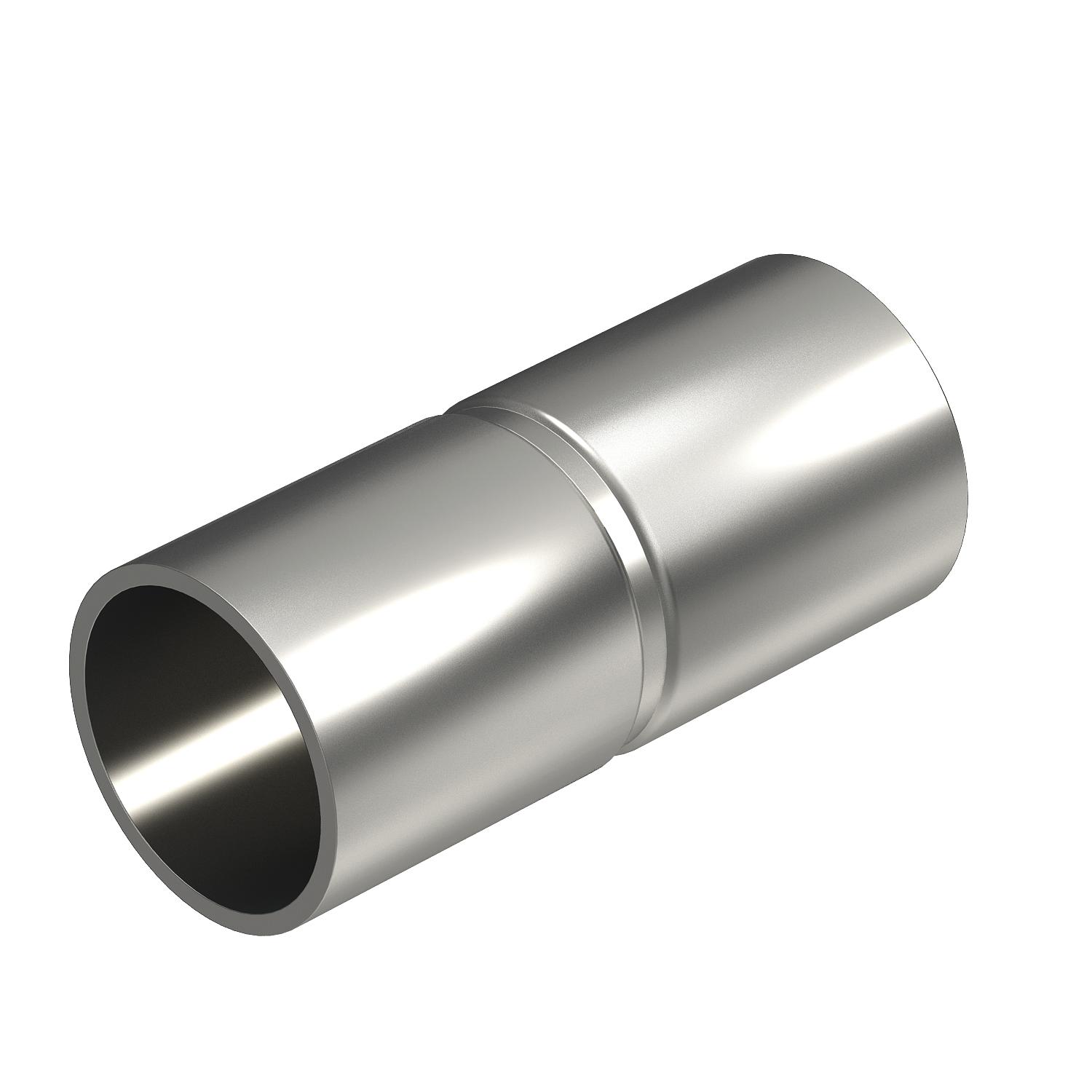

Stainless steel sleeve V4A

Item no. 2046772 | EAN 4012195924272

Product description
Product description
Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90

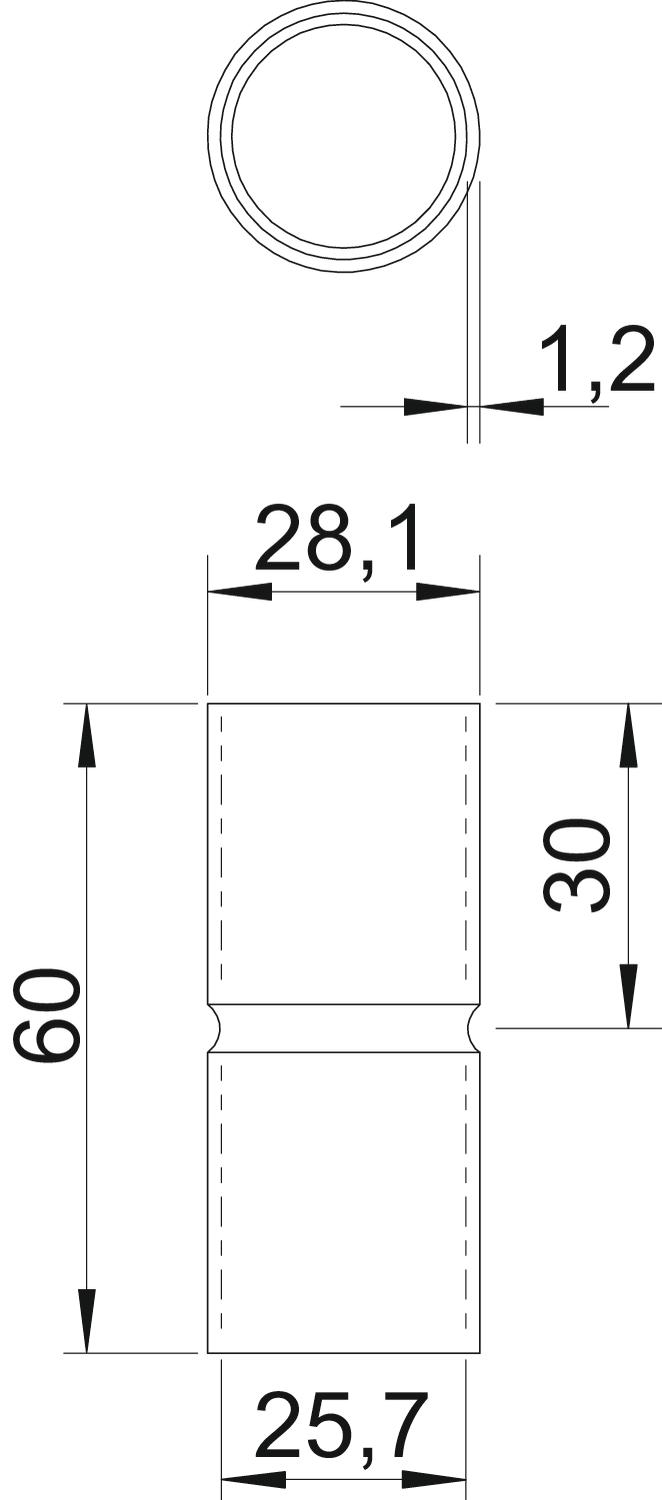

Technical data

Technical data

Brushed surface yes
Dimension Ø25mm
Dimension D 27,2 mm
Dimension d 25,2 mm
Dimension L 60 mm
Dimension l 30 mm
Dimension m (mm) M25
Dimension t 1 mm
for pipe diameter 25 mm
Halogen-free yes
Length 60 mm
Material Stainless steel
Permitted temperature range, max. 400 °C
Permitted temperature range, min. -45 °C
Polished surface no
Size 25
Surface Bright, treated
Two-part no
Version for Connector
With inspection opening and lid no
All types

All types

Types Dimension D Dimension d Item no. Quantity SSU
SV25W A4 27.2 mm 25.2 mm 2046772
15 piece
SV32W A4 34.7 mm 32.2 mm 2046773
15 piece
