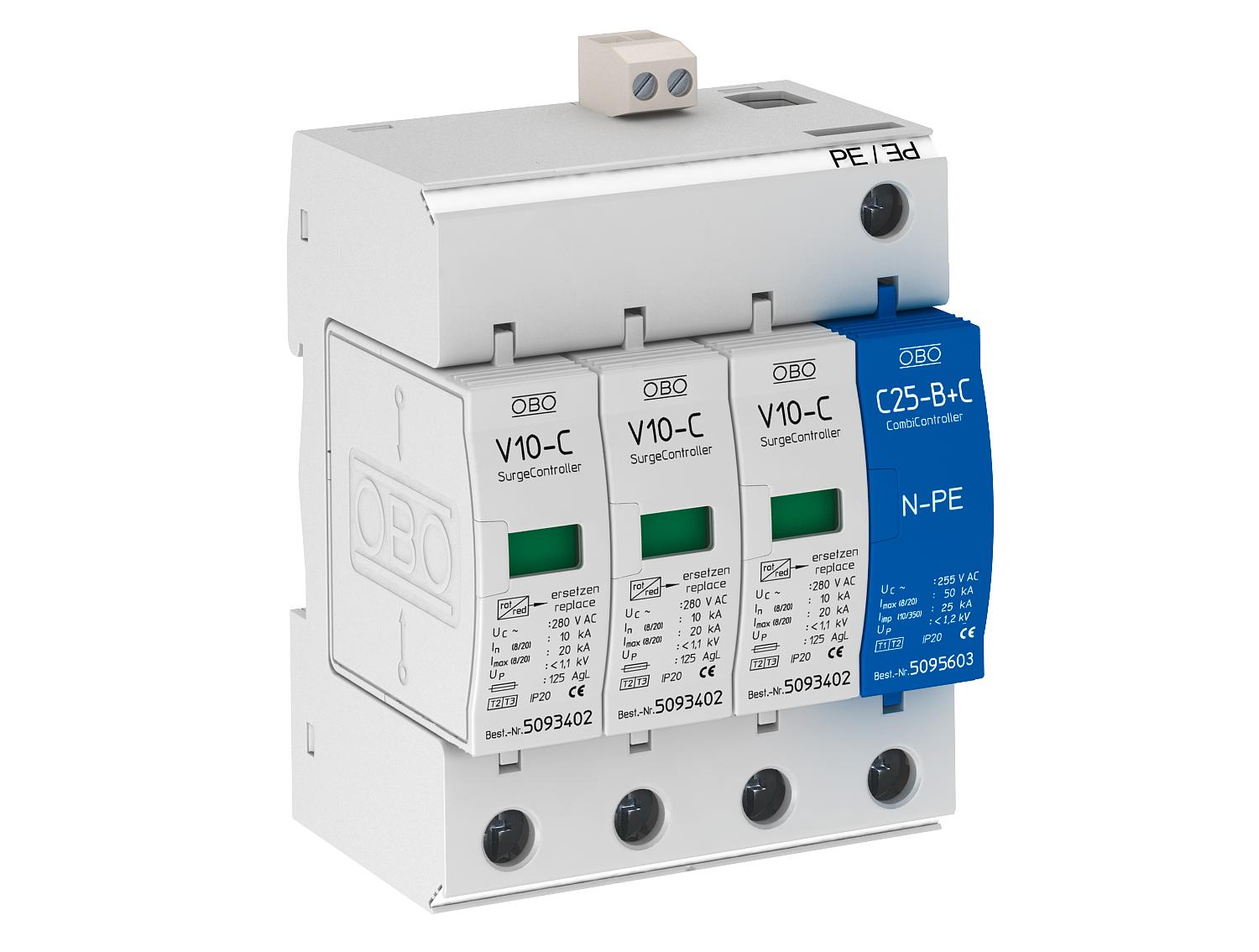

Surge arrester V10 3-pole + NPE with remote signalling 280 V
Item no. 5094931 | EAN 4012195363941
- Product description
-
Product description
Surge arrester, type 2+3
• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• Suitable for TN-S and TT network systems
• Incl. thermal and dynamic cut-off unit
• With visual display of defects
• Version ...-FS with remote signalling and potential-free NO contact for function monitoring
• High current conductivity and long service life
• Labelled connections
Application example: Residential buildings, single-family homes
-
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 40 kA Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 280V Installation type DIN rail 35 mm Lightning protection zone LPZ 1→3 Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage AC 280 V Maximum discharge current (8/20 μs) 20 kA Network form Other Nominal discharge current (8/20 µs) 10 kA Nominal discharge current (8/20 µs) [L-N] 10 kA Nominal discharge current (8/20 µs) [N-PE] 30 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3+N/PE Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 2+3 SPD to IEC 61643-1 Class II+III Test class, type 2 yes TN network form yes TN-C-S network form yes TN-S network form yes TT network form yes - All types
- Downloads
-
Data sheet V10-C 3+NPE+FS / 5094931 , 0.25MB , pdfREACH Declaration of conformity V10-C 3+NPE+FS / 5094931 , 0.12MB , pdfRoHS Declaration of conformity V10-C 3+NPE+FS / 5094931 , 0.12MB , pdfNo invitation to tender text is available for this product.
