Surge arrester V10 Compact 3+N/PE | 255 | IP20

Surge arrester V10 Compact

Item no. 5093381 | EAN 4012196862566

Item no. / Types	5093381 / V10 Compact2.0

Pole version	3+N/PE

Maximum continuous voltage AC	255

Protection rating	IP20

Product description

Product description

Surge protective device, compact module, type 2+3

• Surge protection in main and sub-distributions according to IEC 60364-4-44

• Arresting capacity up to 60 kA (8/20) in total

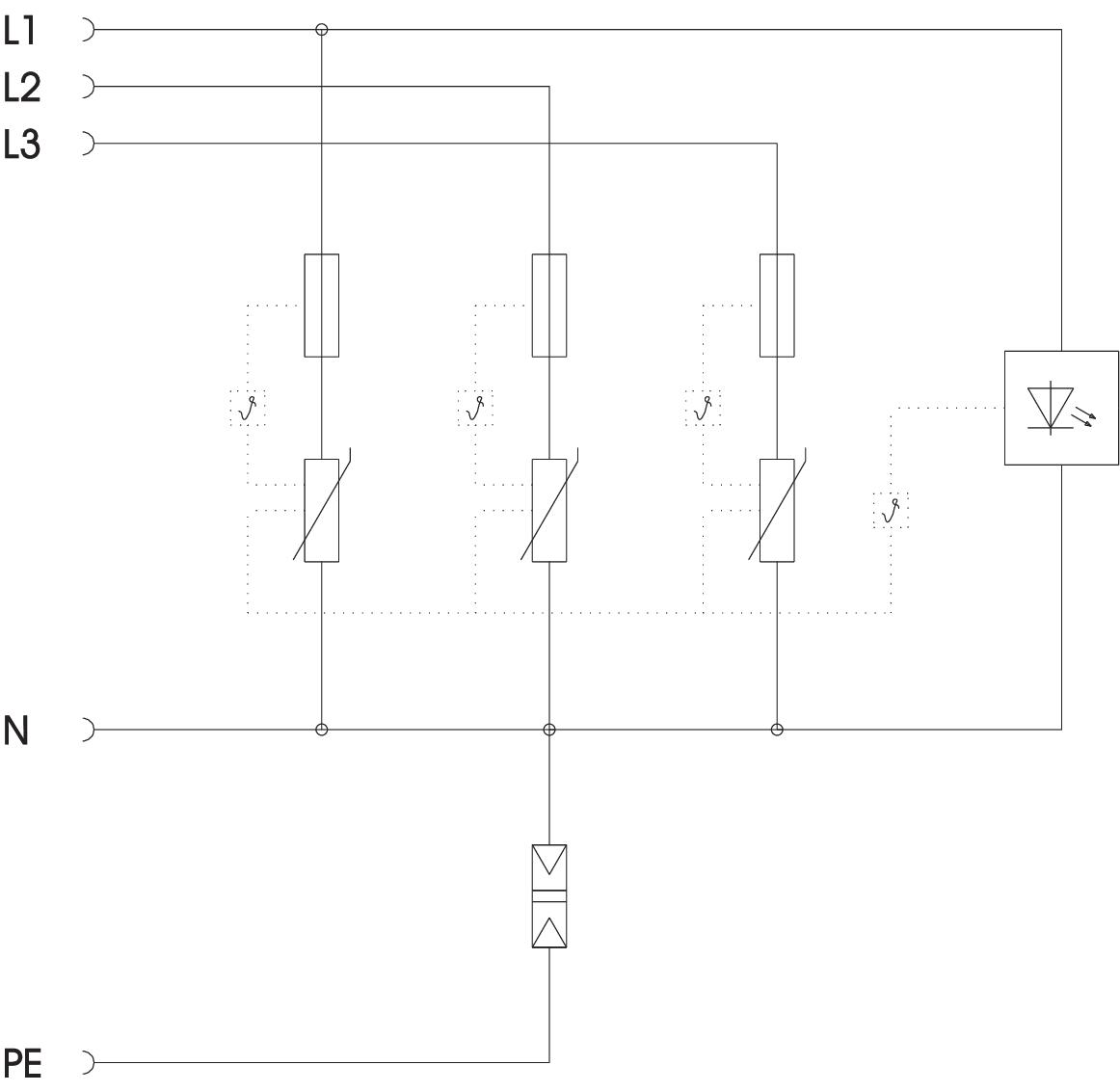

• Integrated 3+1 solution for TN and TT network systems on 45 mm module width

• High-performance varistor technology

• Including thermic and dynamic cut-off unit and visual status display

Application: Main and sub-distribution as well as device protection in three-phase current systems.

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	60 kA
Cable type for surge protection devices	Power cable AV
Conductor cross-section, flexible (fine-wire), max.	10 mm²
Conductor cross-section, flexible (fine-wire), max.	8 AWG
Conductor cross-section, flexible (fine-wire), min.	13 AWG
Conductor cross-section, flexible (fine-wire), min.	2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	10 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	8 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	13 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
Dimension	255V
Follow current quenching capacity (eff) [N-PE]	0,1 kA

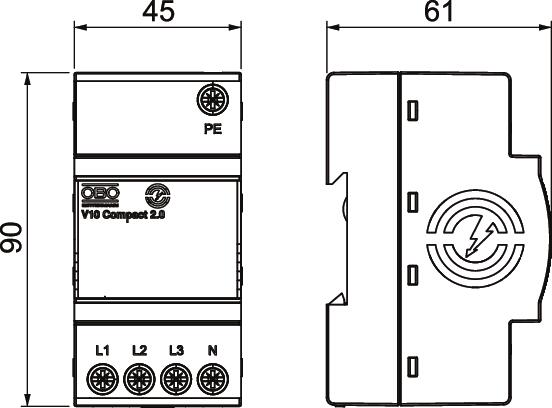

Height	90 mm
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
Length	60,5 mm
Lightning protection zone LPZ	1→3
Max. mains-side overcurrent protection	63 A gG
Maximum back-up fuse	63 A
Maximum continuous voltage AC	255
Maximum discharge current (8/20 μs)	20 kA
Maximum discharge current (8/20 μs) [L-N]	20 kA
Maximum discharge current (8/20 μs) [N-PE]	60 kA
Network form	All

Nominal discharge current (8/20 µs)	10 kA
Nominal discharge current (8/20 µs) [L-N]	10 kA
Nominal discharge current (8/20 µs) [N-PE]	40 kA
Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	70 °C
Operating temperature, min.	-40 °C
Pole number	4
Pole version	3+N/PE
Protection level [L-N]	≤1,1
Protection rating	IP20
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 2+3
SPD to IEC 61643-1	Class II+III
Test class, type 2	yes
Test class, type 3	yes
TN network form	yes
TN-C-S network form	yes
TN-S network form	yes
Torque	2 Nm
TT network form	yes
Version for	3+NPE
Width	45 mm
